Five-axis milling and turning machines are revolutionizing manufacturing by allowing complex parts to be made with high precision. But how do you choose the right one for your shop?
In this article, we'll explain what five-axis machines are and why they are essential for modern production. You'll also learn the key factors to consider when selecting the right machine for your needs.
There are two main types of five-axis machines: 3+2 machines and full simultaneous five-axis machines. Both offer unique advantages depending on the complexity of the parts you're making.
A 3+2 machine adds a rotary table to a three-axis machine, allowing you to machine five sides of a part. This setup is great for less complex parts or parts that don't require constant movement across all axes simultaneously. While it's simpler and more affordable, it doesn't offer the same capabilities as full five-axis machines.
Full five-axis machines provide simultaneous movement along all five axes—X, Y, Z, A, and B. This allows for intricate machining of complex parts with challenging geometries. It's ideal for industries that require high precision, such as aerospace, automotive, and medical devices.
● Tilt Table: The workpiece is mounted on a rotary table that tilts. This is common for machines that handle medium-sized parts, and it's ideal for making parts that don't need constant manipulation in all directions.
● Articulating Head: In this design, the cutting tool is mounted on a head that tilts and rotates. This allows for more flexibility, making it suitable for more intricate and precise cuts, especially on large, complex workpieces.
When selecting a five-axis machine, there are several critical features to keep in mind. Here's what you should consider:
● Machine's Rigidity and Stability: The machine needs to be sturdy to prevent vibrations during cutting, which can affect the precision of your work. A rigid frame ensures consistent and accurate machining.
● Spindle Speed and Power: A high spindle speed is essential for achieving smooth finishes and efficient cutting, especially with harder materials. Make sure the spindle power suits the materials and part complexity you'll be working with.
● Range of Motion and Axis Travel: A larger range of motion allows the machine to handle more complex parts. Check the X, Y, Z, A, and B axes' travel distance to ensure it fits the size and complexity of your parts.

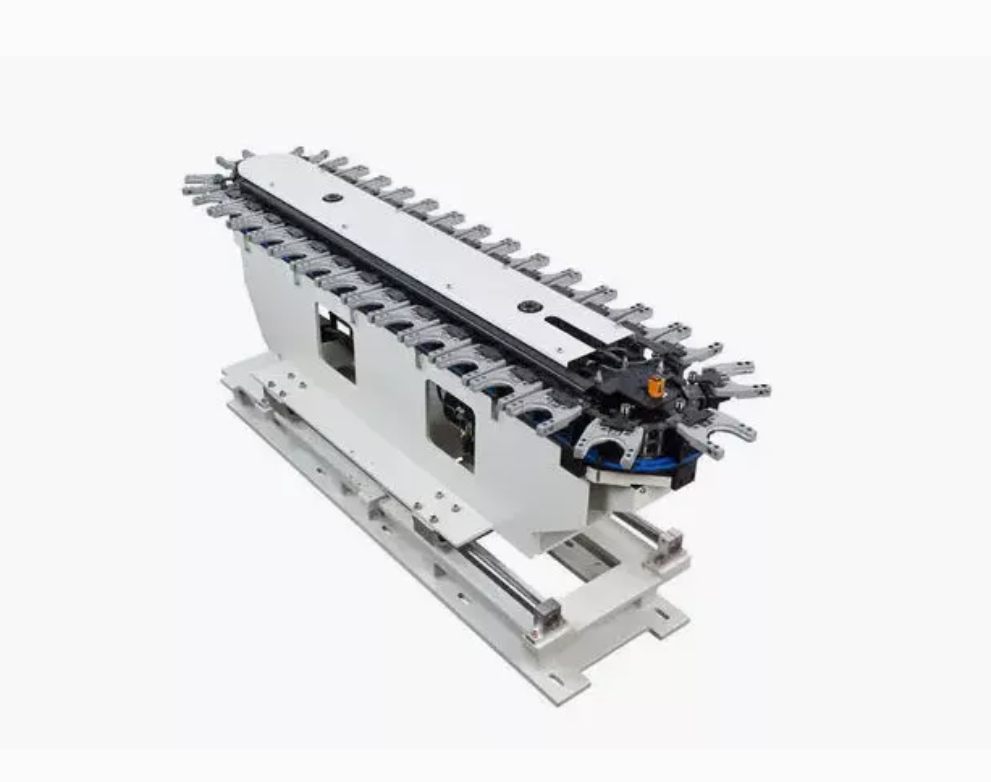

● Tool Capacity and Tool Changers: Having a sufficient number of tool positions allows for fewer tool changes during the machining process, which helps improve productivity. Consider the machine’s tool magazine capacity based on your needs.
● Precision and Repeatability Levels: The machine should have tight tolerances and high repeatability to ensure parts meet exact specifications every time. Look for machines known for their precision, especially if you're working with critical components.
● Choosing a Machine Based on Part Size and Weight: Larger and heavier parts require machines with more robust structures and higher load capacities. If your shop works on big parts, make sure the machine can handle them without losing precision.
● Implications for Machine Structure and Configuration: For large parts, you might need a gantry-style machine. This design ensures the machine has the stability and range necessary for heavy-duty operations.
● Material Compatibility (Metals, Composites, Plastics): Different materials require different cutting forces. Ensure the machine is suitable for the types of materials you intend to machine, whether it's metals like titanium, composites, or plastics.
● Importance of Material Handling in Five-Axis Operations: Some materials require special handling techniques, especially when machining delicate or highly reactive substances. Choose a machine that accommodates these needs, such as one with a robust cooling system or compatible fixtures.
● Tolerances and Repeatability Requirements: Parts that need high precision, such as those for the aerospace or medical industries, demand tight tolerances. Make sure the machine's precision and repeatability match the required standards.
● Factors That Affect Machining Precision: Several factors contribute to precision, such as the machine design, the quality of tools used, and the software controlling the machining process. A well-calibrated machine with quality software and tools will give you the best results.
The first step in choosing the right five-axis machine is understanding your shop's needs. Consider the following:
● Type of Parts Produced: What types of parts do you primarily manufacture? Aerospace components, automotive parts, or mold-making require different machine capabilities. Parts with complex geometries need more advanced features, such as full simultaneous five-axis control.
● Production Volume: Do you produce short runs or mass production? For short runs, a machine with fast setup times and quick changeovers may be more suitable. For mass production, you’ll need a machine capable of maintaining high-speed, consistent output over longer periods.
● Required Production Speed and Turnaround Time: Think about how fast your shop needs to produce parts. Machines with higher speeds and quick cycle times are important when fast delivery is crucial, especially for time-sensitive industries.
Five-axis machines can range in price depending on the type, features, and automation. Here's what you should keep in mind when budgeting:
● Factors Influencing Cost: The price is affected by machine type, automation features, brand reputation, and additional capabilities. Machines with advanced features like automated tool changers or high-speed spindles tend to cost more.
● How to Balance Performance and Price: It's important to balance performance requirements with your budget. While advanced machines offer better performance, they might not be necessary if your parts don't require high precision or complexity.
● Cost of Ownership: Don't forget about ongoing costs like maintenance, tooling, and software updates. These can add up over time, so choose a machine with a lower cost of ownership if long-term expenses are a concern.
When choosing between vertical and horizontal configurations, consider these factors:
● Advantages and Disadvantages of Each Configuration:
○ Vertical Five-Axis Machines: These machines are easier to set up and often provide better visibility for smaller parts. However, they may not be the best choice for large, heavy workpieces.
○ Horizontal Five-Axis Machines: Ideal for large parts, horizontal machines typically offer better chip flow and can handle heavier workloads. They also provide easier access for machining parts from multiple angles but can be more expensive and complex.
● How the Choice Impacts Production: Vertical machines are great for small to medium parts, allowing quick setups and good accessibility. Horizontal machines excel in handling larger parts and improving workpiece accessibility, but they require more space and may have higher initial costs.
In traditional three-axis machines, the cutting tool moves along three linear axes—X, Y, and Z. This is great for simpler parts but becomes limiting when dealing with complex geometries.
Five-axis machines, on the other hand, add two rotary axes—A and B—giving the tool the ability to move in all five directions. This enables the machining of more intricate shapes in a single setup, reducing the need for repositioning the workpiece.
When parts have complex angles or intricate features, five-axis machines provide more flexibility. For example, in industries like aerospace or automotive, parts often have curves and precise angles. A five-axis machine can access these hard-to-reach areas with a single setup, saving time and improving the part's quality.
One of the biggest benefits of five-axis machining is the significant reduction in setup times. By handling all sides of a part in one go, you eliminate the need for multiple setups, which can be time-consuming and prone to errors.
Five-axis machining allows tools to be oriented more precisely, providing smoother finishes and better control over cutting. This ability to work from multiple angles ensures better accuracy, even with delicate or detailed parts.
Fewer setups and smoother operations lead to faster cycle times. With less time spent on re-positioning and correcting errors, five-axis machines increase overall productivity. Whether you're producing prototypes or high-volume parts, these machines can make the process faster and more efficient.
Regular maintenance is crucial to keeping your five-axis machine running smoothly:
● Regular Maintenance Schedules: Follow a maintenance routine that includes:
○ Calibration: Ensures the machine stays aligned and maintains high precision.
○ Cleaning: Prevents debris buildup that can impact machine performance.
○ Lubrication: Reduces friction and wear on critical moving parts.
● Troubleshooting Common Issues: Regularly check for common problems like misalignment, tool wear, or vibration. Early detection of these issues can save time and prevent more serious damage.
Good technical support is essential for minimizing machine downtime:
● Vendor Support: Expect support from the vendor, including:
○ Training: Helps operators become proficient in using the machine.
○ After-Sales Service: Provides troubleshooting and repairs when needed.
● Spare Parts and Software Updates: Ensure the vendor provides easy access to spare parts and regular software updates. This ensures continued performance and minimizes disruptions in production.
When choosing the right five-axis machine, consider part size, precision, material type, and budget. Consult experts and conduct a cost-benefit analysis to make an informed decision. Future trends in five-axis machining include automation and AI integration, which will enhance efficiency and precision.Welcome to Oturn Machinery Consulting Products！
A: In 3+2 machining, the machine uses three linear axes and two rotary axes but not simultaneously. Full simultaneous five-axis machining allows all five axes to move together, enabling more complex and precise cuts.
A: Yes, five-axis machines are versatile and can handle a wide range of parts, especially those with complex geometries or intricate features.
A: Automation improves machine efficiency by reducing manual intervention, increasing production speed, and allowing for longer, unattended operations.
A: Setup time can vary, but modern five-axis machines with automation features and efficient tooling systems can reduce setup times significantly.
