Choosing between vertical and horizontal CNC machining centers in 2026 is less about machine layout and more about how each platform affects precision, throughput, automation, and operating cost. For shops producing tight-tolerance parts, the right choice can influence chip evacuation, setup time, spindle utilization, and the ease of scaling unattended production. This comparison explains where vertical machines still offer clear advantages, where horizontal models justify their higher investment, and how current labor and automation pressures change the decision. By the end, you should have a practical framework for matching machine orientation to your part mix, volume, and quality requirements.
As you plan your manufacturing investments for 2026, selecting the right CNC machining center becomes a critical decision that directly impacts your production efficiency. The manufacturing landscape is evolving rapidly, forcing you to reevaluate how you produce precision parts. You can no longer rely on outdated equipment if you wish to remain competitive in a global market that demands faster turnaround times and flawless execution.
By 2026, the manufacturing industry is projected to face a critical shortage of over 400,000 skilled machinists. This severe labor deficit requires you to rely more heavily on automated systems rather than manual operators. Modern CNC machining centers now integrate robotic part loaders, automated guided vehicles (AGVs), and pallet pools that can increase unattended spindle uptime by up to 35%. You must understand how different machine orientations accommodate these automation trends to keep your production lines running without constant human intervention. For instance, integrating a collaborative robot (cobot) with a machining center demands seamless physical access to the work envelope, which varies drastically between vertical and horizontal setups. Evaluating these automation capabilities is no longer optional; it is a fundamental requirement for maintaining your output volumes.
The demand for complex components in the aerospace, medical, and electric vehicle sectors requires you to achieve unprecedented levels of accuracy. Industry standards in 2026 routinely demand geometric tolerances as tight as ±0.0001 inches (2.54 microns). You must select equipment that not only meets these micro-machining thresholds but also maintains absolute repeatability across production runs of 5,000 to 10,000 units. Furthermore, as you transition toward machining tougher alloys like Inconel and aerospace-grade titanium, your equipment must possess superior structural rigidity to prevent vibration and tool deflection. Your choice of machining center architecture plays a foundational role in meeting these rigorous specifications, directly influencing both your scrap rates and your ability to pass strict quality control audits.
To make an informed equipment investment, you must fundamentally understand how spindle orientation affects your manufacturing capabilities. The distinction between vertical and horizontal architectures dictates how your cutting tools interact with the workpiece, ultimately determining your operational efficiency.

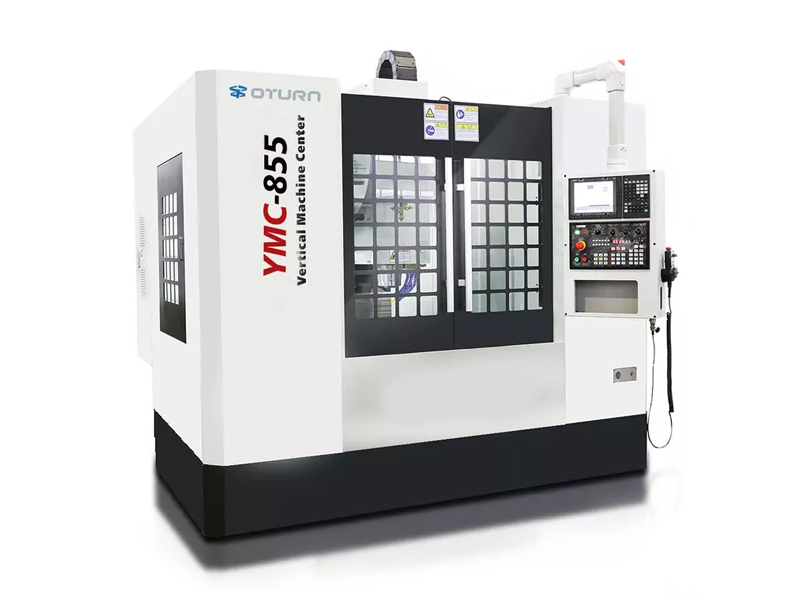

In a Vertical Machining Center (VMC), the spindle approaches the workpiece from above, moving along the Z-axis. This setup gives you excellent visibility of the cutting process, making it easier to program and set up. However, this top-down approach allows metal chips to pool inside the cutting zone. Conversely, a Horizontal Machining Center (HMC) features a spindle mounted parallel to the floor. This horizontal orientation allows gravity to pull chips away from the workpiece, preventing the spindle from recutting chips—a primary cause of premature tool wear and poor surface finishes.
Feature | Vertical Machining Center (VMC) | Horizontal Machining Center (HMC) |
|---|---|---|
Spindle Orientation | Vertical (Top-down) | Horizontal (Side-entry) |
Chip Evacuation | Poor to Moderate (Pooling risk) | Excellent (Gravity-assisted clearance) |
Standard Axes | 3 to 4 | 4 to 5 |
Typical Footprint | Compact (approx. 60-80 sq ft) | Large (approx. 120-160 sq ft) |
Primary Application | Flat plate work, single-sided parts | Complex, multi-sided prismatic parts |
When evaluating these machines for precision parts, you must weigh upfront costs against long-term throughput. VMCs typically require a lower initial investment, often ranging from $60,000 to $120,000 for a standard 3-axis model. However, producing a multi-sided part on a VMC may require three to four manual repositioning steps, introducing human error and alignment discrepancies. HMCs demand a higher capital expenditure, generally starting between $250,000 and $400,000. Despite this cost, HMCs utilize "tombstone" fixturing blocks that allow you to mount multiple parts simultaneously. Combined with integrated rotary tables, this allows you to machine up to four sides of a part in a single setup. This capability can reduce your total cycle times by 25% to 30% and significantly improve part-to-part consistency, easily justifying the initial premium for high-volume producers.
Selecting the ideal CNC machining center requires you to align your specific production goals with the mechanical strengths of the equipment. You must systematically evaluate your operational constraints and facility parameters before committing to a purchase that will define your capabilities for the next decade.
Begin by analyzing your average production volumes and part complexities. If you primarily manufacture flat, single-sided components in batches of under 500 units per month, a VMC will serve your needs efficiently and cost-effectively. However, if your contracts require continuous runs of complex, multi-sided prismatic parts exceeding 2,000 units monthly, you should prioritize an HMC. Next, conduct a time study on your current manual setups. If part handling and repositioning consume more than 20% of your total production time, transitioning to an HMC with a dual-pallet changer will drastically improve your operational efficiency. You must also audit your operators' skill levels; VMCs are generally more intuitive for beginner machinists, while HMCs require a deeper understanding of multi-axis programming and complex workholding strategies.
Your final decision must account for the Total Cost of Ownership (TCO) over a standard 7-to-10-year depreciation cycle. Calculate your facility's spatial constraints carefully, as HMCs generally require 40% to 50% more floor space than comparable VMCs. With industrial floor space costs averaging $15 to $25 per square foot annually, this larger footprint introduces a recurring overhead expense. Additionally, factor in tooling costs, power consumption, and routine maintenance contracts. HMCs often demand specialized tombstone fixtures that can add $10,000 to $20,000 to your initial tooling budget. By rigorously balancing your initial capital budget against projected cost-per-part reductions and operational savings, you can confidently select the CNC machining center that secures your competitive advantage and maximizes your profitability in 2026.
The most important conclusions and rationale for CNC machining centers
Specs, compliance, and risk checks are worth validating before you commit
Practical next steps and caveats readers can apply immediately
A horizontal machining center is usually better. It machines multiple faces in one setup, reduces repositioning error, and improves consistency for prismatic aerospace, EV, and medical components.
Choose a VMC for flat parts, simpler geometries, lower batch volumes, and tighter budgets. It offers easier setup, better operator visibility, and a smaller shop footprint.
Poor chip removal can cause recutting, tool wear, heat buildup, and surface defects. HMCs generally clear chips better because gravity pulls chips away from the cutting zone.
If you need unattended running, pallet pools, or robot loading, CNC Horizontal machining centers often integrate more effectively. They support higher spindle utilization and reduce dependence on scarce skilled operators.
Yes. Oturn Machinery can help evaluate part geometry, volume, tolerance, materials, and automation goals so you can choose a VMC or HMC that fits your production plan.
