CNC machining is revolutionizing manufacturing. But is a 3-axis or a 5-axis CNC Machining Center better for your needs? Choosing the right machine impacts efficiency and cost. In this article, you'll learn the differences between 3-axis and 5-axis CNC machines. We'll explore their capabilities, applications, and factors to consider for your projects.
CNC machining stands for Computer Numerical Control machining. It’s a manufacturing process where computer software controls the movement of turning tools. These tools shape raw materials like metal, plastic, or composites into precise parts. The software follows a detailed design, often created in CAD (Computer-Aided Design), converting it into machine instructions. This automation ensures accuracy, repeatability, and efficiency in production.
There are various CNC machines, but the most common are 3-axis and 5-axis CNC machining centers. A 3-axis CNC machine moves its tool along three linear directions: X (left-right), Y (front-back), and Z (up-down). It’s great for simpler, flat parts or those with straightforward geometry.
In contrast, a 5-axis CNC machining center adds two rotational axes, often called A and B. This allows the tool or the workpiece to tilt and rotate, reaching complex angles and shapes in one setup. Types of 5-axis machines include the 5 axis vertical machining center, 5 axis horizontal machining center, and specialized models like the 5 axis mill turn or 5 axis gantry CNC. These machines are highly versatile and can produce intricate components with fewer setups.
CNC machining is vital in today’s manufacturing landscape. It reduces manual labor, increases precision, and speeds up production. Industries such as aerospace, automotive, medical, and electronics rely heavily on CNC technology. The ability to use advanced machines like the 5-axis CNC machining center means manufacturers can create complex parts that were once impossible or too costly to produce.
With the rise of 5 axis machining center manufacturers, more businesses can access these advanced tools. Options range from small 5 axis mills suitable for compact parts to larger 5 axis mills for sale that handle bigger projects. Even used 5 axis mills offer cost-effective ways to upgrade capabilities.
In summary, CNC machining blends computer control with mechanical precision, offering a broad spectrum of machine types to meet diverse manufacturing needs. Understanding these basics helps in choosing the right machine for your project’s complexity and budget.
Note: Investing in a 5-axis CNC machining center enhances your ability to produce complex parts with fewer setups, saving time and reducing errors.
A 3-axis CNC machine operates by moving its turning tool along three linear directions: X (left to right), Y (front to back), and Z (up and down). The workpiece remains fixed in place, usually clamped on a table or held in a vice. The turning tool, such as a drill or mill, moves precisely along these three axes to shape the material. This setup is excellent for producing parts with flat surfaces or simple geometries.
Because the tool cannot tilt or rotate around the workpiece, complex angles or undercuts require multiple setups. Each time the part is repositioned manually, the machine performs another cut from a different angle. This manual repositioning can increase production time and the chance of errors.
3-axis CNC machines are widely used for:
Milling flat surfaces and simple shapes
Drilling holes and threading
Turning key slots and surface features
Producing 2D or 2.5D parts like panels, brackets, and housings
Industries such as woodworking, metalworking, and prototyping often rely on 3-axis machining. It suits smaller production runs or projects where part complexity is low and tight tolerances are not critical.
Cost-effective: 3-axis machines are generally less expensive to purchase and maintain.
Ease of use: Programming is simpler, making it easier for operators with basic CNC skills.
Lower maintenance: Fewer moving parts mean less wear and tear.
Compact footprint: These machines often take up less space, ideal for smaller workshops.
Limited geometry: Cannot easily machine complex shapes, deep cavities, or angled features without multiple setups.
Manual repositioning: Requires stopping the machine to adjust the workpiece, increasing cycle time.
Accuracy risks: Each repositioning introduces potential alignment errors.
Slower for complex parts: More setups mean longer production times and higher labor costs.
Despite these limitations, 3-axis CNC machines remain a reliable choice for many manufacturers, especially those focused on simpler parts or working within a tighter budget.
Tip: When working with a 3-axis CNC machine, optimize your setup by carefully planning tool paths and minimizing workpiece repositioning to improve accuracy and reduce production time.

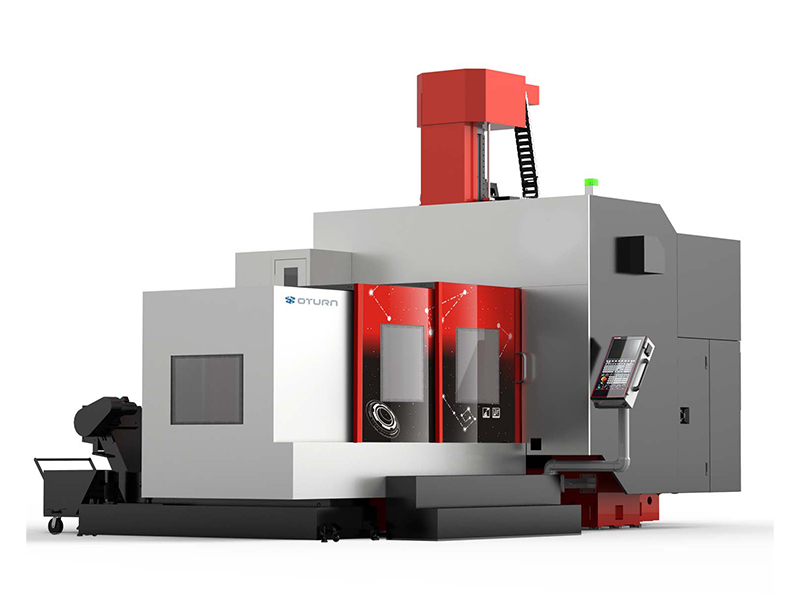

A 5-axis CNC machining center operates by moving its turning tool or workpiece along five different axes simultaneously. Besides the standard X, Y, and Z linear movements found in 3-axis machines, it adds two rotational axes, commonly called A and B. These axes allow the tool or the part to tilt and rotate, enabling access to complex angles and surfaces without repositioning the workpiece manually.
The tool can approach the material from virtually any direction, which means intricate shapes and undercuts can be machined in a single setup. This capability is especially useful in continuous 5-axis machining, where both the tool and the workpiece rotate simultaneously, enhancing precision and surface finish.
There are several types of 5-axis CNC machines, including:
5 axis vertical machining center – the spindle is vertical, ideal for complex parts with vertical features.
5 axis horizontal machining center – the spindle is horizontal, suited for heavier parts and better chip evacuation.
5 axis mill turn – combines milling and turning operations in one machine.
5 axis gantry CNC – large-scale machines for big workpieces.
5-axis machining centers excel in producing complex parts with tight tolerances and intricate geometries. Common applications include:
Aerospace components like turbine blades and engine parts.
Medical devices such as prosthetics and implants.
Automotive parts requiring complex contours and multi-sided features.
Mold and die making for plastic injection molding.
Sculptures and jewelry with detailed curves.
Because 5 axis machining allows machining from multiple angles without multiple setups, it reduces production time and improves accuracy for these demanding applications.
Increased flexibility: Can machine complex shapes and undercuts in one setup.
Higher precision: Continuous tool engagement improves accuracy and surface finish.
Reduced setup time: Eliminates the need for manual repositioning, turning labor costs.
Improved efficiency: Faster cycle times and fewer tool changes.
Versatility: Suitable for a wide range of materials and part sizes, from small 5 axis mills to large gantry machines.
Higher cost: Initial investment and maintenance are more expensive compared to 3-axis machines.
Complex programming: Requires advanced CAM software and skilled operators.
Increased maintenance: More moving parts mean higher wear and tear.
Space requirements: Larger footprint for some 5 axis machining centers.
Learning curve: Operators need specialized training to maximize machine capabilities.
Several industries rely heavily on 5-axis CNC machining centers due to their need for precision and complex designs:
Aerospace: For engine components, structural parts, and turbine blades.
Medical: Manufacturing implants, surgical instruments, and prosthetics.
Automotive: Producing intricate engine parts, molds, and custom components.
General manufacturing: For molds, dies, and precision tooling.
The availability of various 5 axis machining center manufacturers means businesses can find machines tailored to their needs, whether a small 5 axis mill for sale or a used 5 axis mill to upgrade capabilities affordably.
Tip: When investing in a 5-axis CNC machining center, prioritize machines with user-friendly CAM software and strong manufacturer support to ease programming complexity and operator training.
3-axis CNC machines move turning tools along three linear axes: X, Y, and Z. This setup suits simpler parts with flat or mildly contoured surfaces. However, it cannot reach complex angles or undercuts without repositioning the workpiece multiple times.
In contrast, a 5-axis CNC machining center adds two rotational axes, typically called A and B. This allows the tool or workpiece to tilt and rotate, enabling machining from virtually any direction in a single setup. This versatility makes 5-axis machines ideal for intricate parts like aerospace components or medical implants.
| Feature | 3-Axis CNC Machine | 5-Axis CNC Machining Center |
|---|---|---|
| Axes of Movement | 3 linear (X, Y, Z) | 3 linear + 2 rotational (A, B) |
| Complex Geometry Capability | Limited | Excellent |
| Number of Setups | Multiple for complex parts | Usually one setup |
| Undercuts & Angled Features | Difficult or impossible | Easily machined |
5-axis machining centers reduce production time by eliminating the need to manually reposition the workpiece. Continuous 5-axis machining allows simultaneous movement along all five axes, improving surface finish and dimensional accuracy.
3-axis machines require multiple setups for complex parts, increasing cycle time and labor. For simpler parts, 3-axis machining remains efficient and fast.
3-axis CNC machines are generally more affordable, with lower upfront and maintenance costs. They suit startups and small to medium businesses with simpler machining needs.
5-axis CNC machining centers involve higher initial investments, ranging from small 5 axis mills to large 5 axis gantry CNC machines. Maintenance and programming costs are also higher, but these are offset by improved productivity and reduced labor for complex parts.
Programming a 3-axis CNC machine is straightforward, using basic G-code. Operators with fundamental CNC skills can manage these machines effectively.
5-axis machining requires advanced CAM software and skilled programmers due to the additional rotational axes. Operators need specialized training to handle complex tool paths and machine calibration.
3-Axis CNC Machines: Best for flat or simple parts such as panels, brackets, and housings; suitable for low to medium volume production.
5-Axis CNC Machining Centers: Ideal for complex, multi-sided parts with intricate contours; used in aerospace, automotive, medical, and mold-making industries.
Choosing between these machines depends on project complexity, budget, and in-house expertise. For projects demanding precision and fewer setups, a 5 axis vertical machining center or 5 axis horizontal machining center can provide significant advantages.
Tip: When deciding between 3-axis and 5-axis machining, evaluate your part complexity and production volume carefully—investing in a 5-axis CNC machining center pays off for intricate parts but may be unnecessary for simple designs.
When selecting between a 3-axis CNC machine and a 5-axis CNC machining center, budget plays a crucial role. A 3-axis machine is generally more affordable, making it ideal for startups or businesses with limited capital. It has lower upfront costs, maintenance expenses, and simpler programming requirements. On the other hand, investing in a 5-axis mill, such as a 5 axis vertical machining center or a 5 axis horizontal machining center, demands a higher initial outlay. These machines often range from tens of thousands to several hundred thousand dollars, depending on size and capabilities. However, the efficiency gains and reduced labor costs from fewer setups can offset these expenses over time.
For companies considering options like a small 5 axis mill or a used 5 axis mill, these choices can provide a balance between cost and capability. Exploring various 5 axis machining center manufacturers can also help find machines tailored to specific budget ranges.
The complexity and precision of your projects heavily influence the choice. If your work involves simple shapes, flat surfaces, or 2.5D parts, a 3-axis machine is sufficient. However, for intricate components with undercuts, multi-sided features, or complex contours, a 5 axis machining center is indispensable. Industries such as aerospace, automotive, and medical device manufacturing rely on 5-axis machining to achieve tight tolerances and complex geometries.
Additionally, certain applications may benefit from specialized 5-axis machines like the 5 axis mill turn centers, which combine milling and turning. The ability to machine complex parts in a single setup reduces errors and speeds production, which is critical for high-precision or high-volume projects.
Operating a 3-axis CNC machine requires less specialized training, making it accessible to operators with basic CNC programming skills. Programming is straightforward, often involving standard G-code. Maintenance is also simpler due to fewer moving parts.
Conversely, a 5-axis CNC machining center demands advanced programming expertise and operator training. The addition of rotational axes (A and B) increases programming complexity, often requiring sophisticated CAM software. Skilled operators are essential to maximize the machine’s capabilities and ensure accurate setups. Manufacturers offering 5 axis mills for sale often provide training and support services, which can ease the learning curve.
Consider your company’s growth plans and potential changes in production demands. Investing in a 5-axis machining center offers scalability for future projects with increasing complexity. It allows manufacturers to diversify their capabilities and take on more challenging jobs without needing additional machines.
On the other hand, a 3-axis machine might be suitable for businesses with stable, simple production needs and limited space. If expansion is anticipated, starting with a small 5 axis mill or modular 5-axis machine can provide flexibility without a massive upfront investment.
Tip: Evaluate your current and future project complexity alongside your budget and workforce skills to choose between a 3-axis machine and a 5-axis CNC machining center that best aligns with your manufacturing goals.
CNC machining involves 3-axis and 5-axis machines, each offering unique capabilities. 3-axis machines are cost-effective for simple parts, while 5-axis machines handle complex geometries efficiently. When choosing, consider project complexity, budget, and skill level. For advanced manufacturing needs, investing in a 5-axis CNC machining center enhances precision and efficiency. Oturn Machinery provides versatile CNC solutions, ensuring high-quality production and reduced labor costs. Evaluate your needs to select the right machine for your manufacturing goals.
A: The primary difference is in movement capabilities. A 3-axis machine moves along X, Y, and Z linear axes, ideal for simple parts. A 5-axis CNC machining center adds rotational axes, A and B, allowing complex geometries in one setup.
A: A 5-axis CNC machining center reduces setup time by machining complex parts in one go, eliminating manual repositioning. This increases precision and speeds up production.
A: Manufacturers opt for a 5-axis vertical machining center for its ability to handle intricate designs and tight tolerances, essential in industries like aerospace and medical.
A: Yes, manufacturers can explore small 5 axis mills or used 5 axis mills for sale, providing advanced capabilities at a reduced cost compared to new machines.
A: Industries such as aerospace, automotive, and medical devices benefit from 5-axis machining centers due to their need for precision and complex part geometries.
