You require extreme precision for medical device miniaturization. A CNC vertical machining center proves pivotal in achieving the intricate geometries these tiny components demand. These powerful machines offer you superior control, accuracy, and versatility. They are essential for machining small parts, driving significant advancements in medical technology.
CNC Vertical Machining Centers (VMCs) make tiny, precise medical devices. These machines help create smaller tools and implants for better patient care.
VMCs use advanced tools and controls to shape complex medical parts. They work with special materials like titanium and stainless steel.
These machines help make less invasive medical devices. This means faster recovery and more accurate tests for patients.
Miniaturization in medical devices is not just a trend; it is a critical advancement. Smaller devices offer significant advantages for both patients and healthcare providers. You gain access to more effective and less invasive medical solutions.
Smaller medical devices bring numerous benefits. They improve the monitoring and management of chronic conditions. For example, you can better manage diabetes, heart failure, or arrhythmia. These devices provide more data and insights for doctors. Doctors analyze blood glucose fluctuations effortlessly and accurately. This allows for tailored treatment plans. You also see early detection of abnormalities and irregularities in heart function. This facilitates timely interventions. Smaller devices offer enhanced ease and convenience in managing cardiac conditions. They integrate with mobile technology. You proactively track your heart rhythm, record symptoms, and view health history via smartphone apps. This gives you greater control over your health. Miniaturization enables minimally invasive surgery. This often leads to shorter hospital stays and faster recovery. Diagnostic procedures shift from hospitals to your home, offering unparalleled convenience. You live without a constant reminder of your medical condition. Devices like leadless pacemakers are less noticeable.
You see miniaturization in many real-world applications. Medtronic's Micra, approved by the FDA in 2016, is the world's smallest leadless pacemaker. This device represents a significant advancement. Abbott has also introduced its Aveir VR leadless pacemaker to the U.S. market. Boston Scientific develops a similar device. These leadless pacemakers deliver via a catheter. Doctors implant them directly into the heart. This eliminates the need for a chest incision or cardiac leads. Other examples include portable ultrasound devices and portable diagnostic analyzers. You also find continuous glucose monitoring devices and Insertable Cardiac Monitors (ICMs). These innovations enhance patient care and convenience.

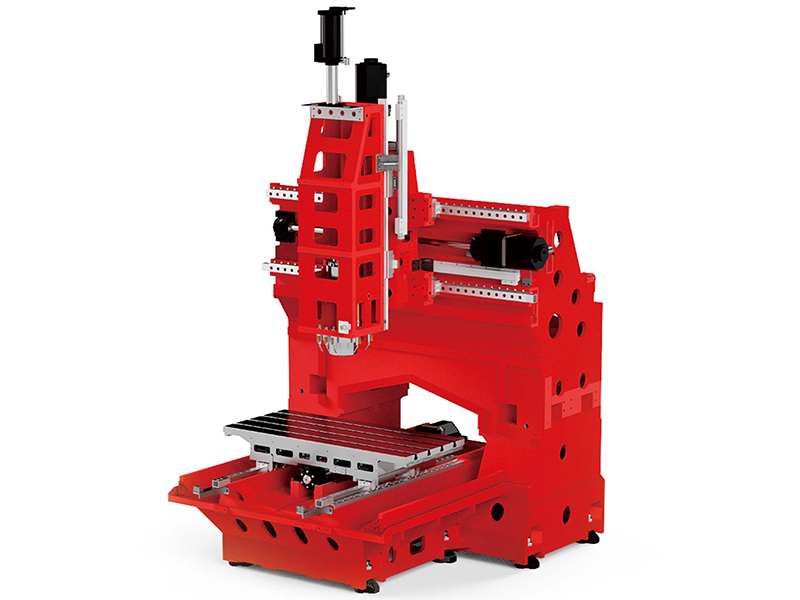

CNC vertical machining centers are indispensable tools for medical device miniaturization. They provide the capabilities you need to create incredibly small, precise, and complex components. These machines transform raw materials into life-saving devices with unparalleled accuracy and efficiency.
You require exceptional precision for medical device miniaturization. CNC vertical machining centers deliver this precision consistently. They achieve micron-level accuracy for components such as surgical instruments, implants, and medical molds. You can expect tolerances as tight as ±0.01 mm for intricate medical parts. This level of control ensures every tiny feature meets stringent specifications. It guarantees the reliability and functionality of miniaturized devices.
Creating complex shapes for miniaturized medical devices demands advanced capabilities. Multi-axis CNC VMCs, especially 5-axis CNC machining, produce these intricate geometries. You achieve complex shapes that traditional methods struggle with. This happens in a single setup, eliminating multiple repositioning steps. This increased flexibility provides greater precision and accuracy. Modern 5-axis CNC machines effortlessly create complex geometries using computer codes. This makes CNC machining perfect for medical device manufacturing. You get specific customization and the high precision required for medical procedures. The ability to achieve tight tolerances is crucial. Even slight variations can pose significant risks for medical devices. A 5-axis CNC vertical machining center incorporates two rotary axes alongside the linear axes. This multi-directional movement offers unparalleled flexibility. It allows the turning tool to reach virtually any surface angle or contour. This capability significantly reduces setup time and increases overall efficiency.
Advanced tooling and spindle technology are vital for miniaturization. Motor spindles are crucial for achieving the necessary precision and surface finish. They enable high-quality manufacturing for implants, instruments, and other medical equipment. You benefit from higher efficiency, precision, and productivity. Systems like the Advanced CNC Micromachining System (AMMS) address the demand for exact micro components. These components range from hundreds of microns to a few millimeters. AMMS supports micro-turning, micro-drilling, and micro-milling. It uses tools like micro EDM and micro LBM. Other innovations include Femtosecond Laser turning Systems. These systems offer fully automated turning of tube and flat materials. They are ideal for medical instruments like stents. You also find 10-Axis Sliding Head CNC machines. These machines mass-produce close-tolerance titanium medical implants. They feature dual spindles for front and back operations.
Medical devices require specific biocompatible materials. CNC VMCs handle a wide range of medical-grade materials. You can machine titanium, stainless steel, PEEK, and various polymers. These materials are essential for implants, surgical tools, and diagnostic components. The VMC's robust structure and precise control ensure optimal material removal. You maintain the integrity and properties of these specialized materials. This versatility allows you to innovate with new materials. You meet the stringent requirements of the medical industry.
Automation significantly boosts efficiency in small medical part production. Robotic integration manages material handling. This reduces downtime and improves your workflow. Automated tool changers switch tools automatically. This ensures smooth transitions between operations. Pallet systems automatically swap workpieces. This allows continuous machine operation. Smart software and AI optimize tool paths. They enable predictive maintenance and enhance precision. You minimize material waste. Lights-out manufacturing allows unattended production. This boosts productivity during off-hours. Automation increases productivity through continuous operation. It improves precision and consistency by eliminating human error. You achieve high accuracy and repeatability. This is crucial for medical parts. Automation reduces labor costs. It allows your staff to focus on higher-value tasks. You get faster turnaround times and scalability for high-volume production. AI enhances CNC machining with superior precision and consistency. It monitors and adjusts processes in real-time. This minimizes errors and maintains tight tolerances. AI-enabled quality control systems perform automated inspections. They detect defects, reducing faulty products.
You need specific capabilities in a CNC vertical machining center to achieve the extreme precision required for medical device miniaturization. These machines incorporate advanced features. They ensure accuracy, stability, and verification for your critical components.
You need precise control for medical device miniaturization. High-resolution feedback systems are crucial for this. These systems constantly monitor the exact position of the turning tool and the workpiece. They ensure every movement is accurate. This real-time data allows the machine to make tiny adjustments. You achieve the tight tolerances required for micro-components. This precision guarantees the reliability of your miniaturized medical devices.
Machining generates heat. This heat can affect precision. You need to maintain consistent accuracy during long operations. CNC VMCs achieve thermal stability through a specialized coolant system. This system sprays a liquid coolant onto the turning tool and workpiece. It keeps the temperature under control. This prevents thermal expansion or contraction of materials. You ensure consistent dimensions and surface finishes throughout the entire manufacturing process.
Vibration can compromise the surface finish of delicate medical components. It also shortens tool life. You need to produce parts with pristine surfaces. A CNC vertical machining center incorporates robust designs and advanced dampening technologies. These features minimize vibrations during machining. The CNC machine's stable structure, often made from materials like robust Meehanite cast iron, absorbs kinetic energy. This ensures smooth turning operations. You achieve superior surface integrity. This is critical for biocompatibility and device performance.
Micro-machining demands sophisticated control. Advanced control systems are essential for these operations. You benefit from multiaxis control. This enables the shaping of complex structures like implants. Automatic feedback systems regulate tool vibration and temperature in real-time. Smart AI software dynamically adjusts turning parameters. This ensures stable output. Machines can self-correct in real-time. AI-powered controls and adaptive feedback systems contribute to consistent micro-machining operations. These systems allow you to create intricate features with unparalleled precision.
Verifying the quality of medical device components is paramount. Integrated metrology systems provide on-machine verification. You can perform micro-geometry scanning and dimensional checks. This often happens with support from trusted suppliers. These systems offer non-destructive testing and assembly control. They use X-Ray microscopy and computed tomography. You visualize and evaluate submicron internal structures, active ingredients, porosity, inclusions, geometry, and assembled functionality. This happens without damaging the device. External dimensional analysis employs optical scanners. These provide easy, non-contact measurement of fragile or flexible components. They also measure complex 3D surface structures. Coordinate Measuring Machines (CMM) offer flexible multisensor systems. They provide micron-range active scanning of critical geometries. Internal dimensional analysis leverages X-Ray microscopy for non-destructive imaging at submicron resolution. X-Ray CT provides dimensional inspection and digitization of complex parts, including internal geometries. Mechanical property analysis uses systems like the ZEISS ARAMIS 3D Measurement System. This system offers non-contact optical measurement. It analyzes motion and deformation of small medical devices. This avoids interference with delicate biomaterials. It provides holistic measurement data. You ensure every component meets the highest quality standards before it leaves the machine.
Manufacturing miniaturized medical devices presents unique challenges. You must overcome these obstacles to produce reliable, high-quality components. CNC VMCs offer solutions, but you need specific strategies.
You face significant challenges with chip evacuation in tiny features. Chips can clog small channels and damage delicate parts. Lubrication is vital. You should use Minimum Quantity Lubrication (MQL) or flood coolant. Avoid high-pressure coolant; it can snap micro tools. Ensure your coolant is well-filtered, below 30 µm, to prevent clogging. Adapt turning values to your machining setup for good chip evacuation. If you have through holes, reduce the feed rate by 50% before leaving the component. This increases process stability. Leverage CAD/CAM software for toolpath simulation and chip load calculation. This ensures your tool handles the required depth of cut.
Micro-tools are fragile. You must prevent breakage during machining. For stainless steel medical components, use tools with balanced geometries, edge stabilization, ultrafine carbide grades, and NexGen coatings. For general micro-drilling, ensure a controlled work environment and tight process control. You need drilling machines with high sensitivity and fine resolution in the feed axis. Use precise spindles capable of high-speed rotation with low dynamic runout, often below 0.003mm. Ultra-precision collets are essential for tool holding. Select drills designed to produce even wear across turning edges. This reduces turning forces. Very sharp turning edges, dead on center, are crucial. Consider pilot holes for deep drilling operations. Thru-coolant drills are available for diameters down to 0.50mm.
Securing tiny medical components for machining is difficult. You need specialized fixturing solutions. These fixtures must hold parts firmly without deforming them. Custom jigs and vacuum clamping systems often provide the necessary stability. You ensure precise machining without movement.
You must achieve stringent surface finishes for medical devices. This is critical for biocompatibility and function. Laser turning offers unmatched precision. It creates intricate designs with micron-level accuracy. This process generates a minimal Heat-Affected Zone (HAZ). It reduces thermal damage. As a non-contact process, it eliminates mechanical stress. This preserves delicate materials. Laser turning produces clean, burr-free cuts. This reduces secondary finishing operations. Diamond-Like Carbon (DLC) thin films, synthesized at room temperature, offer high hardness (around 32.7 GPa). They provide scratch protection and low wettability. You can apply these films to stainless steel and Ti-Al-V alloy. This contributes to stringent surface finishes for self-cleaning applications. Electropolishing is another surface treatment. You use it on stainless steel tubing. This enhances hygiene and corrosion resistance.
You see the impact of advanced manufacturing in many medical fields. CNC vertical machining centers are crucial for creating life-changing devices. They enable the production of components that were once impossible to manufacture.
You rely on CNC vertical machining centers to produce miniature orthopedic implants. These machines precisely shape materials like titanium and medical-grade stainless steel. They create intricate bone screws, tiny joint replacements, and spinal components. The VMC's accuracy ensures a perfect fit and long-term patient comfort. You achieve complex geometries and smooth surfaces essential for biocompatibility.
Catheters require extremely precise and smooth tips. You use CNC vertical machining centers to create these intricate features. These machines produce tiny holes, complex curves, and specialized channels on catheter tips. This precision ensures safe insertion and effective delivery of therapies. The smooth finish prevents tissue damage during medical procedures.
Microfluidic devices are vital for rapid diagnostics. You need precise channels for these applications. A CNC vertical machining center excels at producing the tiny, complex channels required for micro-fluidic chips. These channels guide minute fluid volumes for accurate testing. This capability supports the development of portable diagnostic tools and advanced lab-on-a-chip systems.
You find CNC vertical machining centers essential for advancing medical device miniaturization. They offer the precision, versatility, and control the healthcare industry demands. Their capabilities create smaller, more effective, and less invasive medical solutions. This directly drives innovation in patient care.
A CNC VMC is a machine tool. It uses computer numerical control for precise material turning. You use it to create complex, tiny parts for medical devices.
Miniaturization is crucial. It allows less invasive procedures and faster patient recovery. You also get more accurate diagnostics and portable medical solutions.
You can machine many medical-grade materials. These include titanium, stainless steel, PEEK, and specialized polymers. VMCs maintain material integrity during processing.
