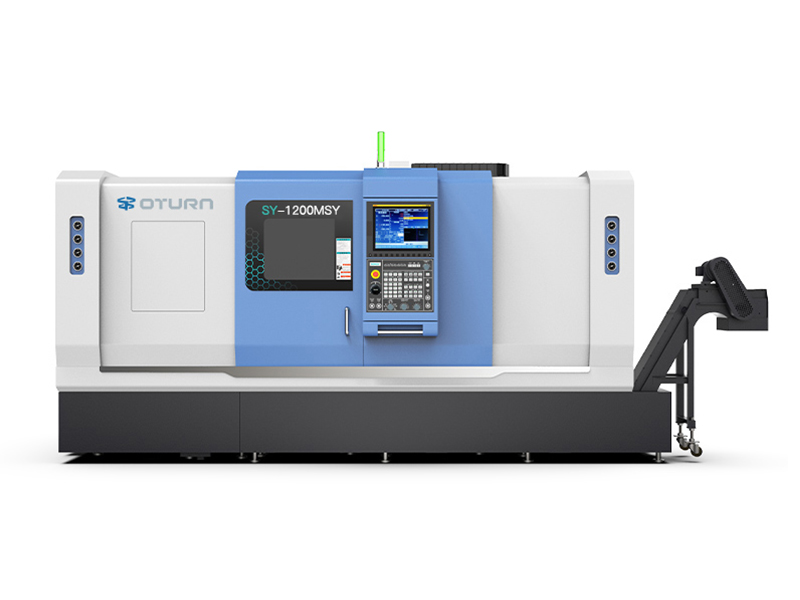

Causes and Preventive Measures of Feed System Failures in Dual-Spindle Turning Center

As high-precision and high-efficiency machining equipment, the stability of the feed system in dual-spindle turning center directly affects machining quality and production efficiency. The feed system is a critical component that enables precise movement of the machine tool. Any failure can lead to machining errors, equipment downtime, and even production losses. Therefore, understanding the common causes of feed system failures and implementing preventive measures is essential to enhance equipment stability and extend its service life.

Mechanical Component Failures Are the Primary Cause of Feed System Issues

Wear, looseness, or damage of mechanical components are common problems that cause feed system abnormalities. The ball screw, as the core component of the feed system, may experience wear on its balls and raceways after long-term use, resulting in increased clearance, which affects feed accuracy and motion stability. Additionally, wear or deformation of the guide rails can cause feed motion stalling, deviation, or even chatter, severely impacting machining quality. The coupling, which connects the servo motor to the ball screw, is a key part; if it becomes loose or damaged, it can cause unstable power transmission, vibration, and noise, thereby affecting the normal operation of the entire feed system.

Electrical System Failures Affect Feed Accuracy and Stability

The feed system's drive components mainly rely on the servo motor and driver. The performance of the servo motor directly determines feed accuracy and response speed. Faults such as winding short circuits, open circuits, or encoder damage can cause the motor to malfunction or output insufficient torque, leading to feed system failure. The driver, as the motor’s control core, also affects motor operation if parameters are improperly set or alarms such as overcurrent, overvoltage, or overheating occur. Driver malfunctions can cause unstable feed motion or prevent the system from executing programmed machining instructions.

Control System Failures Lead to Degraded Motion Quality

The CNC control system acts as the “brain” of the feed system, responsible for interpreting commands and planning motion trajectories. Programming errors are a common cause of control system failures. Improper use of instruction codes, incorrect parameter settings, or logical flaws can lead to unreasonable tool path planning, preventing the feed system from accurately executing machining tasks. Furthermore, software issues such as corrupted system files or virus infections can disrupt normal program operation, impacting feed system stability and machining quality.

Poor Lubrication and Cooling Accelerate Mechanical Wear

Lubrication and cooling systems are vital auxiliary systems that ensure the feed system operates smoothly. Insufficient lubrication increases friction between mechanical parts, accelerating wear and reducing feed accuracy. Cooling system failures can cause excessive temperatures in motors and drivers, impairing their performance and lifespan, and ultimately affecting feed system stability and machining efficiency.

How to Effectively Prevent and Reduce Feed System Failures?

To ensure the stable operation of the feed system in dual-spindle CNC turning center, enterprises should adopt scientific maintenance and management measures:

1. Regular Maintenance of Mechanical Components

Inspect ball screws, guide rails, and couplings regularly, and promptly replace damaged or severely worn parts to ensure mechanical transmission accuracy and stability.

2. Ensure Electrical System Stability

Regularly check the performance of servo motors and drivers, ensure proper parameter settings, and promptly address electrical faults to prevent feed system malfunctions caused by motor issues.

3. Optimize Control System and Program Writing

Improve CNC program quality to avoid logical errors and improper parameter settings. Regularly update and maintain CNC system software to prevent virus infections and file corruption.

4. Strengthen Lubrication and Cooling Management

Ensure the lubrication system operates normally by regularly adding lubricants to reduce mechanical friction. Maintain the cooling system to keep key components within proper temperature ranges.

Conclusion

The feed system of dual-spindle CNC turning lathe is a key link to ensuring machining quality and production efficiency. The health of mechanical components, electrical systems, control systems, and lubrication and cooling systems directly affects feed system stability. Through scientific maintenance and management, timely detection and resolution of potential faults can reduce equipment downtime, improve machining accuracy, extend machine tool service life, and help enterprises maintain a competitive edge in the market.
