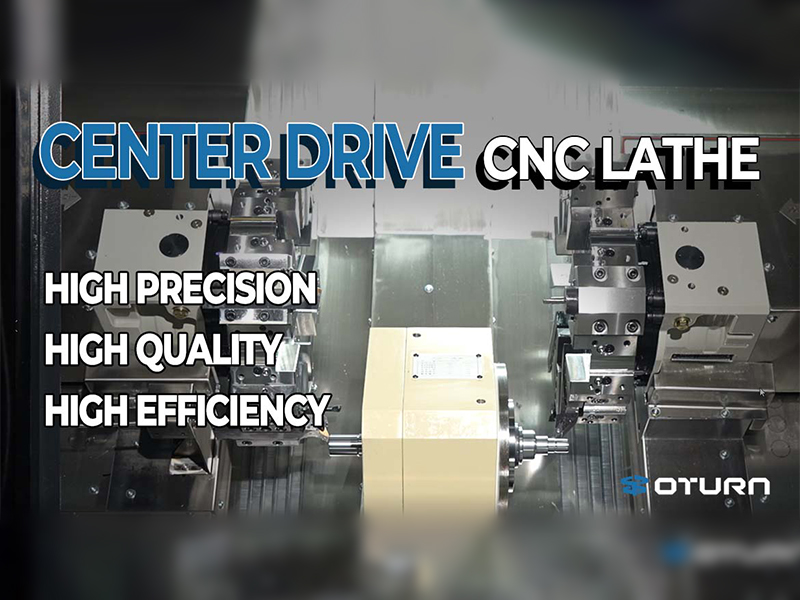

Center Drive CNC Lathe Optimization | High Precision & Efficient Machining Solutions

As the manufacturing industry increasingly demands high-efficiency and high-precision machining, center drive long shaft CNC lathe have become more widely applied across various fields. Especially in metal processing and aerospace industries, center drive CNC lathe have become key production equipment due to their high precision, advanced automation, and excellent machining efficiency.

1. Features and Challenges of center drive long shaft CNC lathe

“Center drive long shaft” refers to machines capable of processing long workpieces in a single setup while simultaneously or independently machining both sides of the workpiece. This greatly facilitates mass production of long parts. However, center drive long shaft CNC lathe also face several challenges:

Machining Stability Issues: Long workpieces are heavy and prone to vibration during machining, which affects machining accuracy and surface quality.

Workpiece Positioning Difficulty: Designing double-sided fixtures is complex; it is essential to firmly secure the workpiece on both sides during machining to avoid errors.

Increased Tool Wear: Continuous double-sided machining accelerates tool wear, affecting precision and increasing production costs.

2. Optimization Strategies for Efficient Machining

To improve the machining efficiency of double-sided CNC lathe, optimizing the process is crucial. Common optimization methods include:

Proper Tool and turning Parameter Selection

Choose suitable tool materials (e.g., carbide, ceramics) and tool types (end mills, turning tools) to enhance tool durability and reduce wear. Optimize turning speed, feed rate, and depth of cut to minimize vibration and improve efficiency.

Optimized Double-Sided Fixture Design

Design stable and precise double-sided fixtures for long workpieces to ensure accurate positioning on both sides, reducing vibration and positioning errors. Pneumatic or hydraulic clamps can be used to prevent displacement or deformation during machining.

Application of Dynamic Compensation Technology

Use dynamic compensation to adjust tool paths in real time, reducing errors caused by machine thermal deformation and tool wear, thereby improving consistency and accuracy in double-sided machining.

Optimized Machining Paths and Sequences

Plan machining paths and sequences rationally to reduce non-turning time, control heat buildup, and avoid workpiece deformation. Advanced CNC programming software can help improve efficiency while ensuring quality.

Double-Sided Automatic Loading and Synchronized Machining

Employ automatic loading systems to enable synchronous or independent double-sided machining, significantly increasing production efficiency and reducing manual intervention.

3. Practical Application Case

An automotive parts manufacturer implemented the above optimization measures on their center drive long shaft CNC lathe production line. By adjusting turning parameters, selecting high-hardness tools, and controlling feed rates, turning efficiency was significantly improved. A specialized double-sided fixture system firmly secured long workpieces, ensuring precise positioning on both sides and reducing vibration impact on quality. Combined with CNC system dynamic compensation, tool paths were corrected in real time, ensuring machining accuracy.

After optimization, the production line’s machining efficiency increased by approximately 20%, machining accuracy remained stable, and tool replacement frequency and production costs were significantly reduced.

Conclusion

Efficient machining on center drive CNC lathe depends on comprehensive improvements in tool selection, double-sided fixture design, turning parameter optimization, and dynamic compensation. Scientific and reasonable process optimization can significantly enhance machining efficiency, reduce production costs, and ensure product quality, creating greater value for manufacturing enterprises.

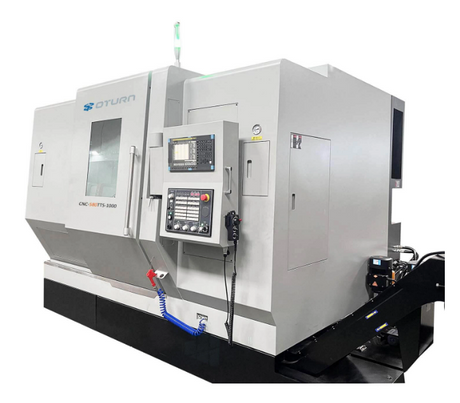

Oturn provides high-quality center drive CNC lathe, featuring excellent equipment stability and intelligent control technology to help enterprises significantly improve production efficiency and ensure consistent machining quality. Our professional team is always ready to offer technical support and customized services to help your manufacturing business achieve efficient and sustainable growth. Contact us to learn more about our products and personalized solutions.
