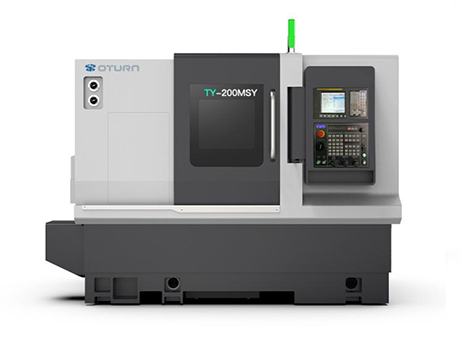

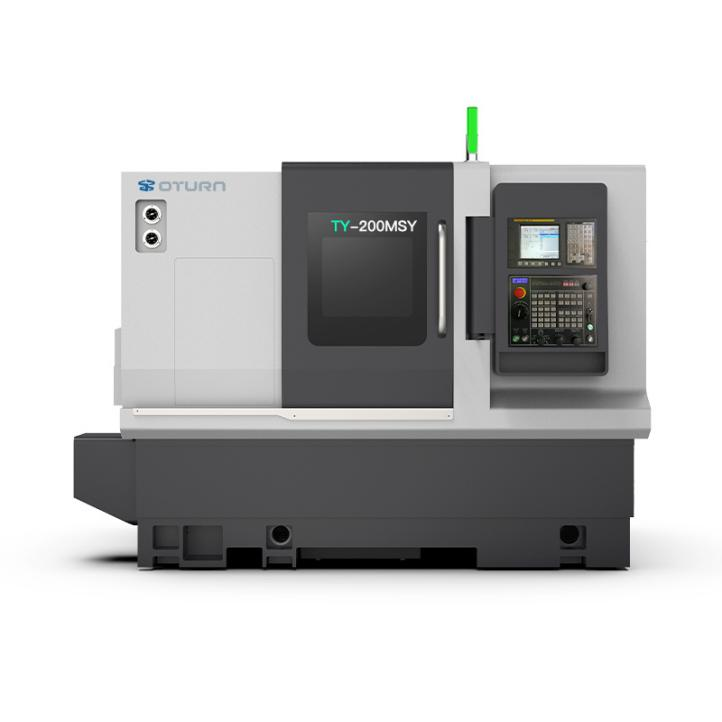

CNC Double-Spindle Lathe as high-efficiency machining equipment in modern precision manufacturing, is designed for batch production scenario and play a core role in high-end manufacturing fields such as automotive parts, aerospace structural parts and optical instruments. Compared to traditional single-spindle lathe, it achieves groundbreaking upgrades in processing consistency, multi-tasking capability and intelligence level. Relying on the multi-axis cooperative control technology of the CNC system and the dual-turret architecture for synchronized composite machining tasks, significantly enhances unit-time production efficiency.
I. Key Technology Analysis
① Intelligent CNC System Integration
CNC control module as the hub of the equipment, the use of multi-channel computing technology to realize the real-time analysis of G-code instructions. A preset process parameter library , the axial motion trajectory, dynamic feed rate and cutting load threshold are precisely regulated to ensure process stability in complex surface machining.
② Dual Spindle Collaborative Machining Technology

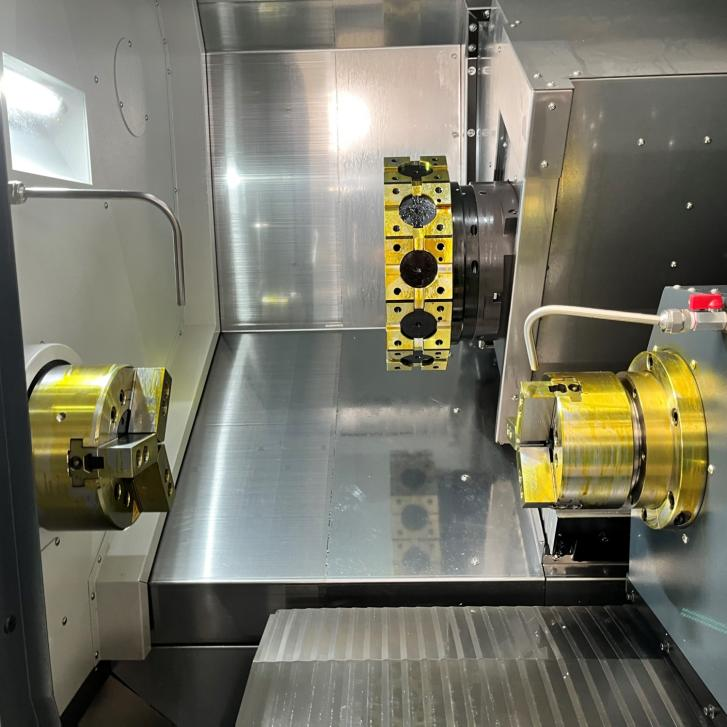

Innovative configuration of dual independent electro-spindle units, combined with a modular tool turret design, supports both synchronous and asynchronous machining modes, and realizes zero datum conversion for multi-face workpiece machining through precision indexing mechanism.
③ Intelligent Fixture System
Equipped with a hydraulic servo-driven clamping device, it integrates automatic workpiece recognition and adaptive clamping force compensation. The zero-point positioning system enables rapid mold changes, meeting the demands of flexible multi-variant production.
II. Core Advantages
① Double Machining Efficiency
Dual spindle synchronized machining technology enables the equipment to significantly increase the proportion of effective cutting time, the typical application scenarios of single-piece machining cycle is also greatly reduced. With the automatic feeding robot to build an unmanned production line, to achieve 24-hour continuous operation.
② Closed-Loop Precision Control System
The integrated grating scale full-closed-loop feedback system, coupled with automatic tool wear compensation, ensures batch machining dimensional variations remain within IT6 to IT7 tolerance grades. This CNC lathe is equipped with a thermo-deformation compensation module to address high-temperature deformation issues, ensuring the stability of machining precision.
③ Human-Machine Collaboration Optimization
The HMI (Human-Machine Interface) features an intelligent diagnostic system and process parameter optimization wizards to lower operational barriers. Remote monitoring interfaces enable cloud-based management of equipment status data and predictive maintenance decision-making.
As a piece of critical equipment for smart manufacturing transformation, double-spindle CNC Lathe drive large-scale, high-precision manufacturing of automotive hubs, hydraulic valve bodies, and other critical components through modular design, closed-loop process data management, and energy monitoring systems. They empower enterprises to achieve dual optimization of quality and cost.
By choosing OTURN, you are choosing a full-cycle service from process planning to remote operation and maintenance, which has served many customers around the world, and continues to drive performance upgrades and cost optimization in high-end manufacturing.
