Five-axis machining is transforming modern manufacturing. It allows for high precision and complex part production. Unlike traditional machines, five-axis milling and turning machines operate along five axes simultaneously.
In this post, we'll explore the advantages of five-axis machines, focusing on their efficiency, accuracy, and ability to handle intricate designs.

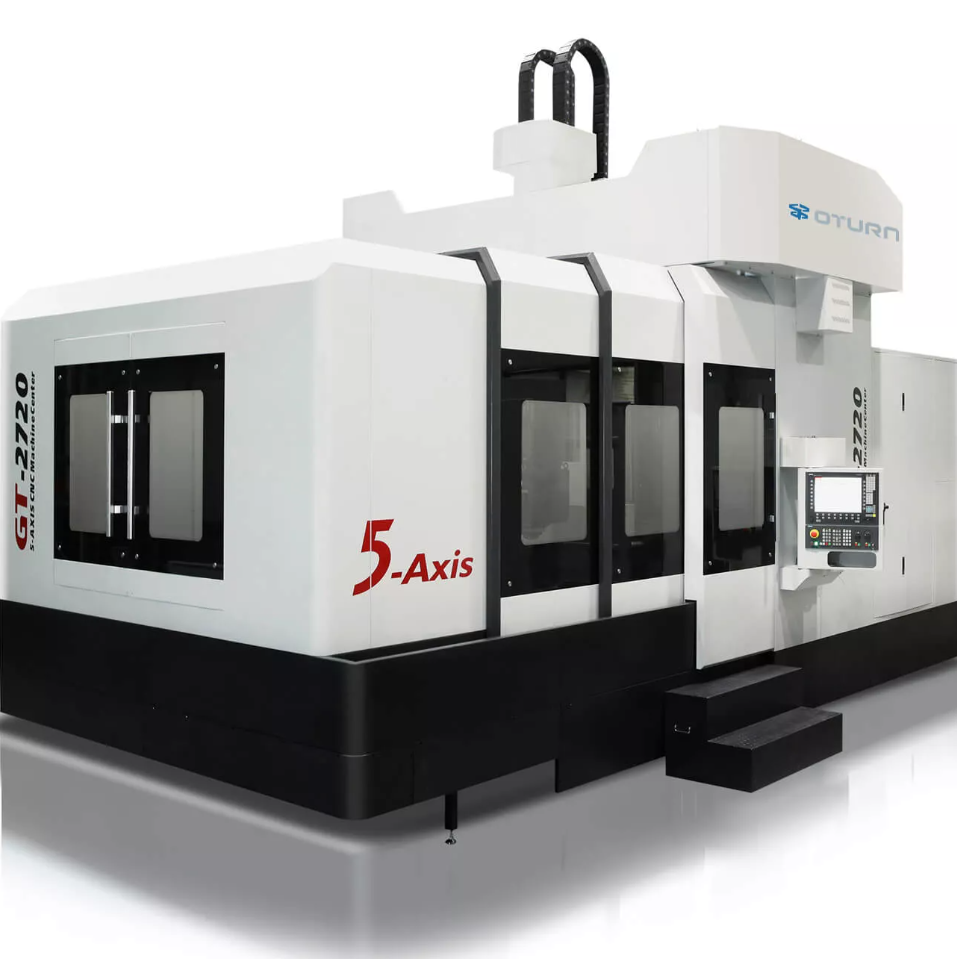

A five-axis milling and turning machine is a CNC machine that moves the cutting tool or workpiece along five axes: X, Y, Z, A, and B. This setup allows it to create more complex shapes with higher precision than traditional machines.
● X-axis: Moves left to right.
● Y-axis: Moves forward and backward.
● Z-axis: Moves up and down.
● A-axis: Rotates around the X-axis.
● B-axis: Rotates around the Y-axis.
These extra axes help the machine cut from different angles, creating intricate shapes in a single setup.
Traditional three-axis machines only move along the X, Y, and Z axes. For more complex parts, they require repositioning the workpiece. Five-axis machines can work from multiple angles without needing to move the part, saving time and increasing accuracy.
Five-axis machining offers superior precision compared to 3-axis and 4-axis machines. The added A and B axes allow cutting from multiple angles, reducing the chance of errors. Shorter cutting tools help reduce vibrations, resulting in smoother surfaces and more accurate cuts.
This high precision is essential in industries like aerospace, medical, and automotive, where tight tolerances are crucial for part performance and safety.
Five-axis machines dramatically reduce cycle times by machining multiple sides of a part in a single setup. Fewer setups mean quicker processing and less downtime. Additionally, fewer fixtures are needed, cutting costs and simplifying the production process.
These efficiencies lead to significant savings in both labor and fixture costs.
Five-axis machines excel at producing complex shapes like deep cavities, tapered surfaces, and curves. Unlike traditional machines, which often require multiple setups to achieve these geometries, five-axis machines can handle them all in one go.
Examples of parts made with five-axis machines include molds, turbine blades, and aerospace components—parts that require extreme precision and complexity.
Shorter cutting tools on five-axis machines help improve surface finishes by reducing vibrations during machining. These machines provide smoother, cleaner cuts compared to 3-axis or 4-axis machines, especially on parts with intricate shapes.
In comparison, 3-axis and 4-axis machines often struggle to achieve the same level of surface smoothness on complex parts.
The additional axes in five-axis machines enhance drilling accuracy, particularly for complex and deep holes. These machines can reach difficult angles and drill precise holes in parts like molds or turbine blades that would be difficult to make using traditional methods.
Their ability to handle intricate drilling applications ensures higher quality and less need for post-processing.
Five-axis machines are incredibly flexible. They can handle a wide variety of materials, from tough metals to polymers. These machines are versatile, capable of adapting to different industries and manufacturing needs.
They can also perform both milling and turning operations in a single setup, saving time and improving production flow.

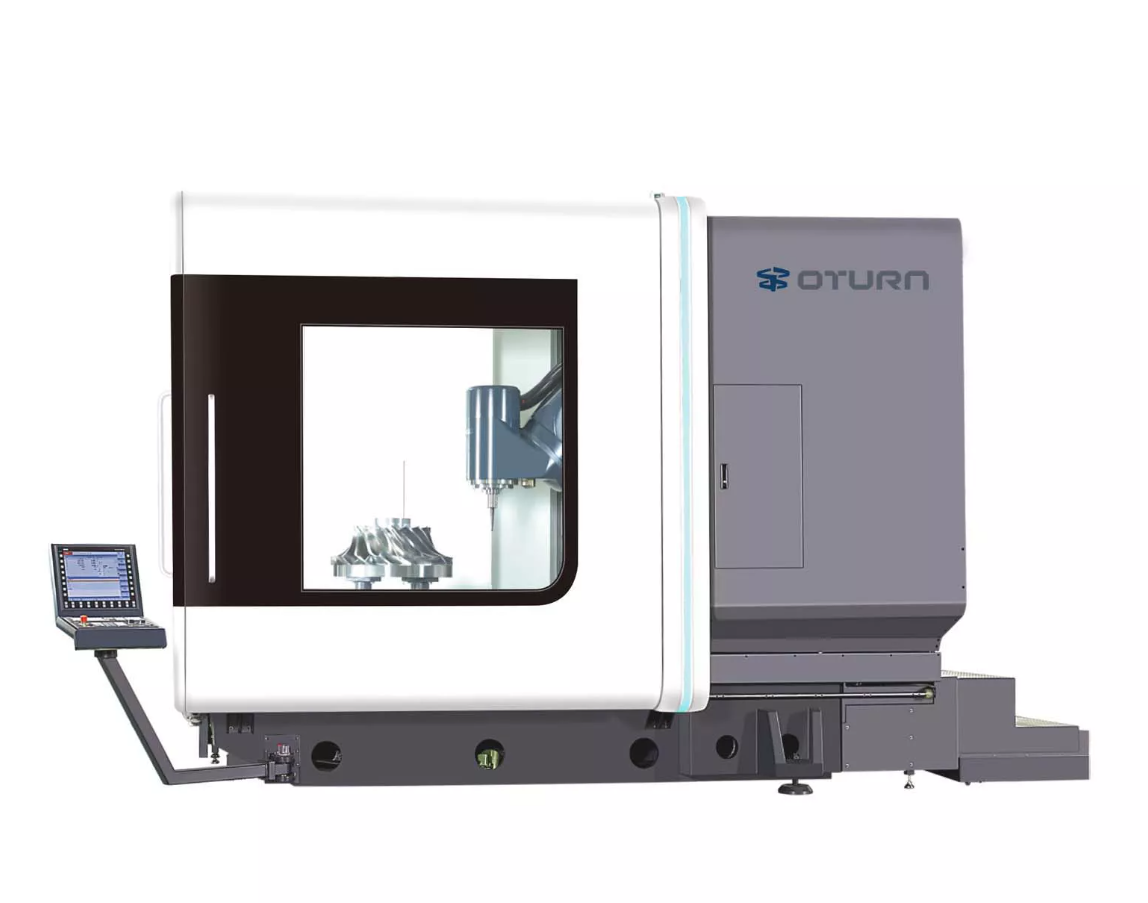

Five-axis milling and turning machines are built with several key components that work together to enable high-precision machining. These components include the spindle, worktable, and additional rotational axes, all of which enhance the machine's flexibility and capabilities.

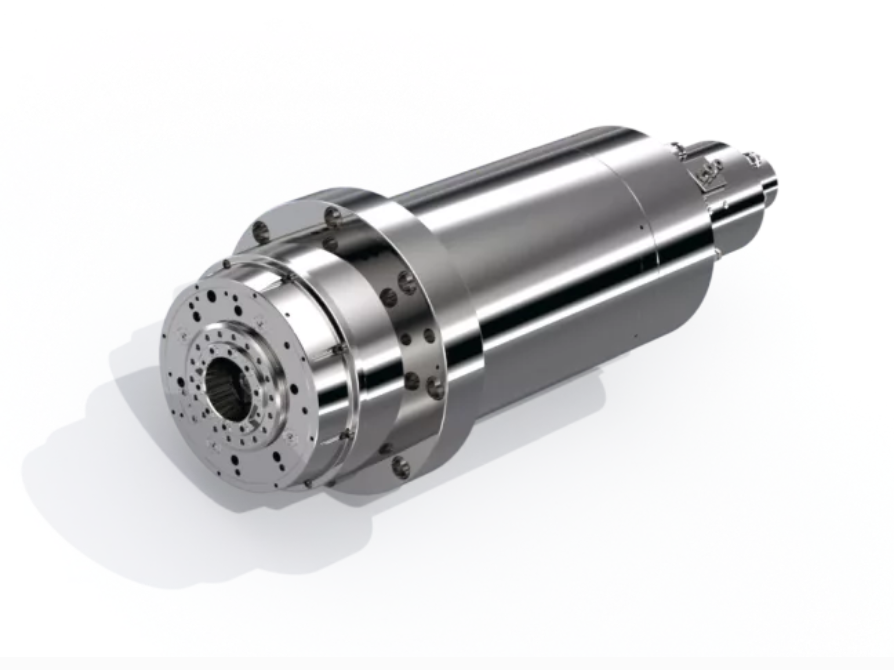

The spindle is one of the most critical parts of a five-axis machine. It holds the cutting tool and rotates at high speeds, allowing the tool to make precise cuts in the material. The spindle's movement is controlled along the X, Y, and Z axes, providing the necessary power and speed to achieve the desired part geometry.
The worktable supports the workpiece and is responsible for moving it during machining. It can move in multiple directions—along the X, Y, and Z axes—and often has additional rotational capabilities for precise part positioning. This movement allows the workpiece to be positioned in various orientations for complex machining tasks.
The A-axis and B-axis are the additional rotational axes found in five-axis machines. These axes allow the cutting tool and workpiece to rotate, providing greater flexibility and enabling machining from multiple angles without repositioning the part.
● A-axis: Typically rotates around the X-axis. This rotation helps to tilt the workpiece, enabling the machine to cut at angles that would be difficult to achieve with a standard three-axis machine.
● B-axis: Rotates around the Y-axis and gives the machine even more flexibility. It is often used in conjunction with the A-axis to achieve more complex geometries and surface finishes.
The configuration of a five-axis machine is vital for ensuring precision and stability during operations. A well-configured machine helps maintain accuracy and reduces errors caused by misalignment or vibrations. Proper setup of the spindle, worktable, and rotational axes ensures smooth operation and maximizes the machine's potential to produce high-quality parts.
A balanced configuration also prevents wear and tear on critical components, ensuring a longer lifespan and consistent performance over time.
Programming five-axis machines is more complex than traditional 3-axis machining. Unlike 3-axis machines, which only move along three axes, five-axis machines require programming for both the cutting tool and the workpiece along five axes. This extra complexity adds a layer of difficulty, especially when dealing with intricate part geometries.
CAD/CAM software plays a key role in this process. It allows designers to create detailed 3D models of the part, which are then converted into G-code—a set of instructions that the machine follows to make precise cuts. However, creating the right G-code requires careful planning to ensure the cutting tool moves correctly across all five axes.
One of the biggest challenges in five-axis programming is handling spatial geometric calculations. The need to coordinate the movements of multiple axes simultaneously can make precise machining difficult. Small errors in these calculations can result in defects in the final part.
Five-axis machines come with high upfront costs. The machines themselves are expensive, and so is the software required to program them. This can be a significant investment for businesses, especially small manufacturers. The cost is further increased by the need for highly trained operators and technicians.
Additionally, maintaining and calibrating a five-axis machine is more complex than traditional machines. Regular maintenance is essential to keep the machine running smoothly and avoid costly repairs. The complexity of the system, especially the rotational axes, requires more frequent calibration to ensure that the machine performs accurately.
These factors contribute to higher long-term operating costs. While five-axis machines improve production efficiency, the costs of ownership can be a barrier for some businesses.
Specialized CAM software is essential for programming five-axis machines. This software is designed to handle the complexity of five-axis movements, allowing users to input 3D models and generate the precise instructions needed to machine a part. Without this software, programming a five-axis machine would be nearly impossible.
Machine calibration is another critical factor in ensuring high-quality production. Five-axis machines have multiple moving parts, and even the slightest misalignment can affect the precision of the final part. Regular calibration is needed to maintain accuracy and avoid errors that could compromise the quality of the part being produced.
Failure to properly calibrate the machine can lead to defects, longer processing times, and increased waste. Proper calibration and the use of specialized software are crucial to achieving the best results from five-axis machining.
Investing in a five-axis milling and turning machine can provide a significant competitive edge for manufacturers. These machines improve both quality and efficiency, enabling the production of more complex parts with higher precision. This capability helps manufacturers stay ahead by offering high-quality products that meet increasingly demanding customer needs.
Five-axis machines can also help meet tighter deadlines. By performing multi-sided machining in a single setup, they reduce the need for multiple repositioning, saving valuable production time. Additionally, they can lower production costs by reducing labor hours, fixture costs, and the overall need for manual intervention.
As technology advances, the future of five-axis machining looks promising. Trends in automation and smart manufacturing are making these machines more efficient and easier to use. For example, AI-powered software and robotics are streamlining programming and machining processes, making it easier to achieve high precision with minimal human input.
The increasing accessibility of five-axis machines is expected to benefit small to medium-sized manufacturers. As these machines become more affordable and user-friendly, even smaller businesses will be able to take advantage of their capabilities. This can level the playing field, allowing smaller manufacturers to compete effectively in a market once dominated by larger companies.
Five-axis milling and turning machines offer key benefits, including precision, efficiency, and flexibility. Their ability to handle complex geometries makes them essential for advanced manufacturing. Businesses across various industries should consider adopting these machines to enhance their production processes.
For more information, reach out to Oturn Machinery, specialists in five-axis machining to explore how it can benefit your operations.
A: 3-axis machines move along the X, Y, and Z axes, while 5-axis machines add two rotational axes (A and B), enabling complex shapes and multi-angle cuts in a single setup.
A: Yes, five-axis machines can handle a wide range of materials, including metals, plastics, and composites, making them versatile for various industries.
A: Five-axis machining offers continuous movement along all five axes, while 3+2-axis machines lock the tool at an angle, leading to fewer setup changes and more flexibility with five-axis.
A: Five-axis machining is ideal for producing complex parts like molds, turbine blades, aerospace components, and intricate medical devices, all requiring high precision and tight tolerances.
