Heavy-duty CNC Horizontal Lathes: The Core Tool of Modern Manufacturing And Essential Knowledge

Introduction

Heavy-duty CNC horizontal lathes play a crucial role in modern manufacturing due to their unique structural design and high performance. Their robust bed is typically made of high-quality cast iron, undergoing precise aging treatment and machining to ensure exceptional rigidity and stability. This design not only effectively resists vibrations and impacts during cutting but also guarantees long-lasting and reliable machining accuracy.

As one of the core components of the lathe, the spindle system uses high-precision bearings and efficient drive motors to achieve high-speed rotation and precise speed control. Combined with the advanced lubrication and cooling system, the spindle can maintain excellent performance even under long periods of high load operation, providing stable and reliable power support for the processing of complex parts.

The CNC system is the "brain" of the horizontal CNC lathe, which integrates rich automation functions, such as automatic tool change, automatic tool setting, automatic compensation, etc., which significantly improves the processing efficiency and accuracy. In addition, some high-end CNC systems also support remote monitoring and intelligent fault diagnosis functions, operators can monitor the operating status of equipment through the network in real time, timely detect and resolve potential problems, minimizing equipment downtime, and further improve production efficiency and equipment utilization.

Wide Range of Applications

CNC horizontal lathes with heavy-duty are widely used across multiple critical industries:

Aerospace: Used for machining large engine shafts and transmission shafts which require extremely high dimensional accuracy and surface quality standards.

Shipbuilding: Processes key components of large ships, ensuring they meet stringent design standards.

Energy equipment: In the energy sector, used for manufacturing large turbines and generator components.

Automobile manufacturing: Machines engine crankshafts, camshafts, and other critical parts. Engineering machinery: Handles large hydraulic cylinders and piston rods.

Mold manufacturing: Performs precision machining on cavities and cores of large molds, providing high-precision base components.

Essential Knowledge for Maintenance

To ensure the efficient operation and long-term stability of CNC horizontal turning lathes, the following maintenance knowledge is indispensable:

1. Daily cleaning: Clean the machine surface, guide rails, tool holders, and other areas of chips and dirt after daily work. Regularly clean the interior of the machine to prevent debris accumulation.

2. Lubrication system inspection: Regularly check the oil level and quality in the lubricating oil tank to ensure sufficient oil volume and good oil quality.

3. Cooling system maintenance: Inspect the coolant level and quality, and regularly clean the cooling system's filters.

4. Electrical part inspection: Regularly check electrical components such as motors, switches, and cables to ensure secure connections.

5. Guide rail maintenance: Clean guide rail surfaces and apply an appropriate amount of guide rail oil to reduce wear.

6. Tool holder inspection and adjustment: Check the flexibility of the tool holder's rotation and the firmness of tool installation.

7. Tailstock inspection: Inspect the tail stock's offset, sleeve wear, and center alignment.

8. Transmission system inspection: Check the tension of belts and chains, as well as the wear of gears.

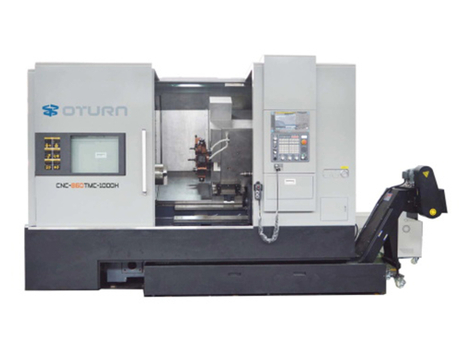

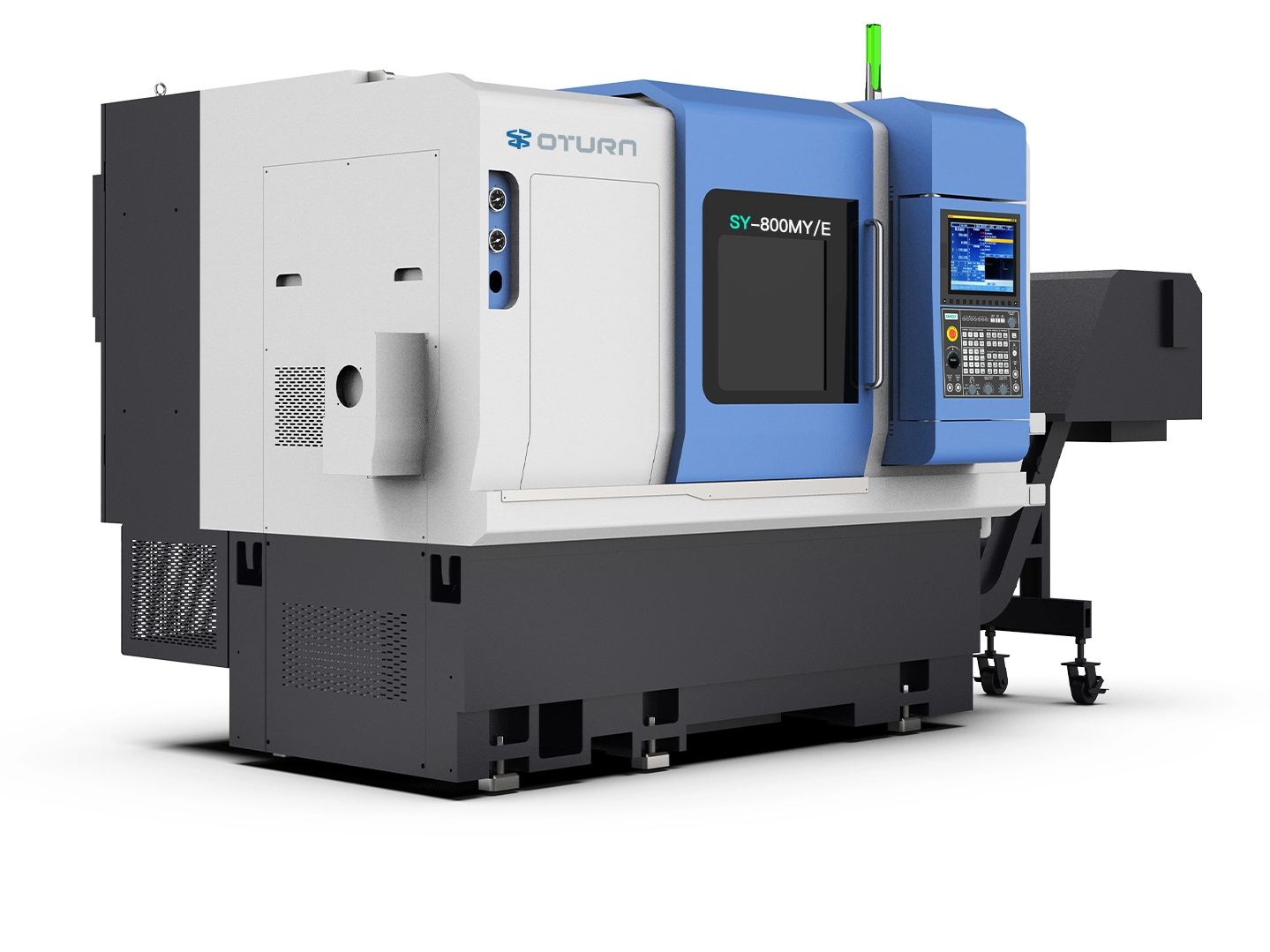

OTURN Machinery's heavy-duty CNC horizontal turning machines focus on high rigidity and precision machining. The machine features a 4-point taper fixed table coupling and an X-axis tilt design, ensuring stability and high accuracy during heavy cutting. Integrated spindle technology minimizes vibration, while spindle temperature control and hollow cooling systems maintain precision during prolonged high-speed operation.The accordion-style protective cover optimizes chip management, enhances workspace cleanliness, and provides an efficient, stable, high-precision machining solution for modern manufacturing.
