How Does A CNC Turning Machine Work?

Views: 0     Author: Site Editor     Publish Time: 2025-07-16      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

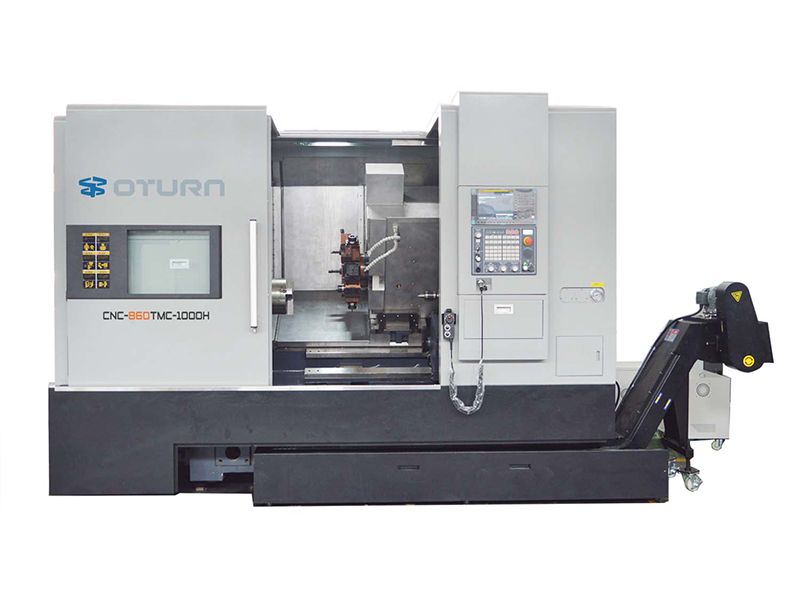

When you use a CNC turning center, you see the machine rotate your workpiece at high speed. The turning tool removes material with precision. Computer control ensures each part matches your specifications. You achieve consistent results, even with complex shapes. This technology makes your production process efficient and reliable.


Key Takeaways

  • Secure the workpiece firmly using the right fixture to ensure safety and precise machining.

  • Choose the correct spindle speed and turning tool material to balance surface finish, tool life, and production speed.

  • Use CNC automation and sensors to achieve consistent, high-quality parts with less manual effort.


CNC Turning Center: Step-by-Step Process

Securing the Workpiece

You begin every turning operation by securing the workpiece. This step ensures safety and accuracy throughout the machining process.

Proper clamping prevents movement, reduces accident risks, and guarantees precise results.

  • Securely clamp the workpiece to the machine table.

  • Use the right fixture for your part. Common options include:

    • Turning fixtures: Grip cylindrical parts like shafts and rods.

    • Lathe fixtures: Chucks, faceplates, and collet systems hold workpieces firmly.

    • Collet fixtures: Clamp round parts with high precision and quick setup.

    • Mandrels: Expand inside the part to grip the internal diameter.

    • Rotary fixtures: Provide rotation and enable precise indexing.

Loose workpieces can detach, causing damage to the machine or turning tools. Always double-check your setup before starting the CNC turning center.

Rotating the Material

Once you secure the workpiece, the CNC turning center rotates it at a controlled speed. The spindle speed depends on the material, part diameter, and desired surface finish.
You can refer to the table below for typical spindle speed ranges:

Spindle RangeTypical RPM Range (rpm)Example OperationDiameter (inches)Surface Speed (sfm)Calculated RPM
Low Range20 - 1,500Roughing1500~1,910
Low Range20 - 1,500Roughing4800~764
Middle Range40 - 2,800Roughing (smaller diameters)2.125800>1,400
High Range45 - 4,500FinishingN/AN/AN/A

Higher spindle speeds can improve surface finish by reducing roughness, but excessive speeds may cause overheating and tool wear. Lower speeds extend tool life but slow down production. You must balance speed and feed rate to achieve the best results.

Tool Movement and turning

The turning tool shapes your part as the workpiece spins. You select the tool material based on the workpiece and the operation.
Common turning tool materials include:

  • High-Speed Steel (HSS): Tough and wear-resistant, ideal for roughing and semi-finishing.

  • Cemented Carbide: Harder than HSS, handles higher speeds and temperatures, increases material removal rates.

  • Ceramics and Silicon Nitride: Withstand very high temperatures, perfect for demanding, high-speed jobs.

  • Cubic Boron Nitride (CBN): Excellent for turning hardened steels at high speeds.

  • Diamond Tools: Best for non-ferrous materials, deliver superior surface finishes.

You also consider coatings like Chemical Vapor Deposition (CVD) to extend tool life and improve performance.

The right tool material and coating help you achieve high efficiency, longer tool life, and better surface quality.

CNC Control and Automation

The CNC turning center uses computer control to automate every step. You program the machine to follow exact paths and dimensions.
Automation improves repeatability and reduces human error. The system guides the turning tool with precision, ensuring each part matches your design.

  • Robotics handle repetitive tasks like loading and unloading materials.

  • Automatic Tool Changers (ATC) switch tools quickly, reducing downtime.

  • Pallet systems automate material handling, keeping the process efficient.

  • Sensors and feedback systems monitor turning forces, vibrations, tool wear, and part dimensions in real time.

Advanced sensors, such as electronic touch probes and laser measurement systems, provide continuous feedback. The CNC turning machine adjusts automatically to maintain tight tolerances and consistent quality.

You benefit from reliable, high-quality parts and efficient production with minimal manual intervention.


Main Components of a CNC Turning Center

Chuck and Spindle

You rely on the chuck and spindle to hold and rotate your workpiece with precision. The spindle sits inside the headstock and connects to a powerful motor. The chuck grips the material securely, ensuring stability during machining. Different chucks suit different jobs. The table below shows common types and their applications:

Chuck TypeGripping MechanismApplications and Advantages
Two-Jaw ChuckTwo independent jawsHolds odd-shaped or asymmetrical parts
Three-Jaw ChuckThree self-centering jawsBest for round workpieces and high-volume production
Four-Jaw ChuckFour independent jawsUseful for irregular shapes and fine-tuning
Six-Jaw ChuckSix jaws for even pressureIdeal for delicate or thin-walled parts
Magnetic ChuckMagnetic forceHolds ferromagnetic, flat workpieces
Vacuum ChuckNegative pressureSecures large, flat, or delicate non-magnetic parts
Power ChuckHydraulic or pneumaticEnables fast, automated clamping
Hydraulic ChuckHydraulic clamping with vibration dampingDelivers strong grip and high accuracy

Turning Tool and Tool Post

You mount your turning tools on the tool post. Quick change systems let you swap tools rapidly, reducing downtime and boosting efficiency.

  • Quick change tooling allows you to remove and replace tools outside the machine.

  • Sister tools eliminate the need for recalibration.

  • Double clamping units increase tool positions, so you change tools less often.

  • Automatic tool changers enable unmanned production and higher output.

Bed and Carriage

The bed forms the solid foundation of your CNC turning center. It supports all other components and absorbs vibrations. The carriage moves along the bed, carrying the tool post and turning tools. This movement ensures accurate turning and smooth operation.

CNC Controller

You interact with the CNC controller to program and operate the machine. Modern controllers offer user-friendly interfaces and advanced software. You can create programs visually or use flexible G-code for custom tasks. Integrated CAD/CAM features and simulation tools help you optimize your machining process and adapt to different production needs.


CNC Turning Operations and Comparisons

Common CNC Turning Operations

You use a CNC turning center to perform a wide range of operations. Each operation shapes your part for a specific function or requirement. The table below highlights the most common CNC turning operations you will encounter in manufacturing:

CNC Turning OperationDescriptionTypical Components Produced
Precision TurningShapes cylindrical parts by removing material as the workpiece rotates.Shafts, rollers, spindles
ThreadingCreates uniform threads for fastening and assembly.Screws, bolts, fasteners
GroovingCuts grooves or recesses for assembly or function.Custom profiles, grooves on shafts
Complex Geometry MachiningProduces intricate shapes with multi-axis control and high precision.Housings, bushings, connectors

You see these operations in industries like automotive, aerospace, electronics, and medical devices. High precision and consistency matter most in these fields.

CNC Turning vs. CNC Milling

You may wonder how CNC turning compares to CNC milling. The table below outlines the main differences:

AspectCNC Turning (Lathe)CNC Milling
ProcessRotates the workpiece against fixed turning toolsHolds the workpiece stationary; rotates tools
Suitable forCylindrical or conical partsFlat surfaces, pockets, grooves, deep holes
Example outputsKnobs, crankshafts, screwsComplex objects with flat or 3D features
Machine movementWorkpiece rotates; tools remain fixedTools rotate; workpiece remains fixed
Primary advantageBest for uniform cylindrical shapesVersatile for complex shapes

You choose a CNC turning center when you need precise round or cylindrical features. For complex three-dimensional shapes, CNC milling works better.

Key Benefits of CNC Turning

You gain several advantages when you use a CNC turning center:

  • You achieve tight tolerances and high repeatability, even in large production runs.

  • Automation reduces human error and ensures consistent quality.

  • You minimize waste and improve material utilization with precise CAD programming.

  • Real-time monitoring helps you detect and correct deviations early.

  • You save costs and energy, making your process more sustainable.

Tip: Program files can be stored and reused, making it easy to scale from prototypes to mass production.


You rely on a CNC turning center to automate production and achieve precise results.

  • Automation reduces lead times and boosts throughput.

  • Industries like aerospace, automotive, and medical devices depend on these machines for critical parts.

  • Advanced digital controls, high-speed machining, and smart technologies make CNC turning centers essential for modern manufacturing.


FAQ

What materials can you machine with a CNC turning center?

You can machine metals, plastics, and composites.

· Always select the right turning tool for your material to achieve the best results.

How do you maintain accuracy in CNC turning?

You maintain accuracy by calibrating your machine, using quality tools, and monitoring tool wear.

· Regular inspections help you prevent errors and ensure consistent part quality.

Can you automate loading and unloading in CNC turning?

Yes, you can use robotic arms or pallet systems for automation.

· Automation increases productivity and reduces manual labor in your production process.
