Views: 0 Author: Site Editor Publish Time: 2025-06-11 Origin: Site

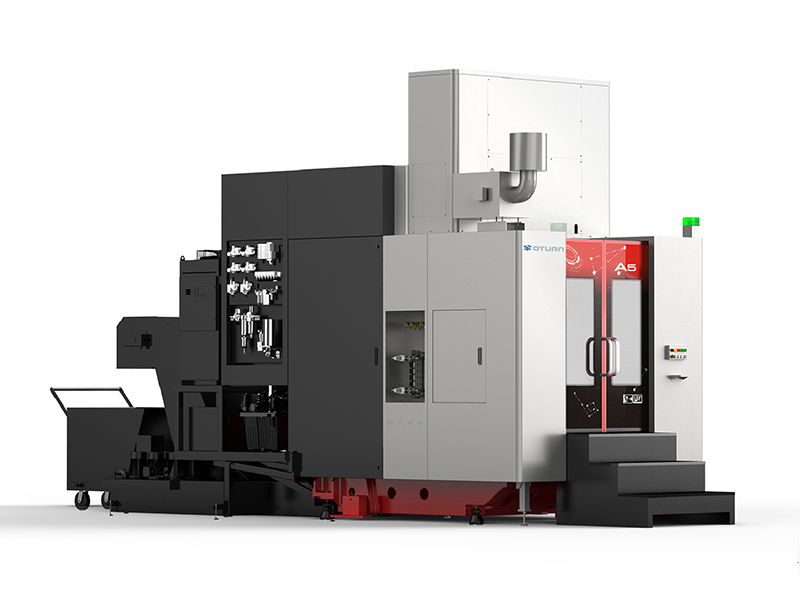

Investing in a 5-axis CNC machining center offers transformative benefits for precision manufacturing. For instance:
Batch sizes of 1-5 pieces see lead times reduced by up to 75%, from weeks to days.
Complex geometries become achievable without manual repositioning, boosting production efficiency.
These advancements ensure long-term value for industries like aerospace and mold manufacturing.
Check the spindle power for the materials you’ll cut. Strong spindle power is needed for hard materials like titanium. Softer materials like aluminum need less power.
Focus on machine strength and build quality for better accuracy. A strong machine stays steady and works well under pressure.
Pick a CNC controller that is easy to use and works with CAD/CAM. This makes programming easier and speeds up design to production.
The spindle power of a 5-Axis CNC Machining Center plays a pivotal role in determining its performance and versatility. It directly impacts the machine's ability to handle diverse materials and meet production demands efficiently. Selecting the right spindle power ensures you achieve optimal results for your specific manufacturing needs.
Spindle power dictates the range of materials your machine can process. High-powered spindles excel in machining tough materials like titanium and stainless steel, while lower-powered spindles are ideal for softer materials such as aluminum or plastics. This versatility allows you to adapt to varying project requirements without compromising on quality.
For instance, high spindle speeds enable precise machining of complex parts, reducing the need for secondary finishing. This capability is especially valuable in industries like aerospace and mold manufacturing, where intricate designs and tight tolerances are standard.
Your production goals should guide your choice of spindle power. Machines with higher spindle speeds significantly reduce cycle times, boosting productivity and profitability. The table below highlights key benchmarks that demonstrate the impact of spindle power on production efficiency:
| Benchmark | Description |
|---|---|
| Complex Part Machining | High spindle speeds allow for machining complex parts without secondary finishing. |
| Setup Efficiency | Five-axis capability enables machining five sides of a component in one setup. |
By aligning spindle power with your production needs, you can maximize the capabilities of your 5-Axis CNC Milling Machine. This ensures faster turnaround times and higher-quality outputs, giving you a competitive edge in the market.
When evaluating a 5-Axis CNC Machining Center, machine rigidity is a critical factor that directly influences precision, durability, and overall performance. A rigid structure ensures consistent accuracy and long-term reliability, even under demanding machining conditions.
Machine rigidity plays a pivotal role in maintaining precision during high-performance operations. A robust structure minimizes deformation caused by cutting forces, ensuring consistent results across various applications.
Long-term studies also validate the durability of rigid machines. Research on fiber-reinforced polymer composites demonstrates how environmental factors like aging and exposure impact mechanical properties. This underscores the importance of selecting a machine designed to withstand prolonged use without compromising precision.
The build quality of a machining center reflects its ability to deliver consistent performance over time. Machines adhering to international standards, such as ISO 9000, undergo rigorous quality assurance processes. These include continuous improvement practices and strict quality control measures to ensure every component meets exact specifications.
| Quality Assurance Metric/Standard | Description |
|---|---|
| ISO 9000 | A set of international standards for quality management and quality assurance. |
| Quality Control | Processes to ensure products meet specifications and customer expectations. |
| Continuous Improvement Culture | Encouraging teamwork and innovation to enhance production quality. |
By prioritizing machine rigidity and build quality, you can ensure your 5-Axis CNC Machining Center delivers exceptional precision and durability, even in the most challenging manufacturing environments.
The CNC controller serves as the brain of your 5-Axis CNC Machining Center, dictating its performance and usability. A well-designed controller ensures seamless operation, precision, and adaptability to complex machining tasks.
When evaluating CNC controllers, focus on features that enhance efficiency and precision. Controllers with advanced spindle speed management and axis configuration improve machining versatility and operational efficiency. A user-friendly interface simplifies workflows, while CAD/CAM integration ensures smoother transitions from design to production.
The table below highlights key features and their significance:
| Feature | Significance |
|---|---|
| Spindle Speed | Determines the efficiency of machining. |
| Axis Configuration | Enhances machining versatility. |
| Maximum Workpiece Size | Helps in selecting the right CNC lathe for larger projects. |
| Feed Rate | Directly impacts operational efficiency. |
| Accuracy | Affects the quality of finished products. |
| Control Systems | Advanced technologies improve performance and precision. |
| User-friendly Interface | Increases machining efficiency through ease of use. |
| CAD/CAM Integration | Facilitates smoother workflows in machining processes. |
By prioritizing these features, you can ensure your CNC machine delivers consistent results, even for intricate designs.
Ease of programming directly impacts productivity. Modern CNC controllers often include intuitive interfaces and pre-installed templates, reducing the learning curve for operators. Features like conversational programming allow you to input commands without extensive coding knowledge, saving time and minimizing errors.
Additionally, compatibility with popular CAM software ensures seamless integration into your existing workflow. This flexibility enables you to adapt quickly to new projects, enhancing overall efficiency. A controller that simplifies programming empowers your team to focus on delivering high-quality outputs.
An automatic tool changer (ATC) significantly enhances the operational efficiency of your 5-Axis CNC Machining Center. By automating tool swaps, it eliminates manual intervention, reducing downtime and streamlining production processes. This feature is especially valuable in high-volume manufacturing environments where speed and precision are critical.
Several performance metrics validate the efficiency improvements brought by ATCs:
Throughput: Tracks the production rate over time, ensuring deadlines are met consistently.
First Pass Yield: Measures the percentage of products manufactured correctly on the first attempt, minimizing rework.
Changeover Time: Reduces the time required to switch between tasks, enabling faster transitions.
Machine Downtime Rate: Helps identify and address unscheduled downtime, improving overall machine utilization.
Cycle Time: Monitors the average time to produce a product, optimizing workflows for better productivity.
The tool capacity of an ATC determines its ability to handle diverse machining tasks without frequent manual intervention. Selecting the right tool magazine type ensures your machine can accommodate varying project requirements while maintaining efficiency.
| Tool Magazine Type | Minimum Capacity | Maximum Capacity |
|---|---|---|
| Chain | 10-20 | 50 or more |
| Disk | 10 | 30 or more |
| Drum | 6-8 | 30 or more |
| Arm-style | 6-8 | 30 or more |
For industries like aerospace and mold manufacturing, larger tool capacities are essential to handle complex geometries and tight tolerances. Chain-style magazines, with capacities exceeding 50 tools, are ideal for high-volume operations requiring frequent tool changes. Compact drum or arm-style magazines suit smaller setups, offering flexibility without compromising performance.
By choosing an ATC with optimal tool capacity, you ensure uninterrupted workflows and maximize the capabilities of your 5-Axis CNC Machining Center. This investment not only boosts productivity but also enhances the machine's adaptability to future production needs.
Efficient cooling systems are essential for maintaining the performance of your 5-Axis CNC Machining Center. They regulate temperature, prevent thermal deformation, and ensure consistent machining accuracy. Selecting the right cooling system can significantly impact your machine's reliability and output quality.
Temperature fluctuations during machining can cause thermo-elastic deformations in critical components, leading to inaccuracies in the Tool Centre Point (TCP). Research shows that these thermal displacements are a major source of workpiece errors. Implementing advanced cooling measures, such as speed-controlled pumps, can stabilize temperatures and reduce energy consumption. This tailored coolant flow enhances thermal stability, ensuring your machine operates at peak performance.
Higher ambient temperatures also influence cooling efficiency. Systems like DX cooling and chilled-water cooling demonstrate varying exergy efficiencies based on environmental conditions.
Different cooling systems offer unique advantages for machining operations. Comparing their features helps you identify the best fit for your setup.
| Feature | Single Phase Immersion Cooling | Direct-to-Chip Cooling |
|---|---|---|
| Cooling Efficiency | Provides uniform cooling for high-density environments | Offers targeted cooling but may create hot spots |
| Maintenance | Complicated due to fluid handling | Easier access for maintenance |
| Infrastructure and Cost | Higher initial setup cost, specialized facilities needed | Easier integration into existing systems, lower costs |
| Environmental Isolation | Excellent isolation from environmental factors | Requires additional air cooling infrastructure |
| Fluid Management | Involves large volumes of dielectric fluid | Uses smaller volumes of coolant, easier management |
Single-phase immersion cooling excels in isolating components from environmental factors, making it ideal for high-density machining environments. Direct-to-chip cooling, on the other hand, offers targeted cooling with simpler maintenance and lower costs. By evaluating these options, you can select a system that optimizes your machine's performance and aligns with your operational priorities.
Seamless system integration is essential for maximizing the performance of your 5-Axis CNC Machining Center. A well-integrated system ensures smooth communication between hardware and software, reducing downtime and enhancing productivity. Modern integration tools streamline operations by offering centralized control over resources and processes.
Choosing the right CAM software is critical for optimizing the capabilities of your 5-Axis CNC Machining Center. These tools bridge the gap between design and production, offering features that enhance precision and efficiency.
Time Savings: CAM software reduces the time required for design and production, allowing you to meet tight deadlines.
Control and Accuracy: Advanced systems provide real-time error correction, ensuring high-quality outputs.
Integration: Seamless integration between CAD and CAM software improves workflow efficiency, minimizing disruptions.
Error Reduction: Built-in tools identify defects early in the design process, reducing rework.
Waste Reduction: Simulation capabilities detect design flaws before production, saving materials and costs.
For industries requiring intricate designs and tight tolerances, CAM software offers unparalleled control and flexibility. By investing in a solution that aligns with your production needs, you can streamline operations and achieve superior results.
Safety features in a 5-axis CNC machining center are essential for protecting operators and ensuring compliance with industry standards. These features not only safeguard personnel but also enhance operational reliability, making them a critical consideration during your purchase.
Operator safety should always be a top priority when selecting a machining center. Modern machines incorporate advanced technologies to minimize risks and create a secure working environment. For instance, systems like SafeDetect Technology use sensors to detect human presence and control machine operations accordingly. This reduces the likelihood of accidents during operation.
Physical barriers, such as guard fences, further enhance safety by restricting unauthorized access to the machining area. These fences act as a first line of defense, ensuring that only trained personnel can interact with the machine. Additionally, proximity-type light barriers monitor the surrounding area, automatically halting operations if someone enters the danger zone. These layered safety measures provide comprehensive protection for operators.
| Safety Feature | Description |
|---|---|
| SafeDetect Technology | Utilizes advanced sensors for automatic human detection and distance control, enhancing operator safety. |
| Guard Fences | Prevents unauthorized access to the machining area, ensuring a safer working environment. |
| Proximity Type Light Barriers | Provides additional safety by monitoring the area around the machine, preventing accidents. |
Adhering to industry safety standards ensures your CNC machining center meets regulatory requirements and operates reliably. Look for machines that comply with certifications such as ISO 13849-1, which governs the safety of machinery control systems. These standards validate the machine's ability to perform safely under various conditions.
Machines designed with safety in mind often include redundant systems to prevent failures. For example, dual-channel emergency stop systems ensure the machine halts immediately in case of an emergency. By choosing a machine that aligns with recognized safety standards, you not only protect your team but also reduce liability risks, ensuring peace of mind for your operations.
Maintaining thermal stability is essential for achieving consistent precision in your 5-axis CNC machining center. Temperature fluctuations during operation can lead to thermal deformation, impacting machining accuracy and long-term reliability.
Thermal fluctuations directly affect the precision of your machining operations. Localized thermal deformation often occurs under thermal imbalance conditions, causing deviations in theoretical machining positions. These deviations can compromise the accuracy of high-precision components, such as gears.
| Aspect | Description |
|---|---|
| Localized Thermal Deformation | Occurs under thermal imbalance, leading to machining position deviations. |
| Impact on Gear Accuracy | Main factor affecting gear machining precision. |
| Continuous Fluctuation | Prolonged imbalance causes accuracy inconsistencies. |
For mass production, precision consistency becomes critical. Continuous thermal imbalance can result in fluctuating machining accuracy, especially for components requiring tight tolerances. By addressing these thermal effects, you ensure your machine delivers reliable results across all production cycles.
Effective thermal management minimizes the impact of temperature variations on your machining center. Advanced cooling systems and design features help regulate heat transfer and reduce thermal expansion. For example, modeling the thermal expansion coefficient as a temperature-dependent parameter allows for precise control over deformation.
| Aspect | Description |
|---|---|
| Heat Transfer Modes | Quantitative comparison of thermal behavior in ball screw systems. |
| Thermal Expansion Coefficient | Modeled as temperature-dependent for better control. |
| Thermal Error Relationship | Describes error transfer and transformation due to heat. |
| Critical Temperatures | Identifies key temperatures affecting screw shaft performance. |
| Nonlinear Function | Formulates thermal expansion into a nonlinear function of position and time. |
Implementing these measures ensures your machine maintains stability during prolonged operations. By investing in robust thermal management systems, you reduce the risk of deformation and enhance the overall precision of your machining center.
When purchasing a 5-Axis CNC Machining Center, understanding the balance between cost and return on investment (ROI) is essential. Evaluating both the upfront capital investment and ongoing operational expenses provides a clear picture of the financial implications. Machines with advanced features often come with higher price tags, but their ability to improve production efficiency by up to 25% can significantly enhance profitability.
A comprehensive ROI analysis should include factors like reduced downtime, lower maintenance costs, and operational savings from enhanced efficiency. For example, calculating the payback period helps you determine how quickly the machine will recover its initial cost. Additionally, estimating lifecycle costs ensures that the investment aligns with your long-term financial goals.
Cost-benefit analyses also allow you to assign monetary values to intangible benefits, such as improved product quality or faster turnaround times. This approach helps you identify the break-even point and make informed decisions about your purchase. By focusing on ROI, you can ensure that your investment in a machining center delivers measurable financial benefits over time.
Beyond the purchase price, hidden costs can impact the total cost of ownership for a 5-Axis CNC Machining Center. These costs often include installation, training, software updates, and energy consumption. Ignoring these factors can lead to unexpected expenses that strain your budget.
For instance, installation may require modifications to your facility, such as reinforced flooring or upgraded electrical systems. Operator training is another critical expense, as skilled personnel are essential for maximizing the machine's capabilities. Regular software updates and maintenance contracts also contribute to ongoing costs, ensuring the machine operates efficiently and remains compatible with evolving technologies.
Energy consumption is another factor to consider. Machines with energy-efficient designs may have higher upfront costs but can reduce utility expenses over time. By accounting for these hidden costs, you can develop a more accurate budget and avoid financial surprises. This proactive approach ensures that your investment remains financially viable throughout its lifecycle.
Reliable after-sales support ensures the long-term performance of your 5-Axis CNC Machining Center. A dependable service network minimizes downtime, enhances operational efficiency, and extends the machine's lifespan. Companies that prioritize regular maintenance often experience significant improvements in productivity.
Machine uptime increases by 25%, reducing unexpected interruptions.
Operational efficiency improves by 20%, showcasing the value of routine servicing.
Output rates rise by 15%, linking maintenance investments to higher productivity.
| Statistic Description | Value | Impact |
|---|---|---|
| Increase in machine uptime | 25% | Reduces unexpected downtime and optimizes efficiency |
| Increase in operational efficiency | 20% | Demonstrates advantages of routine maintenance |
| Improvement in output rates | 15% | Correlates maintenance expenditure with productivity gains |
To maintain reliability, follow essential maintenance practices. Regularly check for oil leaks, lubricate moving parts, and inspect the coolant system. Calibrate the machine’s accuracy and tighten bolts to ensure stability. Testing emergency stop systems further safeguards operations. Even the most advanced machines require consistent care to prevent issues like spindle wear or hydraulic failures.
Comprehensive warranty and training programs are vital for maximizing the value of your investment. A clear warranty policy protects you from unexpected repair costs, while streamlined claims processing ensures minimal disruptions. Reliable brands often provide excellent customer service throughout the warranty period, fostering trust and satisfaction.
Training programs empower your team to operate the machine efficiently. Well-structured sessions reduce operational errors and downtime, enhancing overall productivity. Studies show that manufacturers offering robust training and support see increased customer retention rates, which can boost profits by up to 95%. Additionally, these programs strengthen customer relationships and provide valuable insights for future product development.
To optimize your experience, choose a manufacturer that offers both warranty clarity and effective training. This combination ensures your 5-Axis CNC Machining Center operates at peak performance while minimizing operational risks.
Each checklist item plays a vital role in ensuring you select the right 5-Axis CNC Machining Center for your needs. From spindle power to after-sales support, these factors directly impact precision, efficiency, and long-term value. By carefully evaluating these aspects, you can confidently invest in a machine that meets both current and future production demands.
5-axis CNC machining centers excel in aerospace, automotive, mold manufacturing, and electronics industries. They handle complex geometries, tight tolerances, and high-volume production efficiently.
Evaluate your material types and production goals. High spindle power suits tough materials like titanium, while lower power works for softer materials like aluminum.
Yes, advanced safety features protect operators and ensure compliance with industry standards. They reduce risks, enhance reliability, and safeguard your investment in high-performance equipment.
