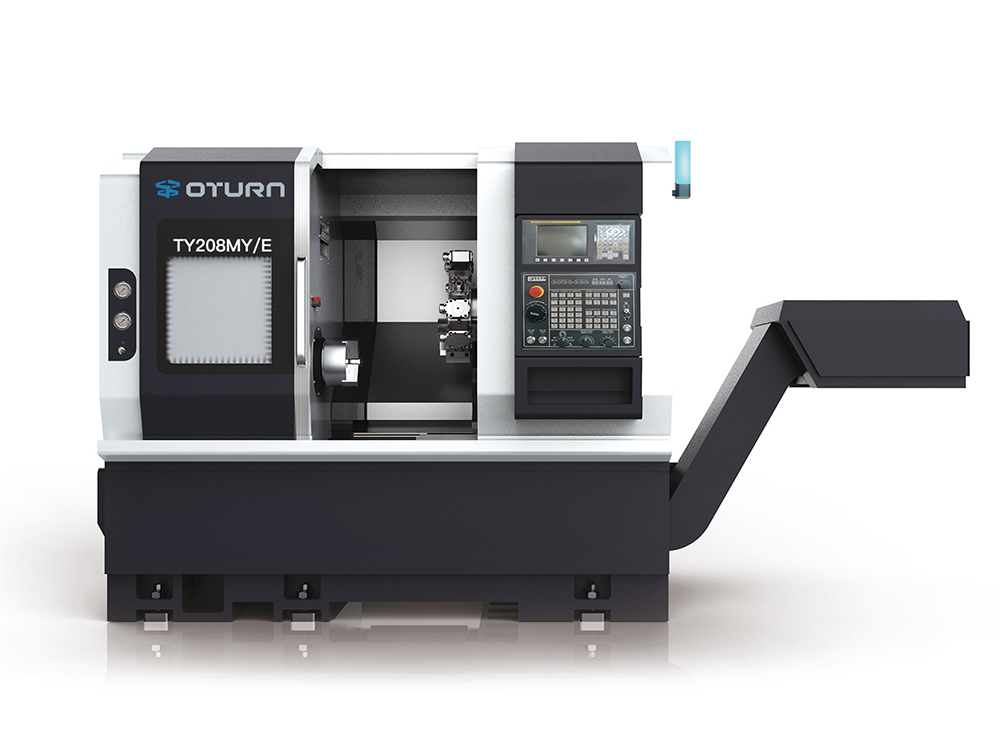

As a critical piece of equipment in modern manufacturing, the stability of the spindle system in linear guide CNC lathe directly affects machining accuracy and production efficiency. However, various spindle system faults often occur during actual operation, seriously impacting production schedules. Thoroughly analyzing the causes of these faults and implementing effective solutions is key to ensuring stable equipment operation.
· Spindle not rotating
· Uncontrolled spindle speed
· Brake failure
· Immediate stop after startup
For spindles without a frequency converter, failure to rotate may be caused by mechanical transmission faults (such as broken belts or the machine is in neutral), power supply issues (such as missing or reversed phases in the three-phase power), circuit connection errors, missing control signals, or damaged components. For spindles with a frequency converter, additional causes may include disabled inverter parameters, incorrect wiring between the system and inverter, abnormal analog voltage output, open circuits or damaged components in the power control section, or improper parameter settings. Each of these should be checked and adjusted accordingly.
Uncontrolled spindle speed in non-inverter gear-shift spindles is often due to missing gear-shift control signals, wiring faults, damaged or short-circuited spindle motors, or the CNC machine not being in gear. It is necessary to check system signal outputs, wiring connections, spindle motor condition, and gear settings.
Brake failure may result from abnormal brake circuits, damaged power components, insufficient braking time, missing brake signals, or incorrect inverter parameter settings. Relevant circuits and components should be inspected, braking time adjusted, and components replaced or parameters reset if necessary.
Immediate stop after startup can be caused by insufficient system pulse time, the inverter being in jog mode, damaged control components in the spindle circuit, spindle motor short circuits triggering thermal relay protection, or control circuits lacking self-locking with parameters set to pulse signal output. System parameters should be adjusted, inverter and control components inspected, short circuits identified, and control settings modified.
For these faults, a scientific diagnostic process should be followed: observe fault symptoms, combine CNC equipment principles and experience, gradually identify causes, and implement targeted solutions. Meanwhile, strengthening routine maintenance and regularly inspecting component connections and performance can effectively reduce fault rates and ensure stable operation of the spindle system.
1. How to detect potential faults in the spindle system of linear guide CNC lathes through daily monitoring?
It is recommended to regularly monitor spindle temperature, vibration, and current changes using tools such as vibration analyzers and infrared thermometers. By combining historical data, abnormal trends can be identified early to prevent faults.
2. After a spindle system fault occurs, how can production be quickly restored to minimize downtime?
A detailed emergency plan should be developed, including spare parts preparation, rapid fault diagnosis procedures, and a technical support response team to ensure quick fault identification and repair.
3. What precautions should be taken when replacing or repairing key components of the spindle system?
Replacement must strictly follow the equipment manufacturer’s instructions to ensure correct part specifications and installation accuracy, avoiding the introduction of new errors. During repair, thorough cleaning and lubrication should be performed to prevent secondary damage.
