Looking for a machine that combines precision and efficiency? Vertical machining centers (VMCs) are essential in modern manufacturing. They offer high-speed machining and superior accuracy for a variety of industries. In this post, we’ll cover the key components of VMCs, how they work, their applications, and important considerations when selecting the right machine for your needs.

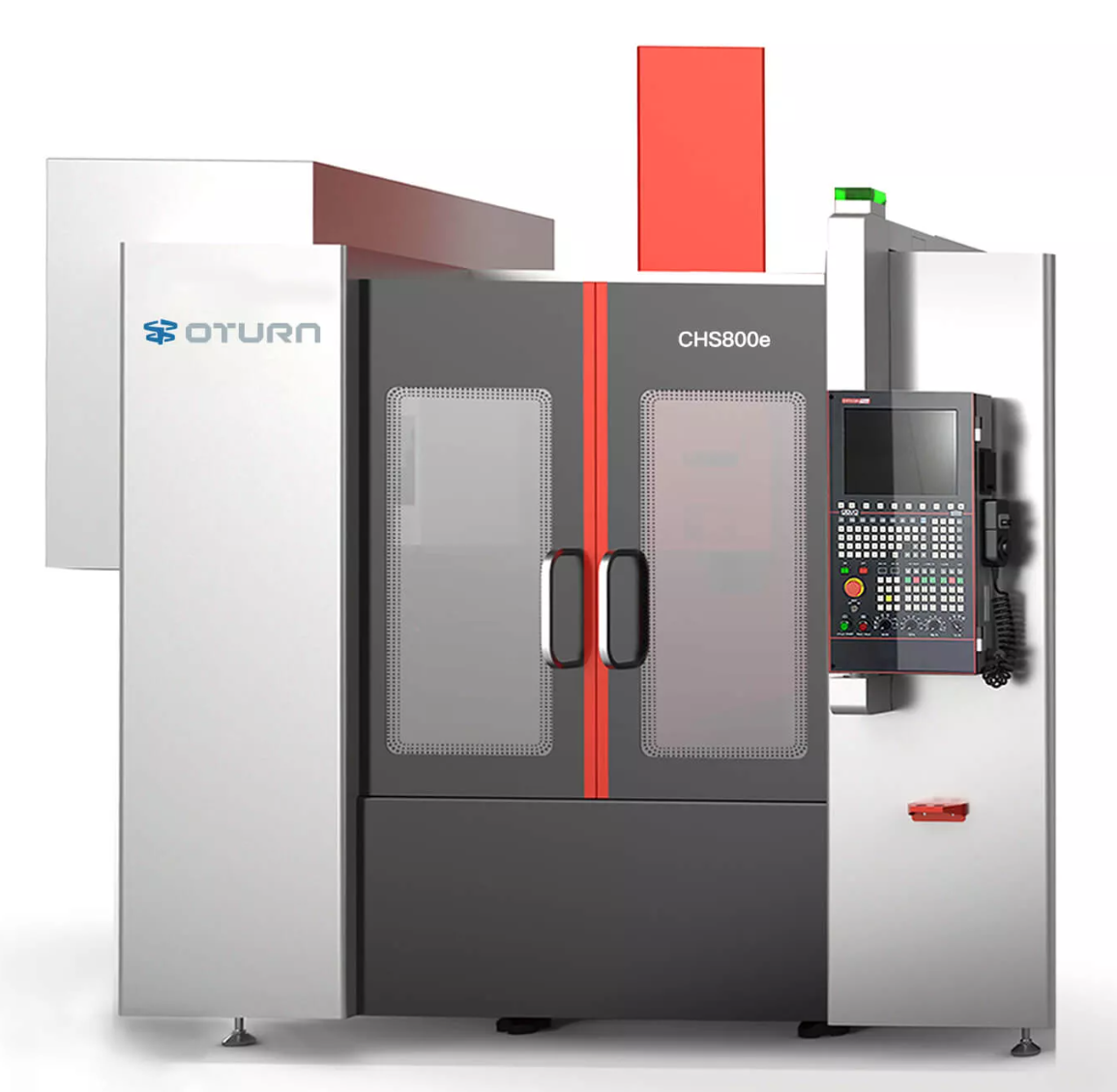

A Vertical Machining Center (VMC) is a CNC (Computer Numerical Control) machine that uses a vertically oriented spindle to perform various machining operations. The tool, attached to the spindle, moves in multiple directions while the workpiece remains stationary or moves along the X, Y, and Z axes. This design is ideal for operations like milling, drilling, and tapping, offering high precision and versatility.
Spindle
The spindle rotates the cutting tools at high speeds, enabling precise material removal. It’s a vital component for cutting different materials and shapes.
Worktable
The worktable holds the workpiece and moves it along the X, Y, and Z axes. It ensures the part is positioned correctly for machining.
CNC Control Panel
The control panel is the heart of the VMC, where operators input G-code, and the machine’s actions are automated. It controls movements, tool changes, and operations based on programmed instructions.
Tool Changer
Automatic tool changers increase productivity by allowing the machine to switch tools without manual intervention, reducing downtime between operations.
Coolant System
The coolant system helps maintain the temperature of both the tools and workpieces, preventing overheating and ensuring smooth cutting operations.
3-Axis VMCs
Ideal for basic milling tasks, 3-axis machines move in three directions (X, Y, Z) and are commonly used for simpler parts.
4-Axis VMCs
These machines add an additional rotational axis, providing more flexibility for machining complex parts, especially those requiring more angular cuts.
5-Axis VMCs
5-axis machines can move the workpiece and tool in five directions, enabling the creation of intricate and highly detailed parts with reduced setups.
Vertical Machining Centers (VMCs) work by using rotating cutting tools to remove material from the workpiece. The spindle rotates at high speeds, while the tool moves along the X, Y, and Z axes. The machine can perform various tasks such as milling, drilling, and tapping to shape materials like metal, plastic, and composites. The spindle and tool are responsible for material removal, ensuring precision with each cut.
VMCs operate along three main linear axes:
X-axis moves the workpiece left and right.
Y-axis moves the workpiece forward and backward.
Z-axis moves the tool up and down.
In 4-axis and 5-axis machines, additional rotary axes are included to provide rotational movement, allowing for more complex cuts. This added mobility increases precision and versatility, making VMCs ideal for intricate designs.
CNC controls and G-code automate the machining process, translating design files into machine movements. This allows for precision cuts and repeatability. VMCs also integrate features like automatic tool changers, pallet changers, and robotic arms to enhance productivity. These automated systems minimize downtime, improve efficiency, and allow for continuous operation.
In the aerospace industry, Vertical Machining Centers (VMCs) are essential for producing lightweight, high-precision parts such as turbine blades and engine components. These parts must meet strict tolerance requirements for safety and performance, and VMCs are designed to handle such complex, high-accuracy machining tasks.
VMCs play a key role in manufacturing critical automotive components, including engine blocks, chassis parts, and transmission components. Their ability to perform complex cuts with high precision makes them indispensable for producing durable, high-performance parts that meet industry standards.
In the medical field, CNC vertical machining is used to create implants, prosthetics, and surgical instruments. Precision and cleanliness are critical, and VMCs are equipped to produce complex, customized parts for medical devices, ensuring they meet strict regulatory requirements.
CNC vertical machining centers are used in electronics manufacturing for producing parts like enclosures, connectors, and other specialized components. VMCs provide the precision necessary for the intricate parts used in electronic devices, ensuring reliability and proper fit for complex systems.
VMCs are also valuable in rapid prototyping and small-batch production for custom parts. Their versatility allows manufacturers to quickly modify designs and produce high-quality prototypes, making them ideal for industries that require fast turnaround and high precision.
The size of the VMC you choose should be based on the size of the parts you intend to machine. Consider the worktable dimensions to ensure it can accommodate your workpieces. Also, check the machine's load capacity to ensure it can handle the weight of your parts during machining without compromising accuracy or performance.
Selecting the right spindle power is crucial for machining different material types. A more powerful spindle can handle tougher materials like steel, while lower power may be sufficient for softer materials. Spindle speed also impacts cutting performance and surface finish. Higher speeds are ideal for fine finishes and quick material removal.
When choosing between 3-axis, 4-axis, or 5-axis machines, consider the complexity of the parts you need to create. A 3-axis machine is great for simple designs, while 4-axis and 5-axis machines offer greater versatility for complex geometries. Automation features like tool changers and robotic arms enhance efficiency by reducing manual intervention and speeding up the machining process.
To achieve the required precision and tolerance for your parts, choose a VMC that offers high rigidity and precision. The machine's rigidity helps maintain stability during operations, ensuring high-accuracy cuts even for complex and intricate designs. If your parts require tight tolerances, ensure the VMC has the necessary capabilities to meet those specifications.
Ongoing maintenance is essential for keeping your VMC in top working condition. Look for machines that come with comprehensive after-sale support, including warranties and service contracts. Regular maintenance checks help prevent downtime and costly repairs, ensuring the machine operates smoothly and efficiently.
Vibrations, tool wear, and misalignment are common issues with VMCs. These problems can lead to poor machining quality, such as inaccurate cuts and rough surface finishes. Vibration often occurs due to improper setup or worn components, affecting precision. Regularly checking for signs of tool wear or misalignment early can prevent these issues from escalating and maintain machining quality.
To keep your VMC running smoothly, regular maintenance is essential. Clean and lubricate critical components like the spindle, tool changer, and coolant system to ensure they function properly. Periodic calibration is also crucial to maintain machine accuracy. By adjusting settings and checking alignment, you can prevent errors and ensure precise machining over time.
If you encounter issues such as incorrect part dimensions or poor surface finish, first check for misalignment or tool wear. These can often be resolved by recalibrating the machine or replacing worn tools. If problems persist, consult an expert or schedule a service visit to avoid further disruptions and maintain optimal performance.
The upfront costs of purchasing a VMC can be significant, covering the machine, setup, and installation. However, the long-term savings it offers through increased efficiency, reduced downtime, and precise machining quickly outweigh the initial investment. High precision leads to fewer errors and less waste, while faster cycle times reduce operational costs, providing a clear cost-saving advantage.
Choosing the right VMC for your specific production needs can boost production rates and reduce material waste. By selecting a machine that fits your workload and precision requirements, you can achieve higher throughput with less energy and time. Additionally, considering long-term service costs and the availability of ongoing support ensures your VMC operates efficiently over its lifetime, further enhancing ROI.
Vertical Machining Centers (VMCs) are essential for precise, efficient manufacturing across industries. They offer versatility, high precision, and improved productivity. When selecting the right VMC, consider your production needs, part complexity, and budget. Evaluate machines based on long-term goals to ensure efficiency, reduce costs, and maximize profitability.
A: Vertical machining centers are highly accurate, capable of maintaining tight tolerances for precision machining. Their accuracy is crucial for industries like aerospace and medical, where even the smallest deviation can affect functionality.
A: Yes, vertical machining centers are versatile and can handle both rough and fine machining tasks. They can remove large amounts of material in rough cuts and perform high-precision tasks for fine finishes.
A: Vertical machining centers can machine a wide variety of materials, including metals like aluminum, steel, titanium, and various plastics, making them suitable for many industries.
A: Regular maintenance is essential for optimal performance. It’s recommended to perform routine checks, cleaning, and lubrication every few weeks, with more extensive maintenance every few months depending on usage.
