The evolution of industrial manufacturing has been defined by the constant pursuit of precision, especially when dealing with massive, heavy-duty components. Traditional horizontal lathes often struggle with the structural deformation caused by gravity when clamping large-diameter workpieces. To address this, the manufacturing sector pivoted toward vertical designs, leading to the widespread adoption of the vertical turret lathe. These machines redefine how heavy industry approaches turning, boring, and facing operations by utilizing a vertical spindle orientation that leverages gravity rather than fighting it.

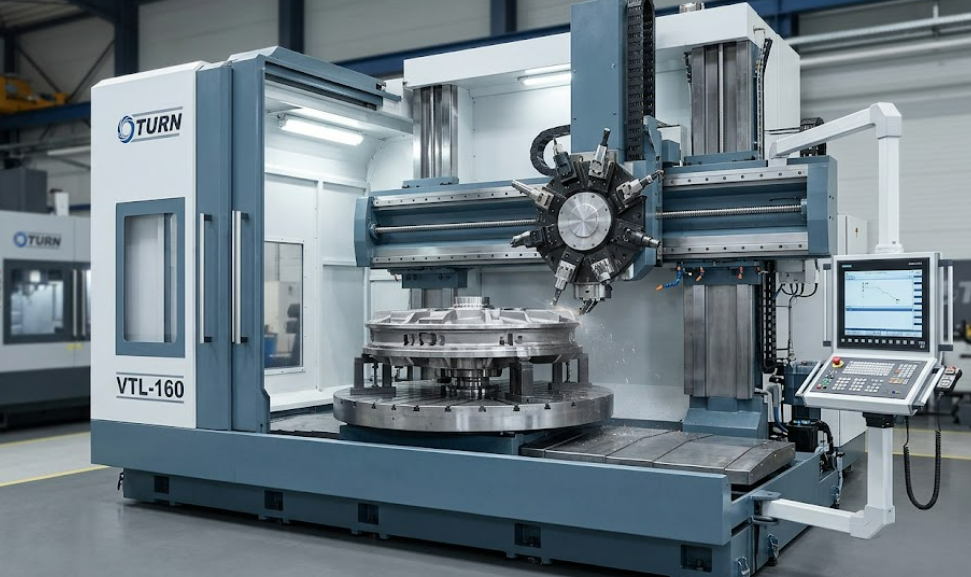

A Vertical Turret Lathe is a heavy-duty machine tool designed to hold and rotate large, heavy workpieces on a horizontal table (spindle) while the cutting tools move vertically and horizontally on a turret. By orienting the workpiece vertically, these machines provide superior stability for machining oversized parts like turbine housings, engine blocks, and gears, ensuring high precision and safety through the integration of a CNC Turret Lathe control system.
Understanding the mechanics and strategic advantages of these machines is essential for any facility looking to optimize its production of large-scale components. This guide explores the intricate features, diverse applications, and critical selection criteria for vertical machining solutions. By examining the synergy between robust mechanical engineering and modern control systems, we will uncover why these lathes remain a cornerstone of sectors ranging from aerospace to energy production.
Vertical Orientation
Turret Configuration
Large Workpiece Capacity
Versatile Machining
Heavy-Duty Turning
Boring and Facing
Tapered Machining
Precision Machining of Large Components
Considerations in Choosing a Vertical Turret Lathe
Table Size and Load Capacity
Turret Configuration
Control System and Automation
The primary features of a vertical turret lathe include its upright spindle orientation for better stability, a multi-station turret for rapid tool changes, and a massive table capacity designed to support workpieces that are too heavy for traditional horizontal machines.
The hallmark of this machine is its vertical spindle. In a standard horizontal setup, the weight of a large workpiece creates a cantilever effect, leading to spindle deflection and vibrations that compromise accuracy. In a vertical configuration, the weight of the part is distributed downward directly onto the machine's foundation. This natural alignment allows for higher rotational speeds and deeper cuts without the risk of the part "sagging" or losing its center.
Modern machines utilize a sophisticated turret system that can hold multiple cutting tools simultaneously. This allows for complex sequences—such as roughing, finishing, and threading—to be performed in a single setup. For advanced manufacturing needs, utilizing a CNC Double Spindle Double Turret Lathe configuration can drastically reduce cycle times by enabling simultaneous operations on different surfaces of the workpiece. The turret's indexing speed and rigidity are vital for maintaining the tight tolerances required in B2B industrial contracts.
Unlike horizontal lathes that are limited by the "swing" over the bed, vertical lathes are categorized by their table diameter. These machines are built to accommodate diameters ranging from one meter to over ten meters. The massive cast-iron bases and heavy-duty bearings ensure that even when a 20-ton workpiece is spinning, the machine remains vibration-free. This capacity makes them indispensable for machining components that would simply be impossible to mount on any other lathe type.
Versatility is achieved through the integration of live tooling and C-axis control. A high-performance CNC Turret Lathe is no longer limited to simple turning; it can perform milling, drilling, and tapping operations. This "all-in-one" approach reduces the need to move heavy parts between different machines, which minimizes the risk of setup errors and significantly lowers labor costs. The ability to switch tools rapidly via the turret ensures that the machine spends more time cutting and less time idling.
Common applications for vertical turret lathes revolve around the processing of large-diameter, heavy, or awkwardly shaped components where high-torque metal removal and extreme geometric precision are required across sectors like aerospace, energy, and heavy equipment manufacturing.
In industries like mining and railway manufacturing, components such as wheels and large hubs require massive amounts of material removal. The vertical turret lathe excels here because its rigid structure can withstand the high cutting forces involved in heavy-duty turning. The chips naturally fall away from the workpiece due to gravity, preventing chip re-cutting and extending the life of the carbide inserts. This efficient chip management is a critical factor in maintaining a high-uptime production environment.
Facing operations on large flanges or boring deep internal diameters for pressure vessels require absolute flatness and concentricity. The vertical orientation ensures that the boring bar does not deflect under its own weight as it extends into the workpiece. For those looking to optimize their boring precision, understanding the methods and key points for turret center height adjustment is essential, as even a minor deviation in center height can lead to surface finish issues or dimensional inaccuracies in deep-hole boring.
Tapered components, such as those found in valve bodies or conical transition pieces for pipelines, are easily handled by CNC-controlled vertical lathes. The synchronized movement of the X and Z axes allows for the creation of perfect tapers without the need for complex manual attachments. Because the CNC Turret Lathe software manages the tool path, consistency is guaranteed across thousands of parts, which is a prerequisite for B2B suppliers who must adhere to strict ISO quality standards.
The energy sector relies on these machines for the production of wind turbine main frames and nuclear reactor components. These parts require a level of precision that contradicts their massive size. By utilizing a Double Spindle Double Turret system, manufacturers can machine both the inner and outer diameters of a large ring or housing simultaneously, ensuring perfect wall thickness and concentricity while doubling the output efficiency of the workshop.
Industry | Typical Components | Critical Requirement |
Aerospace | Jet engine casings, turbine discs | Thermal stability & high precision |
Energy | Wind turbine hubs, generator rotors | High load capacity |
Oil & Gas | Large valve bodies, wellhead connectors | High torque for tough alloys |
Railway | Locomotive wheels, axles | Rapid material removal |
Choosing the right vertical turret lathe requires a careful evaluation of the maximum workpiece dimensions, the required spindle torque for specific materials, and the sophistication of the CNC control system to ensure it meets current and future production demands.
The first step in selection is defining the maximum diameter and weight of your workpieces. You must choose a machine where the table diameter is slightly larger than your largest part to allow for proper clamping and clearance. Furthermore, the weight capacity of the spindle bearings is a hard limit; exceeding this will cause premature wear or catastrophic failure. It is also important to consider the "swing" clearance to ensure that the turret can move freely around the part without interference.
The choice between a single turret and a double turret depends on your volume and complexity. A single turret is often sufficient for simpler turning jobs, but for complex parts, a CNC Turret Lathe with live tooling capabilities offers a better return on investment. Furthermore, the precision of the tool indexing is paramount. Operators must be trained in adjusting turret center heights to ensure that every tool in the turret aligns perfectly with the spindle axis, which is vital for maintaining tool life and part quality.
In the modern B2B landscape, a machine is only as good as its software. The control system must be user-friendly yet powerful enough to handle 3D contouring and real-time monitoring. Automation features, such as automatic tool changers (ATC) and integrated probing systems, can significantly reduce downtime. A robust CNC Turret Lathe setup that integrates well with your existing CAD/CAM software will streamline the transition from design to finished part, ensuring that your facility remains competitive in an increasingly digital manufacturing environment.
In summary, the vertical turret lathe is an essential tool for high-precision machining of oversized components, offering unmatched stability, versatility through CNC integration, and the structural integrity required for heavy-duty industrial applications.
Throughout this guide, we have highlighted how the vertical design solves the inherent limitations of horizontal machining for heavy parts. From the fundamental physics of the vertical spindle to the advanced capabilities of the CNC Turret Lathe, these machines provide a reliable solution for complex manufacturing challenges. Whether you are performing heavy-duty turning or delicate boring, the rigidity and precision of the VTL platform ensure consistent results.
Success in using these machines depends not only on the hardware but also on meticulous setup and maintenance. Proper calibration, such as precision center height adjustment, is the difference between a high-quality component and a scrapped part. As industries continue to push the boundaries of scale and efficiency, the vertical turret lathe will remain at the forefront, evolving with new technologies to meet the demands of tomorrow's engineering marvels. By choosing the right configuration and maintaining strict operational standards, manufacturers can ensure long-term productivity and a significant competitive edge in the global market.
