Five-axis milling and turning machines are transforming modern manufacturing with unmatched precision and efficiency. But what makes them stand out from traditional machining methods?
In this post, we'll explore the key features of five-axis machines and you'll learn why they are considered game-changers in machining technology.

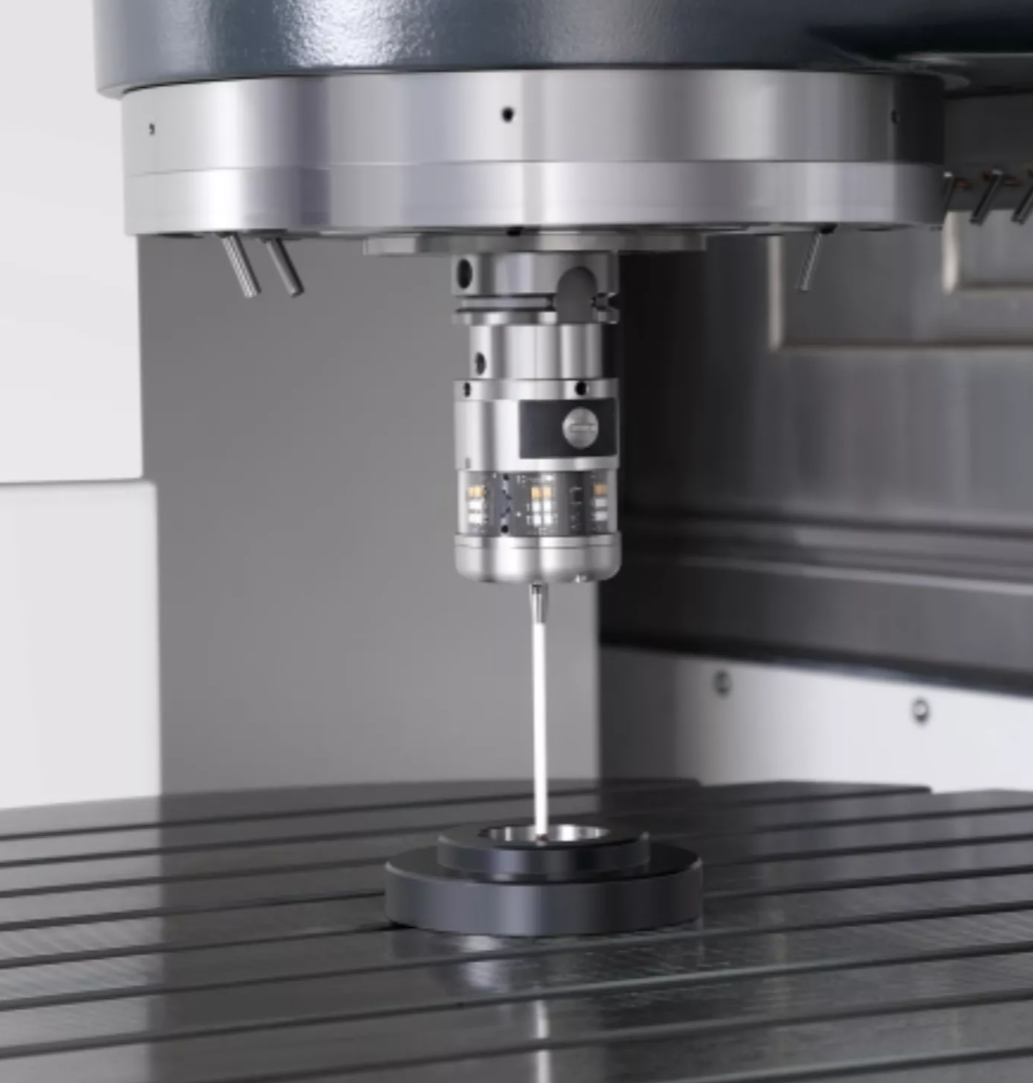

Five-axis machines stand out because they can move in five directions simultaneously, offering greater precision. The tool moves along the three linear axes (X, Y, Z) and the two rotational axes (A and B or C), allowing the cutting tool to approach a workpiece from multiple angles.
This simultaneous motion enables more flexibility in machining complex shapes. It also reduces errors, as the workpiece doesn’t need to be repositioned, cutting down on the chances of misalignment. The ability to access multiple sides of a part in one setup streamlines production, ensuring better accuracy.
To understand five-axis machining, it's important to know the difference between linear and rotary axes.
● Linear axes (X, Y, Z) allow the cutting tool to move back and forth, up and down, and side to side.
● Rotary axes (A, B, C) enable the workpiece or cutting tool to rotate, adding more directions of movement.
There are two main styles of five-axis machines:

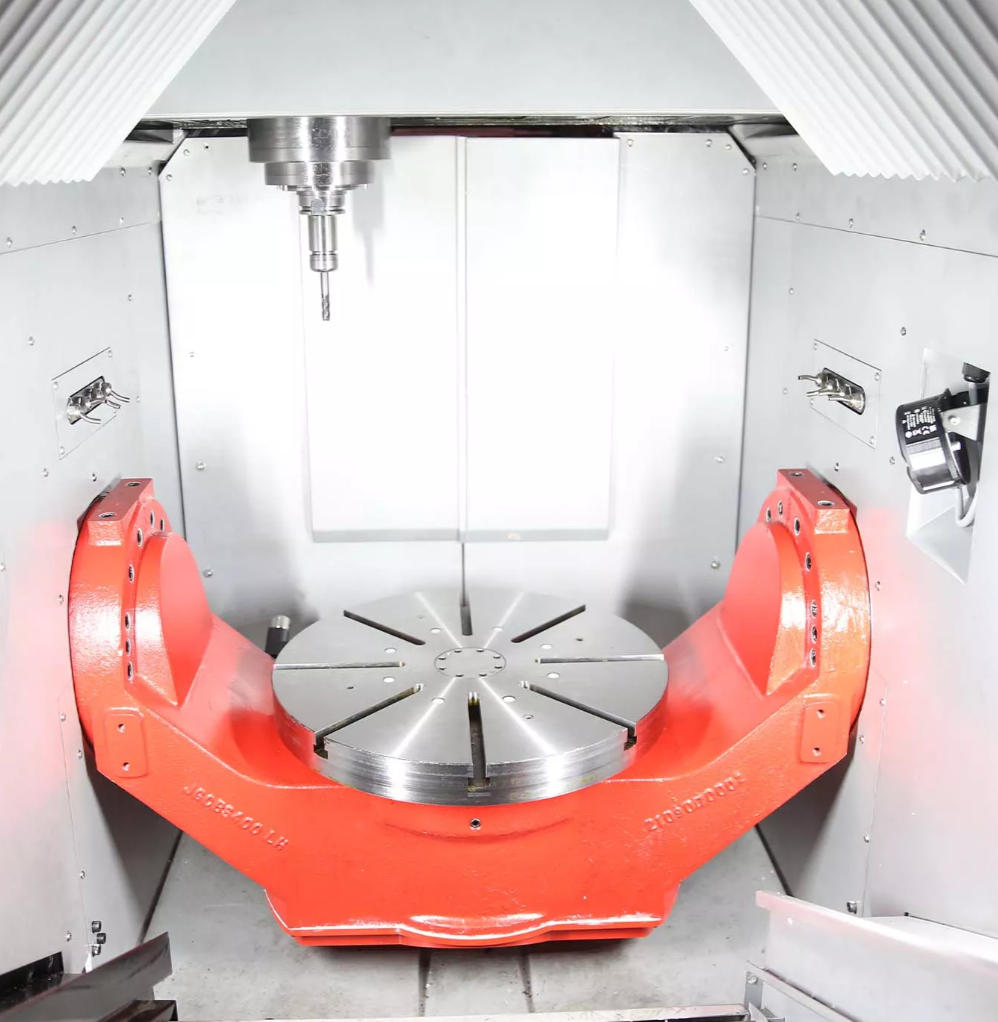

1. Trunnion style: The rotary axes (A and C) rotate the workpiece around the X and Z axes. This setup works best for large parts, offering better accessibility.
2. Swivel-rotate style: The B-axis rotates around the Y-axis, and the C-axis rotates the table. This design helps with heavier parts and allows for more stable machining.
Each configuration has its unique benefits, depending on the type of work being done.
One of the most powerful aspects of five-axis machines is their ability to complete complex parts in a single setup. Unlike traditional machines, which often require multiple setups and repositioning, five-axis machining eliminates this hassle.
This capability saves time, reduces machine downtime, and lowers the chances of errors. Parts like aerospace components or complex molds, which require intricate designs and tight tolerances, benefit greatly from "done-in-one" machining. For example, turbine blades or medical implants can be machined efficiently, without needing to be moved across various machines.
The fewer setups, the quicker the overall production time, and the higher the output.
Five-axis machines excel at achieving higher accuracy. The ability to keep the workpiece stationary and avoid multiple repositionings eliminates potential errors. Fewer setups mean fewer chances for misalignment, leading to more precise parts.
Additionally, these machines offer better surface finishes. The tool stays closer to the part, minimizing tool deflection and vibration. This results in smoother finishes, which is harder to achieve with traditional 3-axis machines that require repositioning.
One of the biggest advantages of five-axis machines is the ability to cut down cycle times. By machining from multiple angles in one setup, these machines can complete complex parts much faster. There's no need to pause for re-orienting the part, which speeds up the whole process.
Using shorter cutting tools also helps. Shorter tools produce higher cutting speeds and reduce vibrations, allowing the machine to cut faster and more accurately.
Five-axis technology improves tool life by optimizing tool paths. The ability to adjust the tool's position and keep it at the best cutting angle reduces wear. The machine's ability to make precise, consistent cuts leads to longer-lasting tools.
Additionally, fewer setups mean less material waste. Since the part doesn't need to be moved multiple times, there's less scrap, making the entire process more cost-effective.
Five-axis machines are unmatched when it comes to producing complex shapes and intricate geometries. Their ability to move in multiple directions at once means they can access every part of the workpiece without repositioning. This makes them ideal for parts with complex angles or curved surfaces.
Unlike traditional three-axis machines, which can only work on flat or simple geometries, five-axis machines can handle advanced designs like turbine blades, aerospace components, and medical implants. Parts that require multi-dimensional cuts, like those found in the aerospace or medical industries, can be made more efficiently and accurately.
Another key advantage of five-axis machines is their adaptability for different materials. Whether you are working with metals, plastics, or composites, five-axis technology offers precision that is hard to match.
For example, tough materials like titanium or Inconel, which are often used in aerospace or medical applications, can be machined with high precision. These materials are difficult to work with using traditional machines, but five-axis machines can handle them without sacrificing accuracy or efficiency. The ability to machine these materials without excessive tool wear or part deformation is a major benefit in industries where material properties are critical.
When comparing three-axis and five-axis machines, the main difference is in movement. A three-axis machine moves along three linear axes (X, Y, Z), while a five-axis machine adds two rotary axes (A and B or C). This additional movement allows five-axis machines to approach parts from multiple angles without repositioning.
Setup Time A three-axis machine often requires multiple setups to machine all sides of a part, while five-axis machines can complete complex parts in a single setup. This reduces time spent repositioning and ensures better accuracy.
Precision and Capability Five-axis machines excel at creating more intricate and complex parts, maintaining higher precision. They can machine parts with multiple angles and curved surfaces, which is impossible with a three-axis machine. However, if you're dealing with simpler, flat parts, a three-axis machine may suffice.
When to Use a 3-Axis Machine vs a 5-Axis Machine Use a three-axis machine for simple parts with fewer features, like flat surfaces or basic geometry. For intricate, multi-sided parts like aerospace components or medical implants, a five-axis machine is a better fit.
Costs Five-axis machines come with a higher upfront cost, from the purchase price to the required software and skilled operators. These machines are more expensive to maintain due to their complexity and advanced components.
Long-Term Benefits and ROI Despite the initial costs, five-axis machines offer significant long-term benefits. They reduce setup time, improve accuracy, and minimize waste. By producing parts faster and with fewer errors, these machines provide a quicker return on investment. Over time, the efficiency and precision they offer lead to cost savings and more profitable projects, especially in industries requiring complex machining.
Five-axis machines require skilled operators and programmers. These machines are more complex, so expertise is necessary to ensure smooth operation. When choosing a machine, consider specifications like speed, accuracy, and load capacity to match your needs.
CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software are essential for programming five-axis machines. Modern software solutions make the programming process easier, reducing training time and improving efficiency for operators.
Regular maintenance, such as cleaning and lubrication, is essential to keep the machine running smoothly. Watch out for issues like misalignment and tool wear, and address them early to avoid downtime and expensive repairs.
A common myth is that five-axis machines are too expensive. While they do require a larger initial investment, the long-term savings are significant. These machines reduce setup times, improve precision, and decrease material waste, all of which contribute to lower operational costs. Over time, these machines can pay for themselves by increasing productivity and reducing errors.
Programming five-axis machines used to be complicated. However, advancements in CAM (Computer-Aided Manufacturing) software have made the process much easier. Modern software offers intuitive interfaces, making it simpler to generate tool paths and simulate machining. Programs like Siemens NX and Mastercam are designed with user-friendly features that help operators quickly get up to speed, even with complex parts.
There is a learning curve when operating a five-axis machine, but this challenge can be managed. With proper training, operators can master the system and unlock its full potential. The complexity of the machine can be addressed by ensuring that operators receive hands-on training and support from machine manufacturers. As operator expertise increases, so does the machine's efficiency, ultimately improving output.

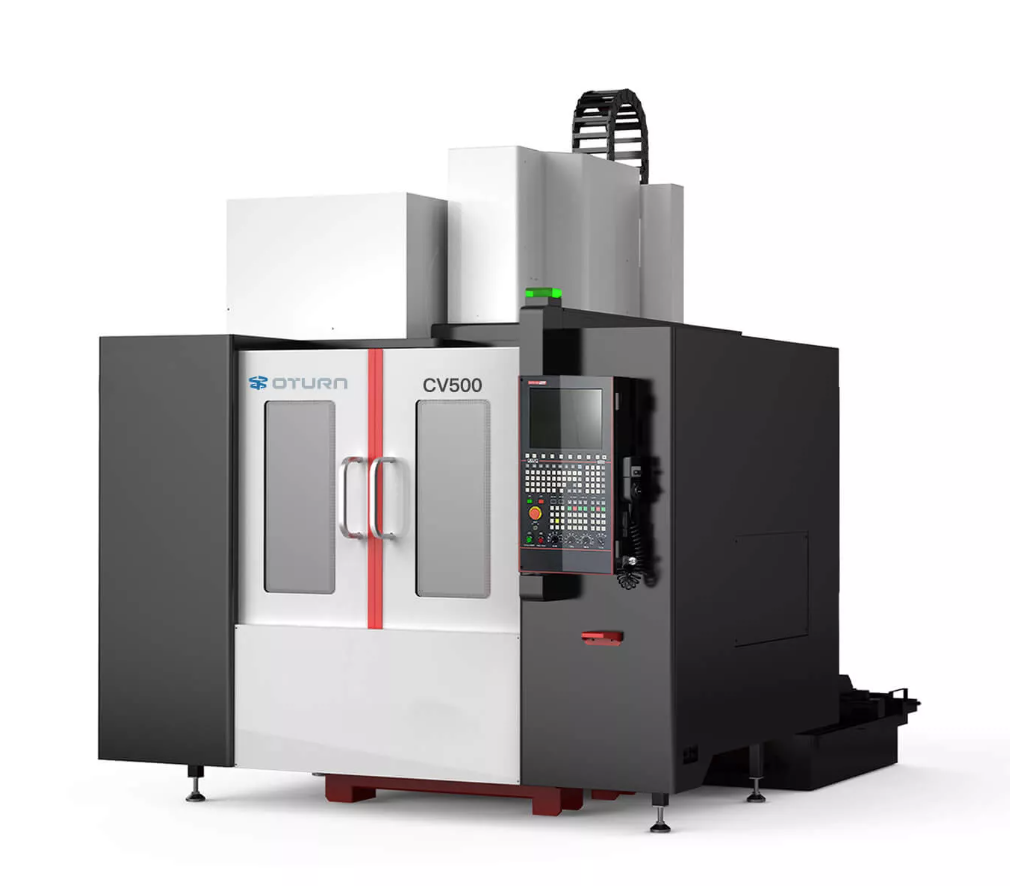

Five-axis milling and turning machines provide unmatched precision and flexibility. They reduce setup time and enhance part accuracy. Despite the higher initial investment, the long-term benefits—such as improved productivity and cost savings—make them a valuable asset. Investing in this technology is crucial for industries requiring complex parts and high-quality production. Welcome to Oturn Machinery Consulting Products！
A: Five-axis machines allow for multi-directional movement, enabling machining from all sides of a part. This improves precision and reduces setup time compared to traditional machines, which often require multiple repositioning and setups.
A: Yes, five-axis machines can work with a wide range of materials, including metals, plastics, and composites. Their versatility allows for efficient machining of complex shapes in various industries.
A: To start with five-axis machining, businesses need to invest in CAM software and training for operators. Consider partnering with a machine tool provider for guidance on machine selection and setup.
