What Is A Spindle on A CNC Machine?

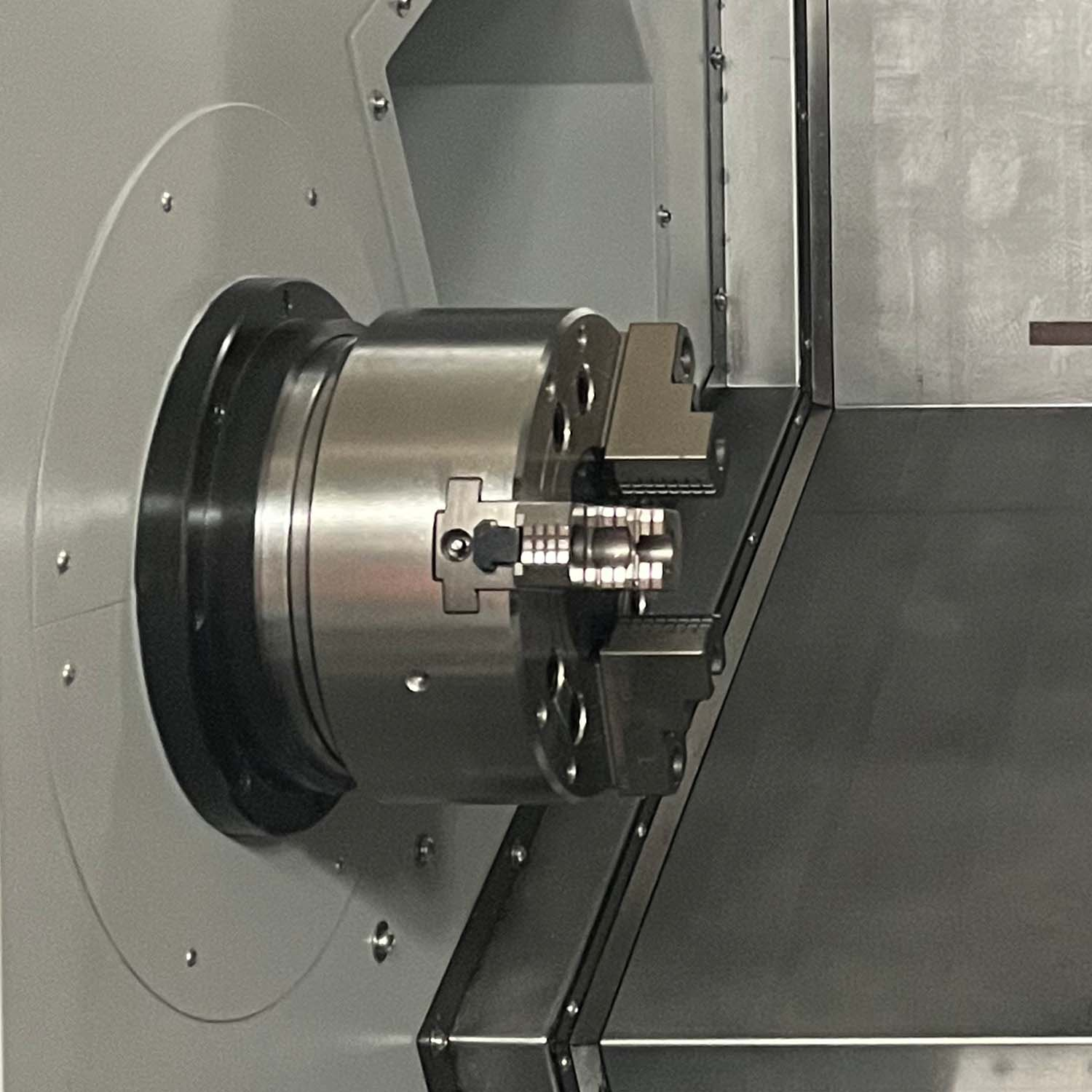

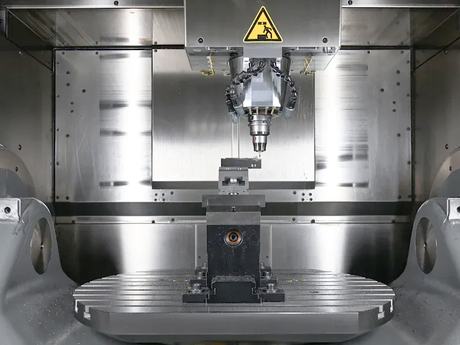

I. What is a CNC Machine Spindle?

The CNC machine spindle is one of the most critical components of CNC equipment, responsible for holding and driving the rotation of turning tools or workpieces. It provides the required speed, torque, and precision, affecting machining quality and efficiency. The spindle typically consists of the shaft, drive motor, bearings, and cooling system, making it the "heart" of the machine. Depending on specific application needs, machines can be equipped with single or multiple spindle to perform different tasks.

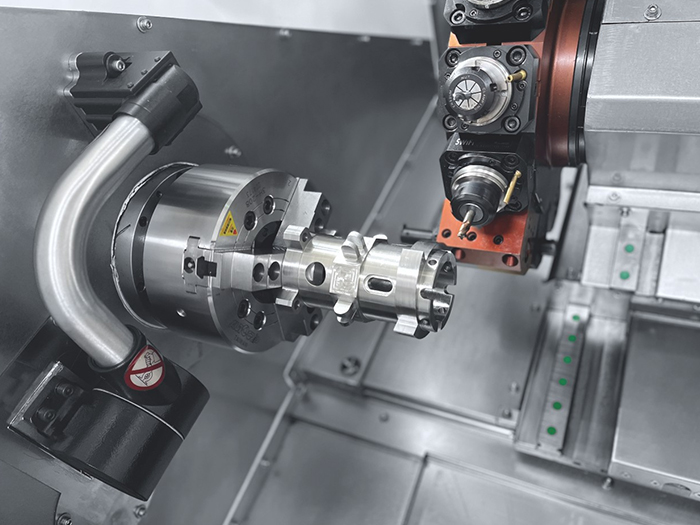

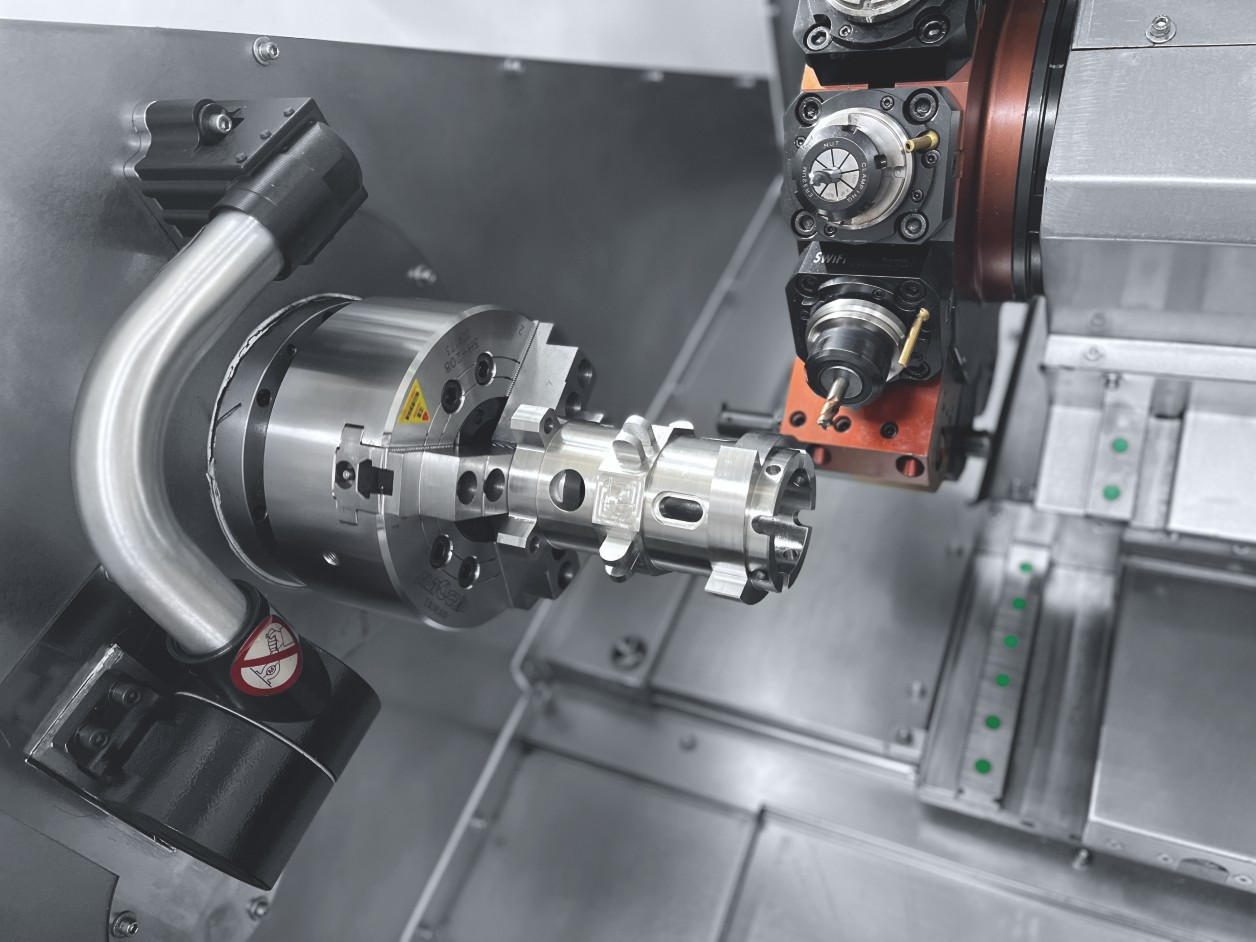

II. How Does the Spindle Work?

The spindle is driven to rotate by a motor, which spins the turning tool at high speeds to perform operations such as turning, milling, and drilling. The CNC system controls the spindle speed (RPM), direction, and torque according to programmed instructions to ensure precise machining. Bearings support the spindle shaft to maintain smooth rotation and reduce runout errors. Cooling systems (air or liquid) prevent overheating and extend spindle life.

III. Types of spindle

CNC spindle mainly fall into two categories: electric spindle and mechanical spindle.

1. Electric Spindle

An electric spindle integrates the motor inside the spindle itself, featuring a compact structure, fast response, and wide speed range. It is suitable for high-speed, high-precision machining. Without additional transmission parts, it offers high transmission efficiency and low vibration. However, power and torque are usually limited, and it tends to be more expensive. Commonly used in milling, engraving, and other precision processes.

2. Mechanical Spindle

Mechanical spindle are driven by an external motor and rely on mechanical transmission devices (such as gears, belts, or couplings) to rotate the spindle. The transmission types include:

Gear-driven spindle: Uses gear sets to transmit power, compact structure, high transmission efficiency. It is suitable for applications requiring high torque and heavy turning.

Belt-driven spindle: Uses belts and pulleys for power transmission, simple structure, lower cost, less vibration and noise compared to gear-driven spindle, suitable for medium to low-speed machining.

Direct-drive spindle: A special type of mechanical spindle where the motor connects directly to the spindle via a coupling without intermediate transmission parts. It offers high transmission efficiency, good rigidity, and fast response, suitable for high-speed, high-precision machining.

IV. Features of spindle

High Precision: Quality bearings and precise manufacturing ensure low vibration and runout, improving machining accuracy and surface finish.

Wide Speed Range: Meets requirements for different materials and processes.

High Torque Output: Provides sufficient power for hard materials and deep cuts.

Automation Support: Supports automatic tool changing, intelligent lubrication, and other functions to improve productivity.

Good Cooling: Air or liquid cooling systems effectively control temperature and extend spindle life.

Durability and Reliability: Robust structure suitable for long-term, high-intensity machining.

V. How to Choose the Right CNC Spindle for Your Application?

Choosing the right CNC turning center spindle is crucial for optimizing machining performance and efficiency. The correct spindle directly impacts part quality, overall productivity, and operational costs. You should consider factors such as required torque and power, speed range, tooling compatibility, and the materials you process.

It is recommended to consult with professional teams to clarify your specific needs and priority features, helping you find the best balance between functionality and cost. This approach narrows down options and ensures the spindle you select fits your budget and application, achieving optimal machining results and return on investment.

VI. Spindle Maintenance and Care

Regularly inspect bearings, seals, and tool holders; replace worn parts promptly.

Keep the spindle clean to prevent dust and debris from entering.

Lubricate on schedule using manufacturer-recommended lubricants to avoid overheating and friction.

Monitor temperature and vibration; address abnormalities immediately.

Avoid overloading; operate within rated speed and torque limits.

Maintain cooling systems to ensure air or liquid cooling functions properly.

Prevent collisions by programming safely and avoiding machining crashes.

VII. Summary

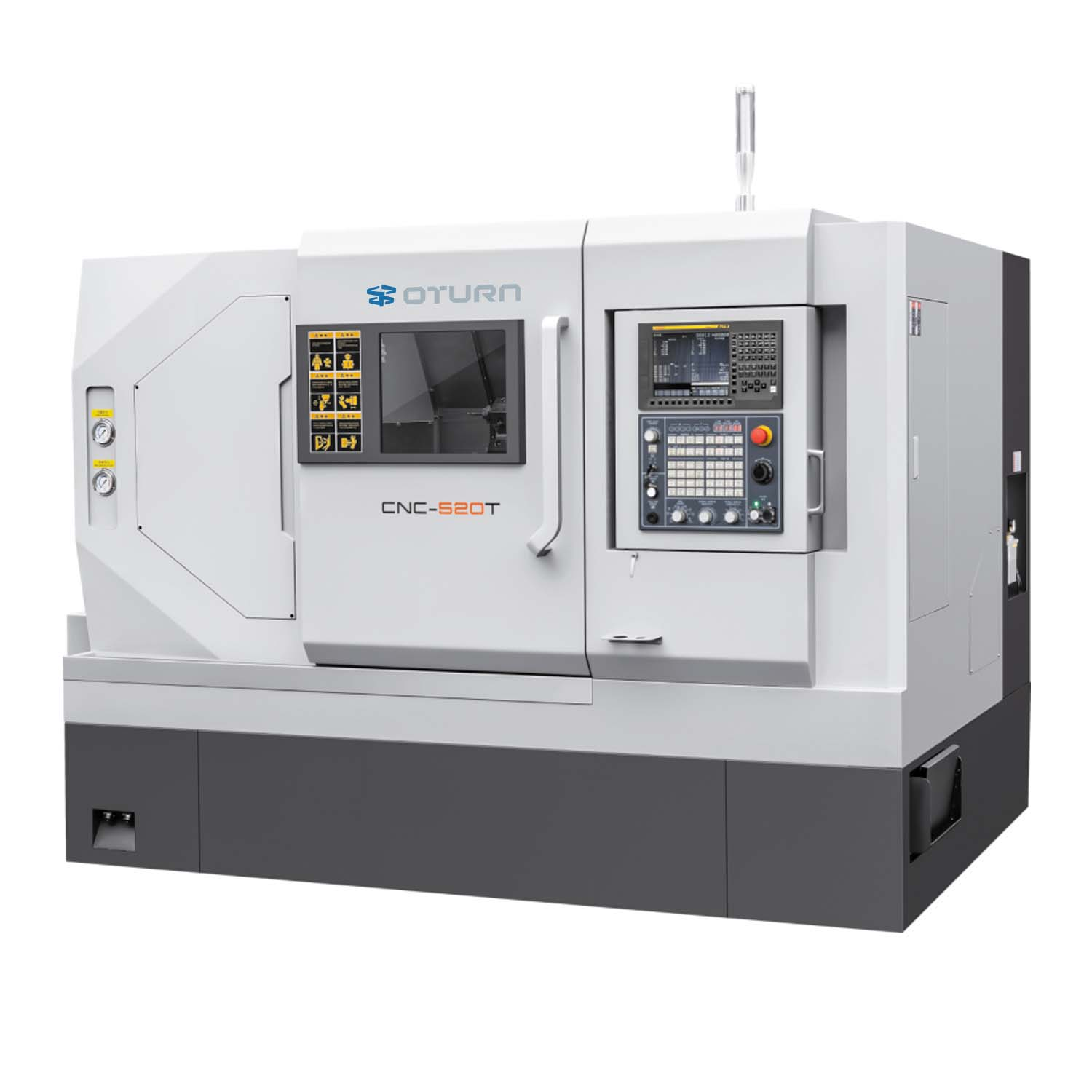

The CNC spindle is the core component of a CNC lathe, determining machining precision, efficiency, and stability. Understanding its working principle, types, and applications helps in selecting and using it properly. Scientific maintenance not only extends spindle life but also ensures long-term stable machine operation. Choosing the right spindle and maintaining it well is key to achieving high-quality CNC machining.
