Views: 0 Author: Site Editor Publish Time: 2026-03-03 Origin: Site

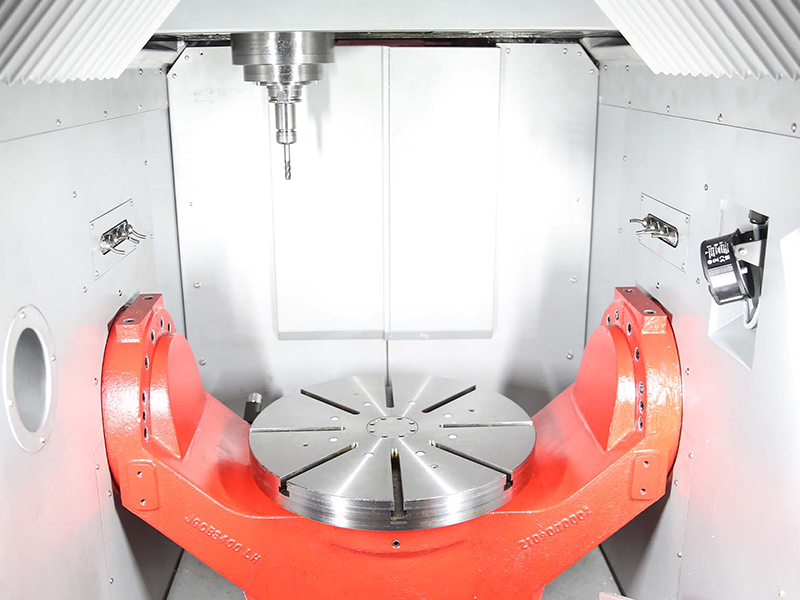

You need effective fixturing for precision in your 5-Axis CNC Machining Center operations. Proper workholding is critical for efficiency. It maximizes the capabilities of your machine. This ensures high-quality part production and optimal performance.
Good fixturing is important for 5-axis CNC machines. It helps make parts correctly and quickly.
Many fixture types exist, like modular, vacuum, and quick-change systems. Each type works best for different parts and production needs.
Choose the right fixture by looking at your part's shape, material, how many parts you need, and your machine's abilities. This helps you get the best results.
Modular fixturing systems offer a versatile approach to workholding. You build these systems from standardized components. This allows you to create custom setups for various part geometries. Common components include:
3-4-5 Axis Vices
Zero Point Systems
Tombstones
Modular Clamping (including Side clamping, Under-tightening, and Top Clamping)
Modular fixture plates
Vacuum tables
CNC Horizontal Processing Towers and Tables
5-Axis Clamping Block Systems
You assemble these parts to securely hold your workpiece during machining.
You gain significant benefits using modular fixturing. These systems drastically reduce setup time. You can achieve positioning and clamping within seconds. This minimizes workpiece or fixture change time. They also offer great flexibility. The system allows for secure connection of various parts and fixtures. You get high repeatability accuracy, often 0.005 mm, and strong clamping force, up to 55 kN. This versatility means you can use the same system across all stages of your production process. This enhances operational efficiency and adaptability for your 5-Axis CNC Machining Center.
You will find modular fixturing systems ideal for many applications. They excel in environments requiring frequent changeovers or when machining a wide variety of parts. Industries like aerospace, medical device manufacturing, and mold making often use them. They are perfect for prototypes or low-volume production runs. You can quickly reconfigure the setup for new parts. This makes them highly efficient for complex geometries and diverse manufacturing needs.
You can use hydraulic and pneumatic clamping systems to secure your workpieces. Hydraulic systems use fluid pressure. Pneumatic systems use air pressure. Both methods apply force to hold parts firmly. You integrate these systems directly into your machine setup. They provide a powerful and consistent grip. This ensures stability during complex machining operations.
These clamping methods offer significant benefits. You achieve very high clamping forces with hydraulic systems. Pneumatic systems provide fast clamping and unclamping cycles. Both systems allow for automation. This reduces manual effort and speeds up your production. You get consistent clamping pressure every time. This leads to repeatable results and improved part quality. You also minimize operator fatigue.
You will find hydraulic and pneumatic clamping ideal for many applications. They excel in high-volume production environments. Industries like automotive and aerospace frequently use them. You can clamp complex parts requiring strong, consistent force. These systems integrate well with automated production lines. They are perfect for securing workpieces on your 5-Axis CNC Machining Center, especially for intricate and demanding tasks.
You can use vacuum fixturing to hold workpieces securely. This method creates a vacuum between the fixture and the part. Atmospheric pressure then presses the workpiece firmly onto the fixture. This technique is especially useful for parts with large, flat surfaces. You often see it used with non-ferrous materials. The system typically includes a vacuum pump, a fixture plate with channels, and a sealing gasket.
Vacuum fixturing offers significant benefits. It eliminates the need for mechanical clamps. This prevents marring, distortion, and damage to delicate or thin-walled parts. You get an even distribution of clamping force across the entire contact surface. This avoids stress points and deformation. You also gain full 5-axis access to the part. This enhances machining efficiency and reduces the need for multiple setups. It simplifies part loading and unloading, contributing to faster cycle times.
You will find vacuum fixturing ideal for many applications. It excels when machining delicate or thin-walled components. Industries like aerospace, medical, and electronics frequently use it. You can machine materials such as plastics, composites, and thin metals. This method is perfect for parts requiring high surface finish quality. It provides unobstructed access to five sides of the part on your 5-Axis CNC Machining Center. This maximizes machining efficiency.
You can use magnetic workholding to secure ferromagnetic workpieces. This system employs powerful electromagnets or permanent magnets. These magnets create a strong clamping force. You place the workpiece directly onto the magnetic chuck or fixture. The magnetic field holds the part firmly in place. This method eliminates the need for traditional clamps. It provides an unobstructed machining surface.
Magnetic workholding offers several key benefits. You achieve quick setup and changeover times. This boosts your productivity. The system provides uniform clamping force across the entire contact area. This prevents part distortion or damage. You gain full access to five sides of the workpiece. This allows for complex machining operations in a single setup. It also reduces the number of setups required. You can machine parts without interference from mechanical clamps. This improves surface finish and accuracy.
You will find magnetic workholding ideal for various applications. It excels in machining flat or irregularly shaped ferromagnetic parts. Industries like mold and die manufacturing frequently use it. You can machine steel, cast iron, and other magnetic alloys. This method is perfect for parts requiring high precision and multiple-side access on your 5-Axis CNC Machining Center. It is also suitable for thin parts that might deform under mechanical clamping pressure.
You use self-centering vises to hold workpieces precisely in the center of your machine's rotation. These vises feature two jaws that move simultaneously and equally towards the center. This action ensures the part remains perfectly aligned. You can find them in various designs, including mechanical and hydraulic versions. They provide a stable and repeatable clamping solution for complex geometries.
Self-centering vises offer significant benefits for your 5-axis operations. You achieve highly accurate and repeatable part positioning. This reduces setup time and minimizes errors. The design allows for excellent tool access around the workpiece. This is crucial for maximizing the capabilities of your 5-axis CNC Machining Center. You can machine multiple sides of a part without repositioning. This improves efficiency and part quality. The strong, balanced clamping force prevents part distortion.
You will find self-centering vises ideal for many precision machining tasks. They excel in applications requiring high concentricity and symmetry. Industries like aerospace, medical, and mold making frequently use them. You can machine round, square, or irregularly shaped parts with ease. These vises are perfect for components needing multiple operations in a single setup. They enhance productivity when you work with complex parts on your 5-Axis CNC Machining Center.
You use zero-point clamping systems to quickly and precisely position workpieces or fixtures on your 5-Axis CNC Machining Center. These systems consist of a base unit mounted on the machine table and clamping studs attached to the workpiece or fixture. You engage the studs into the base unit, creating a rigid, repeatable connection. This method ensures exact positioning every time you change a part or fixture.
Zero-point clamping offers significant advantages. You achieve extremely fast setup and changeover times. This dramatically reduces non-productive machine time. The system provides high repeatability, often within microns. This ensures consistent part quality across batches. You can pre-set workpieces outside the machine. This maximizes machine utilization. It also allows for automated loading and unloading processes. This enhances overall efficiency and throughput.
You will find zero-point clamping systems ideal for various applications. They excel in high-mix, low-volume production environments. Industries like aerospace, automotive, and mold making frequently use them. You can quickly switch between different parts or fixtures. This system is perfect for operations requiring frequent changeovers and high precision on your 5-Axis CNC Machining Center. It supports both manual and automated production lines effectively.
You use custom-designed fixtures when standard workholding solutions cannot meet your specific needs. These fixtures are unique tools engineered precisely for a particular workpiece or machining operation. They are essential for 5-axis CNC machining when you deal with complex parts and intricate geometries. This is especially true in industries demanding high precision and efficiency. Custom fixtures guarantee accuracy, streamline assembly, and standardize quality control for these complex components. For example, control fixture manufacturing designs and produces custom fixtures for specific projects. They also conduct tests using these specialized tools.
Custom fixtures offer significant advantages. You achieve unparalleled precision and repeatability. This is crucial for complex parts with tight tolerances. These fixtures provide superior stability, minimizing vibration and deflection during machining. This leads to better surface finishes and higher part quality. You can optimize tool access and machining paths. This maximizes the efficiency of your 5-axis CNC Machining Center. Custom solutions also reduce setup times for recurring complex jobs. They often integrate seamlessly into your production workflow.
You will find custom-designed fixtures most appropriate for specialized applications. They excel when part complexity, high precision, and manufacturing efficiency demand specialized tools beyond standard capabilities. Industries like aerospace, medical, and mold manufacturing frequently use them. For instance, assembly fixture manufacturing provides solutions for mass assembly systems. These fixtures reduce production times and ensure dimensional accuracy, especially in mass production. Control and assembly fixtures are custom-designed for each project. This design considers part geometry, tolerance values, and your specific manufacturing method. This approach directly impacts your manufacturing efficiency.
You use palletized workholding systems to maximize machine uptime. These systems involve a base plate, called a pallet. You mount your workpiece and its fixture onto this pallet outside the machine. Once prepared, you quickly load the entire pallet into your 5-Axis CNC Machining Center. This method allows you to set up the next job while the current one runs. It ensures a seamless transition between different parts or operations.
Palletized workholding offers significant benefits. You achieve drastically reduced setup and changeover times. This keeps your machine cutting metal for longer periods. You can prepare new jobs offline. This boosts machine utilization and overall productivity. The system provides highly repeatable positioning. This ensures consistent part quality across batches. You also gain flexibility. You can easily switch between different parts or production runs. This makes your manufacturing process more agile.
You will find palletized workholding ideal for various applications. It excels in high-volume production environments. Industries like aerospace, automotive, and medical device manufacturing frequently use it. You can efficiently machine complex parts requiring multiple operations. This system is perfect for scenarios demanding quick changeovers and continuous operation on your 5-Axis CNC Machining Center. It supports both automated and manual loading processes effectively.
You use expanding mandrels and collets for precise internal or external clamping of workpieces. Expanding mandrels grip a part from its inside diameter. They expand outward to secure the workpiece. Collets, conversely, grip a part from its outside diameter. They contract inward to hold the workpiece firmly. Both methods provide excellent concentricity. They ensure the part rotates accurately around its central axis. You integrate these workholding devices directly into your machine's spindle or a dedicated fixture.
Expanding mandrels and collets offer significant benefits for your 5-axis operations.
You achieve superior concentricity and runout accuracy. This is critical for precision parts.
They provide strong, uniform clamping force. This minimizes part distortion.
You gain unobstructed access to the workpiece's exterior. This allows for complex machining on multiple sides.
They reduce setup time. You quickly load and unload parts.
These tools are ideal for secondary operations. You maintain high precision from previous machining steps.
You will find expanding mandrels and collets ideal for many precision machining tasks. They excel in applications requiring high concentricity and minimal part deformation. Industries like aerospace, medical, and automotive frequently use them. You can machine components such as:
Shafts
Rings
Gears
Bushings
Valve components
These workholding solutions are perfect for parts needing multiple operations. They ensure accuracy on your 5-Axis CNC Machining Center.
You use tombstone fixtures to hold multiple workpieces simultaneously on your 5-Axis CNC Machining Center. These fixtures resemble a tombstone or a rectangular column. You mount them vertically on the machine table. They feature multiple faces, allowing you to attach several parts or vises. This setup maximizes the number of parts you can machine in one cycle. You can access different sides of the workpieces without manual reorientation.
Tombstone fixtures offer significant benefits for your production. You achieve high efficiency. This allows for the machining of multiple surfaces in a single setup. This significantly reduces your overall production time. You also gain precision machining capabilities. This facilitates multi-axis machining with tight tolerances on your CNC machines. You can reduce setup times. This keeps your machine running longer. You also minimize part handling. This lowers the risk of errors or damage.
You will find tombstone fixtures ideal for various manufacturing scenarios. They excel in high-volume production environments. Industries like automotive, aerospace, and general manufacturing frequently use them. You can machine a batch of identical parts efficiently. They are also perfect for machining families of parts. This allows you to process different components in a single machine run. Tombstones are essential for maximizing throughput on your 5-Axis CNC Machining Center.
You use chuck jaws and faceplates to secure cylindrical or irregularly shaped workpieces. Chuck jaws typically come in sets of two, three, or four. They grip the outside or inside diameter of a part. Faceplates are flat circular plates. You mount them directly to the machine spindle. You then attach the workpiece to the faceplate using clamps, bolts, or custom fixtures. Both methods provide robust workholding. They ensure stability during machining operations.
These workholding solutions offer several key benefits. You achieve very strong clamping forces. This prevents part movement during aggressive cuts. They provide excellent concentricity for rotational parts. This ensures high precision. You can easily adapt chuck jaws for different part sizes. Faceplates offer versatility for irregularly shaped components. They allow you to machine complex geometries with confidence. You gain reliable and stable workholding for demanding tasks.
You will find chuck jaws and faceplates ideal for many applications. They excel in machining cylindrical components. Industries like aerospace, automotive, and general manufacturing frequently use them. You can machine shafts, flanges, and housings. Faceplates are perfect for large, asymmetrical parts. They are also suitable for components requiring precise balancing. These solutions are essential for turning and milling operations on your 5-Axis CNC Machining Center.
You use quick-change fixturing systems to rapidly swap workholding setups on your 5-Axis CNC Machining Center. These systems employ standardized interfaces. They allow you to remove one fixture and install another in minutes. This minimizes the time your machine sits idle. Common components include base plates, receivers, and interchangeable fixture plates or vises. You prepare the next job offline. Then, you quickly load it onto the machine. This method ensures continuous operation.
Quick-change fixturing offers significant benefits. You drastically reduce setup and changeover times. This keeps your machine cutting metal for longer periods. You boost machine utilization and overall productivity. The system provides high repeatability. This ensures consistent part quality across different batches. You gain flexibility. You can easily switch between various parts or production runs. This makes your manufacturing process more agile and responsive. It also reduces operator intervention.
You will find quick-change fixturing ideal for many applications. It excels in high-mix, low-volume production environments. Industries like mold making, aerospace, and medical device manufacturing frequently use it. You can efficiently machine diverse parts requiring frequent setup changes. This system is perfect for scenarios demanding quick turnarounds and continuous operation on your 5-Axis CNC Machining Center. It supports both manual and automated loading processes effectively.
Selecting the optimal fixture solution is crucial for maximizing your 5-Axis CNC Machining Center's performance. You must consider several factors to make the best choice for your specific needs.
You must analyze your part's shape and material. Complex geometries often require fixtures that provide maximum tool access, like vacuum or magnetic workholding. Delicate or thin-walled parts benefit from non-marring solutions. Consider vacuum or hydraulic clamping for these. Harder materials demand robust clamping forces. This prevents movement during heavy cuts.
Your production volume and desired cycle time heavily influence fixture selection. For high-volume production, you need quick-change or palletized systems. These minimize downtime. Low-volume or prototype runs benefit from flexible modular fixturing. This allows for rapid reconfigurations. Efficient fixturing directly impacts your overall throughput.
Evaluate the initial cost of the fixturing system against its long-term benefits. Custom fixtures can be expensive upfront. However, they offer superior precision for unique parts. Standardized solutions, like vises or chucks, are more affordable. They provide versatility. Consider the time required for setup and changeovers. Systems that reduce these times often justify a higher initial investment.
Understand your machine's specific capabilities. Some machines integrate better with automated clamping systems. Others might have limitations on fixture size or weight. Ensure your chosen fixture is compatible with your machine's table, spindle, and control system. This ensures seamless operation and prevents potential issues.
You have explored diverse fixture solutions, from modular systems to quick-change setups. Optimal workholding significantly boosts your productivity, enhances part quality, and improves overall manufacturing efficiency for your 5-Axis CNC Machining Center. Expect continuous innovation in 5-axis workholding technology.
You consider part geometry, material, production volume, and machine capabilities. This ensures optimal performance and efficiency for your specific needs.
You reduce setup times significantly. This increases machine uptime and overall productivity. You also achieve consistent part quality with high repeatability.
You can use standard vises for simpler parts. However, self-centering vises or specialized 5-axis vises offer better tool access and precision for complex geometries.
