Key Choices for Boosting Production Efficiency: Twin-spindle with Single Turret vs. Twin-spindle with Twin-turret CNC Lathes

The choice between a twin-spindle single-turret machine and a twin-spindle with a CNC Double Turret Lathe depends entirely on the complexity of the part, the required cycle time, and the volume of production; while the single turret offers a more economical entry point for simpler geometries, the dual-turret configuration provides superior parallel processing capabilities that significantly boost overall efficiency for intricate parts.

Selecting the right machine architecture requires a deep dive into your shop’s specific workflow. Whether you are aiming to eliminate secondary operations or trying to minimize idle time during part transfers, the mechanical layout of your CNC lathe will dictate your operational ceiling. This article explores the trade-offs between these two high-performance configurations to help you make an informed investment in your manufacturing capacity.

Table of Contents

Operational Fundamentals

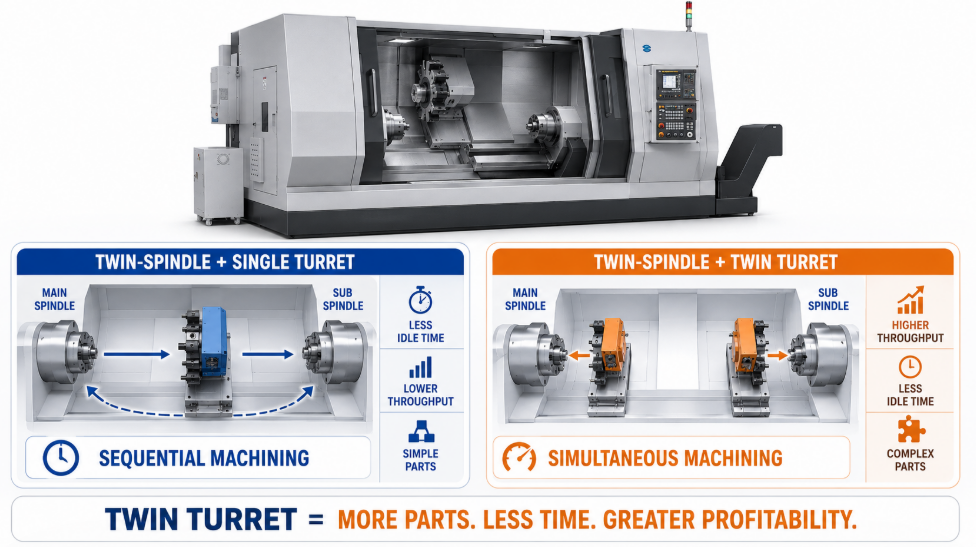

A twin-spindle single-turret CNC lathe functions by utilizing a single tool-carrying turret that services both spindles, whereas a twin-spindle dual-turret system empowers the machine to engage both spindles simultaneously using independent turrets for synchronized or independent operations.

The single-turret twin-spindle design is often considered the workhorse for standard, symmetrical parts. In this setup, the turret moves between the main and sub-spindle to perform operations. The primary advantage here is the reduction of part handling; once the front work is complete, the part is transferred to the sub-spindle for back-working. This eliminates the need for a separate operator intervention or a second machine, effectively completing the part in one setup. This configuration is ideal for shops that produce parts with moderate complexity where cycle times are not the primary constraint.

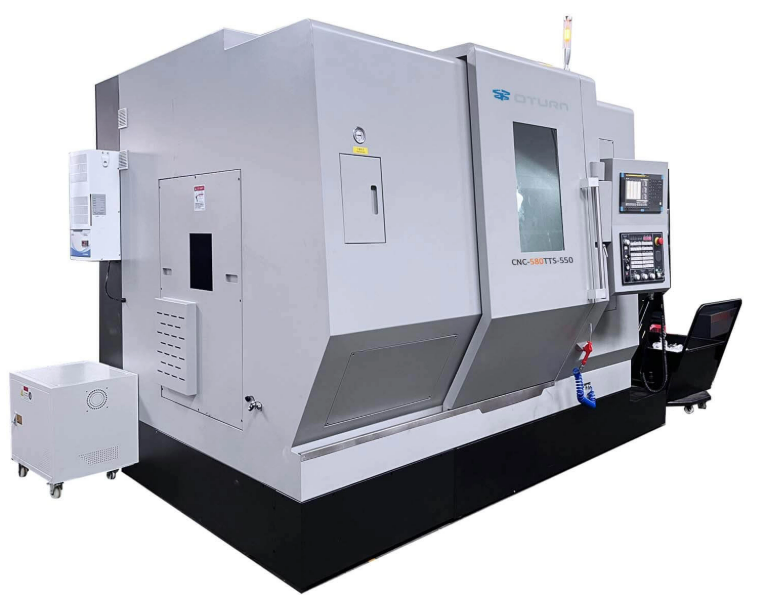

Conversely, the integration of a CNC Double Turret Lathe introduces a paradigm shift in how parts are machined. With two turrets, the machine can perform two operations at the exact same time. For example, the upper turret can work on the main spindle while the lower turret simultaneously works on the sub-spindle. This capability essentially doubles the cutting potential of the machine. These machines are engineered to handle sophisticated, multi-tasking operations that would otherwise require multiple conventional lathes.

The mechanical sophistication of dual-turret systems also necessitates a more rigorous approach to maintenance and calibration. Users must be familiar with proper turret alignment techniques to ensure that both turrets maintain the high precision required for complex tolerances. When both turrets are perfectly calibrated, the machine can achieve a level of synchronized output that makes them indispensable for high-volume, precision-critical manufacturing environments.

Throughput and Cycle Time

Twin-turret systems significantly outperform single-turret setups in terms of throughput by enabling simultaneous machining, which drastically reduces the total cycle time per part compared to a sequential, single-turret process.

When analyzing throughput, the most significant difference lies in the concept of "air cutting" or idle time. In a single-turret machine, while the turret is working on one spindle, the other spindle is often waiting for its turn or performing a non-cutting operation. This inherent downtime is a bottleneck in high-speed, high-volume production. By moving to a twin-turret configuration, the idle time is effectively absorbed by the second turret, which maintains the spindle load throughout the entire cycle.

For manufacturers dealing with thousands of units, even a few seconds saved per part translates to massive increases in yearly capacity. The twin-turret setup allows for "balance turning" or "simultaneous cutting," where both turrets apply force to the workpiece at the same time to reduce vibration and increase material removal rates. This is particularly advantageous when dealing with long, slender shafts or high-strength materials where aggressive cutting parameters are necessary to maintain efficiency.

Furthermore, the versatility offered by two turrets allows for more complex tool path strategies. You can have a variety of turning, milling, and drilling tools loaded across both turrets, minimizing the need for tool changes. The ability to program complex overlays between the two turrets means that your machine is almost never sitting idle. This high machine utilization rate is what separates a standard production facility from a high-efficiency manufacturing powerhouse.

Balancing Precision and Rigidity

The core difference in precision between these two setups lies in the thermal stability and structural rigidity required to support dual-turret operations without compromising the tolerance integrity of the part being machined.

Rigidity is the foundation of any CNC lathe. A single-turret machine, due to its simpler mechanical structure, often provides an easier path to maintaining high levels of rigidity, as there is less vibration and interference potential between multiple moving axes. It is an excellent choice for shops that prioritize extreme tolerance precision on smaller, less complex components where the structural load is manageable with one turret.

However, modern dual-turret machines have evolved to offer exceptional rigidity through advanced casting designs and thermal compensation software. To achieve the best results, it is imperative to master the technical requirements for turret center-height adjustment, as misalignment in a multi-turret system can lead to inconsistent tool wear and dimensional drift. When properly maintained, these systems provide unmatched stability during heavy-duty cutting.

Additionally, because dual-turret machines often incorporate Y-axis functionality on one or both turrets, they provide the ability to perform off-center milling, drilling, and tapping with extreme accuracy. This eliminates the "stacking error" that occurs when moving a part from one machine to another. By keeping the part in one machine for all operations, you maintain a singular reference point, which inherently leads to higher part-to-part consistency.

Economic Feasibility

While the initial capital expenditure for a twin-turret machine is higher, the long-term economic benefits—driven by lower cost-per-part, reduced floor space requirements, and shorter lead times—frequently justify the investment for high-volume production.

Deciding between these options is as much a financial calculation as it is an engineering one. The single-turret model represents a lower upfront investment and lower maintenance costs. It is the perfect choice for shops with varied part runs or those who are just beginning to explore the benefits of twin-spindle technology. The simplicity of the machine means that training operators is faster and programming requirements are less complex.

On the other hand, the CNC Double Turret Lathe is a long-term profit-generating engine. By consolidating multiple operations into one machine, you save on:

1. Labor costs associated with machine operators for secondary processes.

2. Inventory costs, as work-in-progress (WIP) parts are reduced.

3. Floor space utilization, as you can replace several smaller, less efficient machines with a single, high-output unit.

When analyzing the return on investment (ROI), it is essential to calculate the total cost of ownership. The increased productivity of a dual-turret system usually results in a faster payback period if your shop is operating at high capacity. However, if your production volume is low or your parts are simple, the added cost of the second turret may not provide the necessary marginal gains to justify the expense.

Selecting the Right Fit

Selecting the optimal CNC lathe requires matching the machine’s capabilities to your specific production demands, prioritizing the single-turret for versatility and lower initial cost, or the dual-turret for maximum throughput and complex part consolidation.

To make the final decision, you should perform a comprehensive analysis of your current and projected part portfolio. Consider the following criteria:

• Part Complexity: Does your part require milling, drilling, and turning on multiple faces? If yes, a dual-turret system is likely required.

• Production Volume: Are you running high-volume batches? If so, the cycle time reduction of a dual-turret machine will provide a significant competitive advantage.

• Labor Availability: A twin-turret machine acts as a form of automation, allowing one operator to manage more production output compared to a single-turret setup.

Ultimately, both machine types serve vital roles in modern manufacturing. The goal is not to buy the most complex machine, but the most efficient one for your specific needs. By focusing on your core production volume and the complexity of the parts you intend to machine, you can ensure that your capital investment directly translates into enhanced production efficiency and greater profitability. When you prioritize the right machine architecture and maintain it with expert care, you solidify your position in the market as a high-precision, high-efficiency manufacturer.
