Shops should transition to multi-turret CNC turning centers because they drastically reduce cycle times through simultaneous machining, eliminate redundant handling by completing complex parts in one setup, and significantly improve overall machine utilization.
By embracing advanced multi-axis technology, shops can transform their production floor from a reactive environment into a proactive, high-efficiency manufacturing hub. This article explores the technical and economic advantages of moving beyond the constraints of single turret systems and how modern turning centers are redefining productivity.
Section | Summary |
The Simple Math of More Tools in the Cut | Explains how simultaneous machining reduces cycle time by engaging multiple turrets on a single workpiece. |
What A Multi-Turret Machine Actually Unlocks | Details the capability to perform complex operations, like balanced turning or simultaneous drilling, in one cycle. |
Addressing the CNC Programming Complexity Concern | Discusses how modern CAM software and conversational programming mitigate the perceived difficulty of managing multiple turrets. |
Vibration, Harmonics, and the Passive Dampening Advantage | Describes how multiple tools engaging a workpiece can stabilize cutting forces and improve surface finish. |
Chip Management and the Path to Lights-Out Efficiency | Highlights how high-throughput multi-turret machines necessitate better chip control for unattended operation. |
Setup, Resident Tooling, and the High-Mix Advantage | Explores the economic benefits of keeping tools resident in the machine to reduce changeover times for high-mix production. |
The core advantage of moving to a multi-turret system is the ability to have two or more tools engaged in the material simultaneously, effectively cutting the cycle time for complex operations by nearly half.

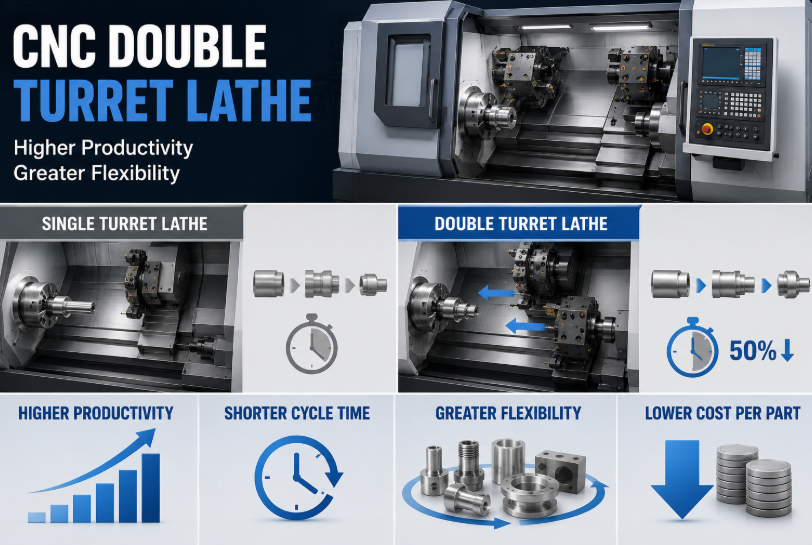

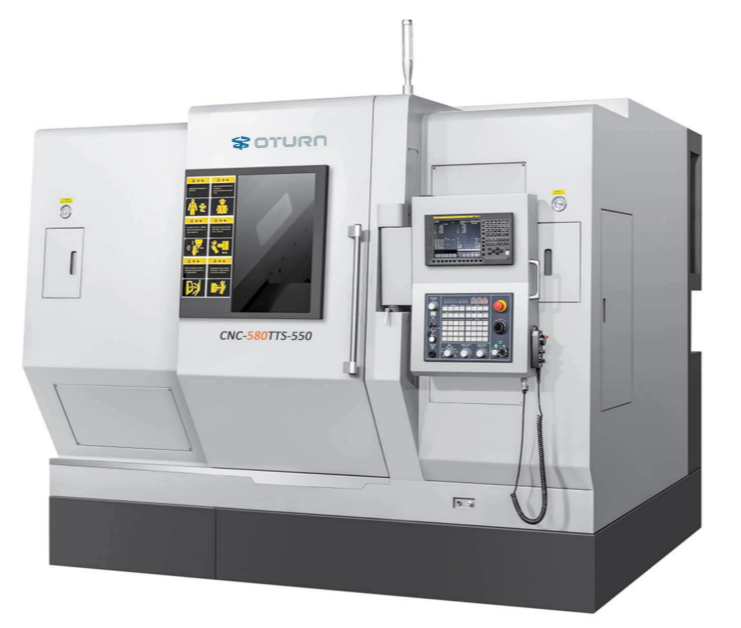

In a traditional single turret environment, every operation must occur sequentially. If you are turning a diameter, then drilling a hole, and then performing a finish pass, the machine spends a significant amount of time in non-cutting motion. With a CNC Double Spindle Double Turret Lathe, you are no longer limited by a single tool path. By utilizing two turrets, you can perform roughing and finishing operations concurrently, or machine the front and back of the part simultaneously.
Consider a part that requires turning, grooving, and threading. On a single turret machine, the turret must index between each tool, travel to the clearance position, and then move to the next engagement point. On a multi-turret machine, Turret A can be roughing the outer diameter while Turret B is simultaneously grooving a flange or performing drilling operations on the face. This overlapping motion is the secret to drastic efficiency gains.
Furthermore, this efficiency does not come at the expense of quality. Because you are utilizing more tools at once, you are effectively reducing the total idle time, which means the machine spends more of its operating time generating chips and revenue. When you compare the output of a single turret system against a high-performance CNC Double Spindle Double Turret Lathe, the math is straightforward: the latter produces more parts per hour, leading to a faster return on investment.
A multi-turret turning center unlocks the ability to perform complex, multi-axis machining sequences that were previously impossible, allowing manufacturers to finish parts completely in a single cycle.
The ability to machine with multiple turrets allows for innovative techniques such as balanced turning. During balanced turning, two tools are placed on opposite sides of the workpiece, effectively sharing the cutting force. This allows for higher feed rates and heavier material removal without deflecting the part or the machine structure. This is particularly useful for long, thin parts that would otherwise require steady rests or multiple passes on a single turret lathe.
Beyond balanced turning, these machines allow for "pass-off" machining. Once the first side is completed, the sub-spindle captures the part, and the second turret can begin working on the secondary operations while the first turret is already starting on the next workpiece. This "done-in-one" approach is the gold standard in modern CNC manufacturing.
Reduced Work-in-Progress (WIP) inventory.
Elimination of secondary machines (like drill presses or manual lathes).
Consistent part quality by avoiding multiple re-clamping operations.
Reduced scrap rates due to improved part concentricity.
While many shops fear the programming overhead of multi-turret machines, modern CAD/CAM software and advanced control features have made synchronizing multiple tool paths as intuitive as single-path programming.
A common hesitation when transitioning to multi-turret centers is the belief that programming complexity will skyrocket. It is true that synchronization is required, but contemporary CNC controllers provide visual simulation tools that allow programmers to see the interaction between Turret A and Turret B in real-time. This prevents collisions and ensures that both turrets are working in harmony rather than interfering with one another.
Modern CAM packages now feature dedicated modules for multi-turret synchronization. Users can define wait codes, which tell the machine to pause one turret until the other has completed a specific segment of the path. Once these logical constraints are set, the software handles the underlying G-code generation, making the process highly repeatable and safe.
Furthermore, proper setup remains the foundation of programming accuracy. Shops often overlook the basics, but learning the detailed methods for turret center height adjustment is crucial. When your turret alignment is calibrated correctly, the virtual simulation in your CAM software perfectly matches the physical reality of your machine, minimizing the risk of errors during the first-part run.
Multi-turret systems provide a unique advantage in dampening vibration because the dual-tool engagement acts as a mechanical stabilizer for the workpiece.
In single turret machining, the cutting force is applied from one direction, which can induce chatter or harmonic vibration when machining thin-walled parts or long shafts. By utilizing a second turret to provide simultaneous, opposing cutting force, the system creates a self-damping effect. This is the physical equivalent of holding a vibrating object firmly from both sides; the energy is dissipated through the machine structure rather than manifesting as surface finish degradation.
This improved rigidity allows for higher material removal rates and superior surface finishes. When the part is held between two spindles and worked on by two turrets, the entire system becomes significantly more rigid. For shops dealing with difficult-to-machine materials like stainless steel or Inconel, this dampening advantage is a game-changer.
Use symmetrical tool paths to balance cutting pressures.
Adjust turret heights accurately, following key points for turret center height adjustment to ensure forces are applied exactly on the center line.
Utilize dampening inserts or high-stiffness tool holders in both turrets.
Because multi-turret machines produce parts significantly faster, they generate more chips per hour, requiring advanced chip management solutions to successfully enable lights-out production.
The transition to a multi-turret environment inevitably leads to a higher volume of chips. If these chips are not cleared efficiently, they can become entangled around the workpiece or the tools, leading to downtime or surface finish issues. Manufacturers must invest in high-pressure coolant systems and integrated chip conveyors that are capable of handling the high-volume output associated with these advanced centers.
Lights-out efficiency—running a machine unattended—is the ultimate goal for many high-production shops. With two turrets, you can employ redundant tool sets. If a tool on Turret A reaches its expected life limit, the machine can automatically switch to the equivalent tool on Turret B without operator intervention. This level of reliability is impossible on a single turret lathe.
Multi-turret centers excel in high-mix environments by keeping a wide variety of tools resident in the machine, which eliminates the need to change tools between diverse production runs.
In a high-mix, low-volume shop, the biggest enemy of productivity is setup time. Every minute spent changing tools is a minute the machine is not cutting. Multi-turret machines often feature a higher total tool count capacity across multiple turrets and live-tooling stations. This allows a shop to keep a "standard" set of tools for 80% of their recurring jobs permanently loaded.
By reducing the need to swap tools, shops can jump from one job to the next in minutes rather than hours. This agility allows businesses to accept smaller, more profitable jobs that their competitors with single-turret machines would have to decline due to prohibitive setup costs. The versatility of having multiple turrets ready to act ensures that your shop remains as flexible as the market requires.
Moving from a single turret CNC lathe to a multi-turret CNC turning center is more than just a hardware upgrade; it is a fundamental shift in manufacturing philosophy. By leveraging the power of simultaneous machining, superior dampening capabilities, and reduced setup times, shops can unlock levels of productivity that were previously unattainable. While the initial investment and the shift in programming strategy require careful planning, the long-term benefits—such as lower cycle times, higher precision, and the ability to handle complex, high-mix production—ensure that your business remains at the forefront of the industry. Investing in the right multi-turret technology today is the best way to secure your shop’s competitive advantage for the future.
