All You Should Know About the Single Spindle CNC Lathe

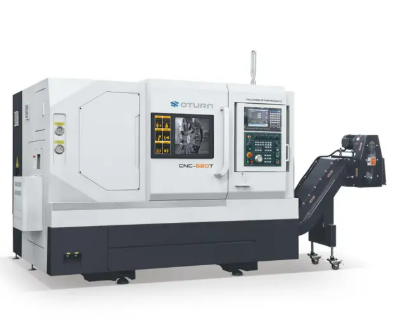

A single spindle CNC lathe is a machine tool where a single workpiece is held and rotated by one spindle while one or more cutting tools perform operations such as turning, facing, drilling, and grooving to shape the material into a finished component. The Single Spindle CNC Turning Center serves as an essential foundation for high-accuracy metal machining, offering unparalleled flexibility and ease of setup for a diverse range of complex parts.

Understanding the capabilities and operational nuances of these machines is critical for any procurement manager or production engineer. While multi-spindle machines often capture attention for their speed in mass production, the single spindle configuration excels in adaptability, setup times, and part quality. This article explores the core functionality, technical components, and strategic applications of these versatile machines.

Content Overview

What are the Components of Single Spindle CNC Lathes and How Do They Work?

The single spindle CNC lathe consists of a rigid bed, a high-precision motorized spindle, a tool turret, a CNC control unit, and various auxiliary systems that work in concert to convert raw bar stock or billets into precise finished parts through automated, computer-programmed material removal.

At the heart of the system is the spindle, which provides the rotational torque necessary to spin the workpiece at high speeds. Unlike traditional manual lathes, a high-performance CNC turning system utilizes sophisticated encoders to track spindle position with micro-degree accuracy, allowing for complex contouring and threading. The bed, typically made of heavy-duty cast iron, provides the dampening required to eliminate vibrations during heavy-duty cutting, ensuring surface finish quality.

The tool turret is another critical component, often equipped with a tool changer system that holds multiple cutting tools. This allows the machine to perform various operations—such as drilling, boring, and turning—without the need for manual tool changes. Modern machines often include live tooling capabilities, allowing the turret to perform milling operations while the part is still held in the spindle, significantly reducing the need for secondary processes.

Finally, the CNC controller serves as the "brain" of the operation. It interprets G-code instructions to coordinate the movement of the turret along the X and Z axes simultaneously with the rotation of the spindle. By integrating a reliable Single Spindle CNC Turning Center, operators can achieve repeatable accuracy within microns, making these machines ideal for industries ranging from automotive to medical device manufacturing.

What are the Limitations of Single Spindle CNC Lathes?

The primary limitation of a single spindle CNC lathe is its single-path production flow, which means that while it offers immense versatility, it generally has a lower overall throughput compared to multi-spindle or specialized transfer machines when producing extremely large quantities of identical, simple components.

Because the machine focuses all processing power on one workpiece at a time, the cycle time is dictated by the total time required for all cutting operations. If a component requires extensive machining, the spindle is occupied for the duration of that cycle, which may create a bottleneck if not balanced correctly with other machines in the production line. This is a key factor to consider when selecting an efficient turning machine solution for high-volume environments.

Furthermore, single spindle machines often require manual intervention or the integration of expensive bar feeders and gantry loaders for high-volume automation. Without these auxiliary components, the operator must manually load and unload parts, which increases labor costs and downtime between cycles. While a standard CNC turning center is highly efficient for small to medium batch sizes, it may not be the most economical choice for "lights-out" manufacturing of millions of identical, simple-geometry fasteners.

Lastly, the thermal expansion of the spindle during prolonged high-speed operations can introduce slight variations in part dimensions. While high-end machines mitigate this with oil chillers and thermal compensation software, this remains a factor that requires regular calibration. Managing these limitations requires a thorough understanding of the specific part geometry and the total required output volume for a given project.

What Differentiates the Single Spindle from the Multi Spindle CNC Lathes?

The fundamental difference lies in productivity throughput; single spindle lathes provide superior flexibility and lower initial capital investment, whereas multi-spindle lathes are optimized for massive, high-speed production runs at the cost of significantly longer setup times and higher setup complexity.

To help you decide which configuration best fits your needs, consider the following comparison table:

A single spindle configuration is designed for agility. If your business handles a high mix of low-to-medium volume parts, the ability to quickly switch between programs and tooling setups makes the single spindle machine a vital Single Spindle CNC Turning Center choice. It allows for rapid prototyping and modifications without the massive recalibration requirements inherent in multi-spindle systems.

In contrast, multi-spindle machines divide the machining process across multiple stations. While this dramatically reduces cycle time per part because multiple operations happen simultaneously, it makes the machine rigid. Once a multi-spindle setup is locked in, changing the part design requires re-tooling every station, which is inefficient for short production runs.

Applications of Single Spindle CNC Lathes

Single spindle CNC lathes are predominantly applied in industries requiring high-precision, complex geometries, such as the automotive, aerospace, medical, and electronics sectors, where versatility and the ability to perform secondary operations like milling on a single machine are mandatory.

1. Automotive Components: Manufacturing shafts, bushings, valves, and precision fasteners that require tight tolerances and specific surface finishes to ensure long-term reliability in vehicle systems.

2. Medical Devices: Producing orthopedic implants and surgical instruments where material integrity and absolute geometric precision are non-negotiable for patient safety.

3. Aerospace Parts: Machining intricate fittings and engine components from difficult-to-cut materials like titanium or inconel, requiring the rigid platform of a turning center to maintain accuracy.

4. Electronics and Hydraulics: Creating precise connectors, hydraulic pistons, and valve bodies that demand complex internal threading and boring capabilities within a compact footprint.

Conclusion

Selecting the right CNC turning equipment is a decision that balances production volume, part complexity, and long-term business strategy. While multi-spindle machines hold a niche for ultra-high volume production, the single spindle CNC lathe remains the most versatile and reliable workhorse for modern manufacturing. By offering superior flexibility, ease of setup, and the ability to handle complex, high-precision tasks with ease, these machines empower manufacturers to respond quickly to market demands and maintain high-quality standards. Whether you are scaling a production line or diversifying your machining capabilities, understanding these fundamental principles ensures you choose a machine that drives efficiency and growth.
