Mastering Machining: The Single Spindle and Multi-Spindle Guide

When examining modern manufacturing operations, the core question often arises regarding how these systems differ and which one serves high volume production best. The primary difference is that a single spindle machine processes a single workpiece at a time through a sequential series of cutting operations, making it ideal for high flexibility and short to medium production runs. Conversely, a multi spindle machine utilizes multiple spindles working simultaneously to execute parallel cutting operations on several workpieces at once, drastically reducing cycle times and making it the ultimate solution for high volume, continuous industrial manufacturing. Both machine architectures leverage advanced computerized control systems to maintain extreme precision across thousands of identical parts.

Understanding the specific mechanics, financial implications, and production capacities of these two methodologies is essential for optimizing any precision machining business. This comprehensive guide breaks down the structural differences, technological roles, and distinct advantages of both single and multiple spindle configurations. By evaluating how spindle dynamics influence overall production speed and surface finish quality, manufacturing professionals can make data driven procurement decisions. The following sections provide an analytical comparison designed to help you determine the most profitable asset allocation for your factory floor.

Article Content Directory

What is a Single Spindle Machine?

A single spindle machine is an automated manufacturing system designed with one main rotating axis that holds and spins a single workpiece while various cutting tools shape it sequentially. This specialized machinery forms the backbone of traditional and modern workshops alike, providing the fundamental basis for rotational cutting operations. Because all mechanical power and CNC programming focus entirely on a single point of interaction, these units offer extreme accuracy and are straightforward to program, set up, and maintain over long operational lifecycles.

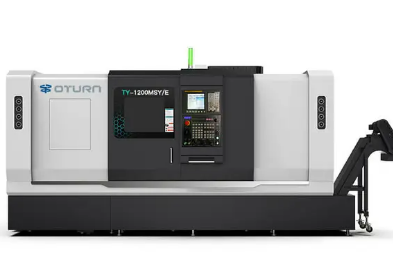

In the realm of high precision manufacturing, the single spindle configuration provides unmatched stability for a wide range of component geometries. A premier implementation of this architecture is the advanced Spindle CNC Turning Center, a machine tool that integrates automated tool changers, live tooling, and robust tailstocks to complete complex geometries in a single setup. By focusing all structural rigidity onto one main shaft, these machines can handle heavy roughing cuts as well as ultra precise finishing passes without introducing the minor alignment variations that can sometimes occur between multiple distinct shafts. This makes the single spindle architecture highly reliable for small to medium batch productions where part dimensions change frequently.

Modern industrial facilities often deploy a high quality Spindle CNC Turning Center alongside automatic bar feeding mechanisms to facilitate continuous, unattended operation. As the machine finishes fabricating one component, the collet opens, the bar feeder pushes a fresh segment of raw material into position, the collet clamps down, and the next cycle begins immediately. This level of automation allows a single operator to manage multiple machines simultaneously, maximizing factory floor productivity. For operations that require absolute geometric fidelity and frequent setup changes, investing in a specialized Spindle CNC Turning Center ensures that your production line remains highly agile, cost effective, and capable of holding tolerances down to the micron level.

The versatility of this machinery is further enhanced by the incorporation of multi axis sub spindles and independent turret systems. While the primary operations occur on the main shaft, a secondary pickoff system can grab the part to finish the back working elements, effectively delivering a completed component without manual intervention. This evolution bridges the gap between basic lathe work and fully automated manufacturing centers. Therefore, when a factory requires high flexibility, rapid changeovers, and a lower initial capital expenditure, the single spindle layout remains the most practical and dependable choice available on the advanced machinery market.

Single vs. Multi-Spindle Screw Machines: Understanding the Difference

The difference between single and multi spindle screw machines lies in the number of active workpieces processed at the same time and how the cutting tools interact with the raw material during a production cycle. While a single spindle unit works on one piece of bar stock at a time using sequential tool movements, a multi spindle machine houses several bars in a rotating drum, allowing multiple tools to cut different parts simultaneously. This fundamental divergence in mechanical architecture creates distinct operating models regarding cycle speed, tooling complexity, initial capital investment, and setup times.

To fully grasp the operational divergence, one must look at how tool pathing is executed across these different platforms. On a single spindle machine, the component remains in a single position while the tool turret moves along the X, Y, and Z axes to perform turning, facing, threading, and boring operations one after another. If a part requires six distinct operations, the machine takes the total time of all six cuts added together, plus the time required for tool indexes. This sequential progression means that while the part is highly accurate and easy to troubleshoot, the overall output speed is strictly limited by the physical constraints of linear tool travel and sequential cutting times.

In contrast, a multi spindle machine distributes these six operations across six independent stations within a single housing. Six bars of raw material are held in a massive index table that rotates precisely from one station to the next. At each station, a specific tool performs one segment of the total machining sequence simultaneously. Every time the drum indexes, a completely finished part drops out of the machine, meaning the total cycle time for a finished component is equal to the duration of the longest single cut rather than the sum of all cuts. This parallel processing capability exponentially increases production output, making it possible to produce thousands of parts per hour with minimal human intervention.

Evaluating these systems requires a clear understanding of their technical metrics, cost structures, and practical application boundaries. The table below outlines the distinct technical and economic performance indicators that define these two machining methodologies:

The Role of the Spindle in Machinery

The role of the spindle in machinery is to serve as the primary rotating axis that holds, spins, and provides the essential kinetic energy to either the workpiece or the cutting tool during the machining process. It is the heart of any chip making equipment, directly responsible for transmitting rotational power from the drive motors to the material interface. Without a perfectly balanced, rigid, and precisely controlled spindle assembly, achieving precise dimensional tolerances or superior surface finishes is completely impossible, regardless of how advanced the underlying CNC software or machine frame might be.

1 Transmission of Rotational Energy and Torque

The spindle system serves as the primary path for mechanical power within the machine tool. It must convert electrical energy from high performance spindle motors into rotational force, maintaining consistent speeds under heavy cutting loads. When turning tough alloys like stainless steel or titanium, the spindle must deliver massive low end torque to prevent stalling during heavy accurate roughing operations. Conversely, when working with aluminum or brass, it must spin at high revolutions per minute to achieve the optimal cutting speeds needed for clean material removal.

2 Structural Rigidity and Precision Alignment

Beyond simply spinning the material, the spindle must withstand immense radial and axial forces generated by cutting tools pressing against the workpiece. This requires high precision bearing arrangements, such as angular contact ball bearings or tapered roller bearings, which are preloaded to eliminate any mechanical play. The structural integrity of the spindle determines the machine ability to resist vibration and chatter, which are the main causes of premature tool wear and poor surface finishes. A highly rigid spindle ensures that the tool path is translated accurately onto the workpiece.

3 Thermal Stabilization and Lifecycle Longevity

Because spindles operate at high rotational speeds for extended periods, they generate significant internal friction and heat, particularly within the bearing cartridges. Advanced turning centers use active liquid cooling jackets and automated oil-air lubrication systems to manage this thermal energy. Controlling thermal expansion is critical because minor changes in spindle length can alter tool depth and ruin tight tolerance parts. By maintaining thermal equilibrium, the spindle ensures consistent part accuracy from the first piece in the morning to the last piece of the night shift.

Unveiling the Advantages of Multi-Spindle Machines

The advantages of multi spindle machines center on their unmatched production efficiency, massive throughput capabilities, and low per part manufacturing costs when executing high volume production runs. By allowing multiple cutting operations to occur simultaneously on separate bars of stock, these machines compress manufacturing timelines to a fraction of what a standard lathe requires. This parallel processing approach optimizes factory floors by maximizing output per square foot and lowering the total number of individual machine units a company needs to purchase to fulfill large commercial contracts.

1 Exponential Increases in Total Production Throughput

The most significant benefit of multi axis multi spindle technology is the drastic reduction in part cycle times. Because a finished component is produced with every single index of the spindle drum, production rates can increase by 300% to 500% compared to standard single spindle setups. This massive output capability allows manufacturers to meet tight delivery schedules for high volume industries like automotive manufacturing, aerospace fasteners, and medical hardware production, where millions of identical, high precision components are needed annually.

2 Maximizing Manufacturing Accuracy with Advanced Dual Spindle Configuration

Modern multi shaft systems often incorporate innovative tool movements to maximize accuracy on complex parts. A prime example of this engineering excellence is the high speed Spindle CNC Turning Center equipped with secondary pickups, or systems like the modern CNC Double Spindle Double Turret Lathe TTS Series, which allows simultaneous front and back machining of a workpiece without manual handling. By utilizing a CNC Double Spindle Double Turret Lathe TTS Series architecture, workshop managers can cut a part on the main shaft, transfer it seamlessly to the counter shaft, and perform secondary operations like cross drilling or slotting while the main shaft begins working on a new piece of material. This balanced workflow eliminates secondary handling errors and guarantees absolute coaxial precision between the front and back geometries of the component.

3 Dramatic Reductions in Factory Labor and Floor Space Costs

By consolidating multiple manufacturing operations into a single machine unit, a company can significantly optimize its factory floor space. One multi spindle system can replace a whole line of standard lathes, freeing up valuable real estate for assembly, inspection, or material storage. Furthermore, because one operator can manage a highly automated multi spindle machine, the labor cost per part drops significantly. This helps manufacturing facilities remain competitive against low cost overseas operations while maintaining a highly profitable, localized production system.

Conclusion

To summarize, selecting between single spindle and multi spindle machines depends on aligning your specific production volumes, part complexities, and capital budgets with the correct mechanical architecture. The single spindle setup remains the preferred solution for workshops that require high versatility, rapid programming turnarounds, and superior accuracy on short to medium batch sizes. Its straightforward configuration lowers the barrier to entry, providing an agile asset that easily adapts to changing project needs and diverse product geometries.

On the other hand, multi spindle systems represent the ultimate solution for high volume manufacturing efficiency. Although they require a larger initial investment and more intensive setup times, their ability to perform parallel cutting operations results in extremely low per part production costs and massive volume throughput. For long term contracts involving hundreds of thousands of identical parts, these high production systems provide the operational efficiency and scale needed to maximize profit margins and ensure consistent market success.

Ultimately, a forward thinking machine shop should view these technologies as complementary assets rather than competing options. Integrating flexible single spindle turning centers alongside high output multi spindle platforms allows a factory to easily handle custom prototype development as well as mass production demands. By understanding the mechanical roles and financial impacts of your spindle configurations, you can build a highly resilient, adaptive, and profitable precision manufacturing business capable of meeting strict international quality standards.
