You need a robust solution for demanding industrial tasks. A CNC gantry type machining center plays a critical role in heavy-duty applications. It offers superior rigidity, large work envelopes, and high precision. This enables you to efficiently and accurately process large, heavy workpieces.
CNC gantry machines are strong. They cut large, heavy parts with great accuracy.
These machines have a big work area. They can handle many different materials.
Gantry machines are good for tough jobs. They help make parts for planes and big equipment.

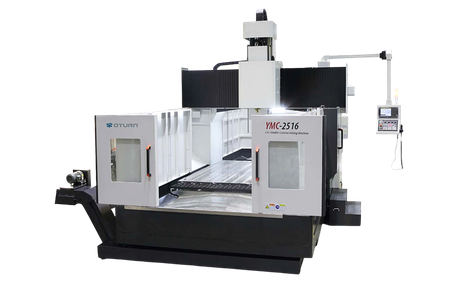

A gantry machining center is a specialized CNC machine. It features a distinctive bridge-like structure. This structure moves precisely over a stationary workpiece. The cutting tool mounts directly on this gantry. It performs machining operations from above. You use this machine for processing large and heavy components. Its core function involves precise and efficient material removal, making it ideal for demanding industrial applications.
Gantry designs offer unique characteristics that set them apart. The workpiece remains securely fixed on the machine bed, providing a stable foundation. The gantry, which carries the spindle and cutting tools, moves along the X, Y, and Z axes. This setup contrasts significantly with other machine types where the workpiece often moves. This design allows you to machine exceptionally large parts with ease. You benefit from consistent support for the workpiece throughout the entire machining process.
A gantry structure excels in heavy-duty machining due to its inherent rigidity and superior stability. The robust, overhead beam provides exceptional structural integrity. This minimizes vibration and deflection during aggressive cutting operations, even on tough materials. You can process massive and heavy workpieces without compromising accuracy or surface finish. The fixed workpiece setup further enhances overall stability, preventing movement during machining. This design ensures high precision, even with significant material removal rates. A CNC gantry type machining center handles your most demanding tasks effectively, delivering reliable performance for large-scale projects.
You choose a CNC gantry type machining center for its distinct benefits in demanding industrial environments. These machines offer specific advantages that make them indispensable for processing large and heavy components.
You gain significant advantages from the inherent rigidity of a gantry structure. The robust frame, often constructed from high-grade cast iron, provides exceptional structural integrity. This design minimizes vibration and deflection during aggressive cutting operations. You can apply high cutting forces without compromising the machine's stability. This superior rigidity ensures consistent performance and a better surface finish, even when machining tough materials or very heavy workpieces.
A key benefit you experience is the expansive work envelope. The gantry design allows the workpiece to remain stationary on the machine bed. The gantry, carrying the cutting tools, moves over the part. This configuration accommodates exceptionally large and heavy workpieces. You can process components that other machine types simply cannot handle. This capacity is crucial for industries manufacturing massive parts, such as those found in aerospace or energy sectors.
You achieve high levels of precision and accuracy, even on large-scale components. The machine's superior rigidity directly contributes to this. It prevents unwanted movement or vibration during machining. Advanced CNC control systems guide the tools with extreme accuracy across long distances. This combination ensures tight tolerances and excellent surface finishes on your largest parts. You can rely on consistent, repeatable results for critical components.
You can significantly boost your material removal rates. The robust structure supports powerful spindles and aggressive cutting parameters. This means you can take deeper cuts and feed tools faster. The machine maintains stability under these demanding conditions. This capability directly translates to higher productivity and reduced cycle times for your heavy-duty machining tasks.
You find great versatility in these machines. They perform a wide range of operations, including milling, drilling, boring, and tapping. This allows you to produce complex components with intricate geometries. The advanced CNC controls enable multi-axis machining, opening possibilities for highly detailed parts. You can also process diverse materials, from metals to advanced composites like graphite, carbon fiber, and ceramics, making the CNC gantry type machining center a flexible solution for various manufacturing needs.
You need specific features for a CNC gantry type machining center to excel in heavy-duty applications. These components ensure the machine handles extreme demands, delivering precision and reliability.
You require an exceptionally strong foundation for heavy-duty machining. The machine's structural components and frame design are paramount. Manufacturers build these machines with materials that resist vibration and flex. You often find:
Heavy-duty all-welded vibration-free machine frames made of structural steel.
Solid steel frames.
Solid cast steel frames for vibration-free milling.
Steel beams.
Steel structures reinforced with heavy ribs to resist flex and dampen vibrations.
Sturdy welded steel frames for stability and durability.
Robust gantry steel structures for stability and durability.
These designs ensure the machine maintains its integrity under significant cutting forces. You achieve consistent accuracy and a superior surface finish.
Heavy-duty applications demand powerful spindles. These spindles deliver the necessary torque and power to cut tough materials efficiently. You need sustained cutting forces for high material removal rates. Consider the range of available spindle options.
You rely on advanced CNC control systems for complex heavy-duty tasks. These systems manage multi-axis movements with extreme precision. They coordinate the gantry's motion along X, Y, and Z axes, and often include rotational axes. This allows you to machine intricate geometries and complex contours. The control system ensures accurate tool paths and optimal cutting conditions. You achieve tight tolerances and repeatable results on large components.
You need specialized tooling and efficient tool changing for heavy-duty operations. These machines often use robust tools designed for aggressive cutting. Automatic tool changers (ATCs) minimize downtime. They quickly swap tools, allowing continuous operation.
You must securely hold massive workpieces during machining. Effective clamping and support systems prevent movement and vibration. They ensure stability throughout the entire process. Key features include:
Permanently fixed tables accommodating workpiece weights over 2 tons per square meter.
Hardened table surfaces handling workpieces without affecting mechanical table parts. This ensures superior protection during loading and unloading.
These robust systems provide a stable platform for even the heaviest components. You maintain precision and safety.
You generate a large volume of chips and heat during heavy-duty machining. Efficient chip management and coolant systems are crucial. Chip conveyors automatically remove metal shavings, preventing accumulation. This maintains a clean work area and prevents interference with machining operations. Coolant systems deliver fluid to the cutting zone. They reduce heat, lubricate the tool, and flush away chips. This extends tool life and improves surface finish. You ensure continuous, uninterrupted operation with these essential systems.
You find these powerful machines indispensable across many demanding industries. They tackle the unique challenges of large-scale manufacturing.
You rely on these machines for producing critical aerospace components. They machine large structural parts like wing spars, fuselage sections, and landing gear components. You achieve the high precision and tight tolerances necessary for flight safety. These machines handle tough materials such as aluminum, titanium, and advanced composites with ease.
You use these machining centers extensively in the energy sector. They create massive components for both oil and gas exploration and wind power generation. You produce large turbine blades, generator housings, and heavy drilling equipment. These applications demand exceptional durability and reliability from the machined parts.
You manufacture large frames, chassis, and structural components for heavy equipment. This includes construction machinery, mining equipment, and agricultural machinery. The machines provide the robustness and precision required for assembling these massive pieces of equipment. You ensure the final products withstand extreme operational conditions.
You create large dies and molds for various industries, including automotive, aerospace, and consumer goods. These machines deliver the high surface finish and accuracy essential for complex mold geometries. You produce components like car body panels and large plastic parts with intricate details.
You machine large structural components for the shipbuilding industry. This includes propellers, engine blocks, and sections of ship hulls. These applications often involve specialized, corrosion-resistant materials. You achieve the precision necessary for optimal fit, function, and long-term performance in harsh marine environments.
You must carefully select your CNC gantry type machining center. This ensures optimal performance for your heavy-duty applications.
You first assess the physical dimensions and weight of your typical workpieces. A machine's capacity directly impacts its suitability. You need a robust table design. A permanently fixed table accommodates workpiece weights exceeding 2 tons per square meter. The hardened table surface handles workpieces without affecting mechanical table parts. This ensures superior protection during loading and unloading operations.
You must consider the materials you plan to machine. Different materials require specific spindle power, cutting tools, and machine rigidity. Ensure the machine you choose handles materials like tough alloys, composites, or even ceramics effectively.
You evaluate the machine's ability to meet your required precision and surface finish. High-precision applications demand advanced control systems and superior machine construction. You look for features that minimize vibration and thermal expansion.
You consider automation and integration options. Automatic tool changers, pallet changers, and robotic loading systems enhance productivity. These features allow seamless integration into your existing production line.
You assess the total cost of ownership beyond the initial purchase price. This includes operating costs and maintenance.
You also account for power and utilities. Modern 5-axis systems increase electricity consumption by approximately 10–15% compared to 3-axis machining. This is due to higher spindle power and axis motion. Tooling and tool life are also factors. Advanced tool orientation improves cutting conditions. This leads to a 20–40% increase in tool life in materials like titanium and Inconel. It also reduces chatter and minimizes edge wear through adaptive toolpaths. Buyers often underestimate hidden costs. These include CAM software and post-processor development, operator training and process validation, and metrology upgrades for complex geometry inspection. Annual maintenance and calibration costs are higher due to rotary axis calibration, thermal compensation systems, and multi-axis kinematic verification.
You find the CNC gantry type machining center indispensable for demanding industrial tasks. It offers unmatched rigidity, capacity, and precision for large, complex components. Its robust design and advanced features effectively address heavy-duty machining challenges. This ensures high productivity and quality across diverse industries.
You can process diverse materials. These include metals, composites, graphite, carbon fiber, and ceramics. The machine handles tough alloys effectively.
Rigidity minimizes vibration and deflection. This ensures high precision and accuracy. You achieve better surface finishes on large, heavy workpieces.
Aerospace, energy, heavy equipment, die/mold making, and shipbuilding industries benefit. They require large-scale, high-precision component manufacturing.
