How Does Coordinate Axis Layout Enable Efficient Machining in 5-axis CNC Machining Center?

In modern manufacturing, the 5-axis machining center has become a core tool for machining complex parts, thanks to its outstanding high precision, high efficiency, and powerful processing capabilities. The secret behind its impressive performance largely lies in its unique and sophisticated coordinate axis layout design. This article delves into the coordinate axis layout of the five-axis machining center, revealing its operational mysteries and helping readers fully understand the technical advantages and application value of this advanced equipment.

1. Coordinate Axis Composition of the Five-Axis Machining Center

The coordinate axis layout of a five-axis machining center typically consists of three linear axes (X, Y, Z) and two rotary axes (any two of A, or B, and C axis). The three linear axes are responsible for the linear movement of the workpiece or tool in space, achieving precise positioning in three-dimensional space, which forms the foundation of traditional three-axis machining centers. The addition of two rotary axes provides the machine with greater flexibility and degrees of freedom, allowing the tool to rotate around different axes to machine complex curved surfaces.

This combination of axes not only expands the machining spatial range but also greatly enhances the adaptability of the machining center, meeting the high-precision requirements of complex parts in industries such as aerospace, automotive manufacturing, and mold making.

2. The Key Role of Rotary Axes: Multi-Angle Efficient Machining

The inclusion of rotary axes is the biggest distinguishing feature of the five-axis CNC machining center compared to traditional three-axis machines. Through the motion of the rotary axes, the tool can rotate multi-directionally in space, always maintaining the optimal contact angle with the workpiece surface. This flexible motion brings the following advantages:

· Avoidance of Interference and Improved Machining Accuracy

When machining complex curved surfaces, the rotary axes adjust the tool angle to avoid collisions between the tool and the workpiece, ensuring continuous and stable machining paths, thereby significantly improving machining accuracy.

· Enhanced Surface Quality

By optimizing the contact angle between the tool and the workpiece, cutting vibrations and tool wear are reduced, resulting in smoother finished surfaces that meet high-quality machining standards.

· Reduced Tool Changes and Re-Fixturing

Multi-axis linkage allows multiple machining processes to be completed in a single setup, reducing tool changes and repositioning time, greatly shortening machining cycles and improving production efficiency.

3. CNC System: The “Brain” Coordinating Multi-Axis Motion

The complex movements of the five-axis machining center rely on the precise control of a high-performance CNC system. The CNC system controls the speed, acceleration, and trajectory of each axis based on pre-programmed machining instructions to achieve synchronized multi-axis motion. Its core functions include:

· Real-Time Data Processing and Feedback

The CNC system continuously collects position and speed data of each axis, quickly responding to machining conditions and adjusting motion parameters to ensure stable and error-free machining.

· Complex Trajectory Planning

It calculates the optimal machining path for complex curved surfaces and coordinates the linkage of all five axes to achieve efficient and precise cutting.

· Error Compensation and Optimization

Using sensor feedback and software algorithms, the system automatically compensates for mechanical errors and thermal deformation, ensuring the final machining dimensions and geometric tolerances meet design requirements.

4. Impact of Coordinate Axis Layout on Machining Range and Capability

The presence of rotary axes not only increases degrees of freedom but also significantly expands the machining range of the center. The five-axis machining center can cover a broader spatial area, suitable for machining the integral structures of large and complex parts, bringing the following benefits:

· Reduced Segmented Machining and Assembly

Complex parts no longer need to be split into multiple sections for separate machining, reducing assembly errors and process complexity.

· Improved Overall Accuracy and Reliability

Completing integral machining in one setup avoids cumulative errors caused by multiple re-fixturing, enhancing dimensional accuracy and structural stability.

· Adaptation to More Complex Machining Processes

Capable of performing engraving, beveling, curved surface machining, and other complex processes to meet diverse manufacturing needs.

5. Conclusion

The operational secret of the five-axis machining center lies in its exquisite coordinate axis layout design. The organic combination of three linear axes and two rotary axes not only endows the CNC machine with high flexibility and degrees of freedom but also depends on the precise coordination of advanced CNC systems to achieve efficient and high-precision machining of complex parts. As manufacturing demands for complex parts continue to grow, 5-axis machining centers will continue to play an irreplaceable core role.

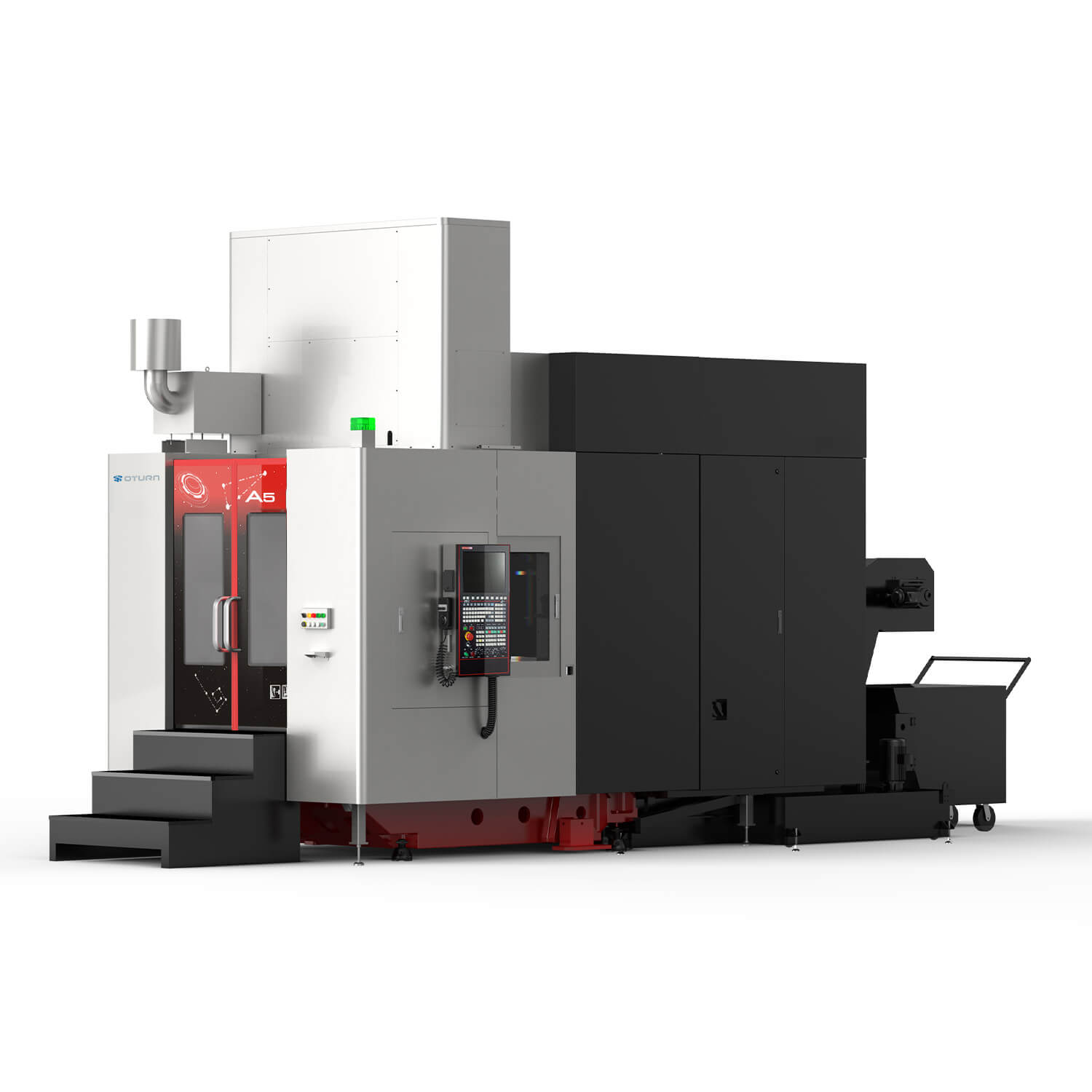

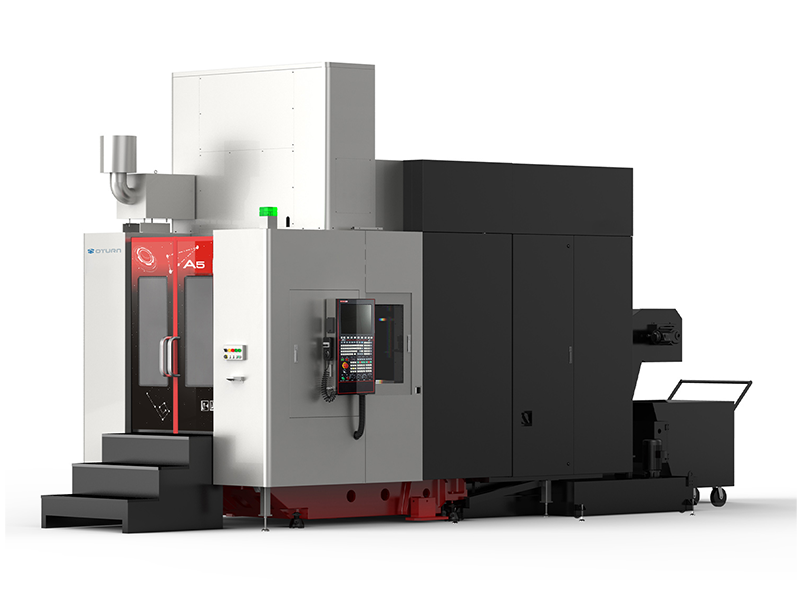

OTURN's series of five-axis machining centers adopts advanced mechanical structures and intelligent CNC systems, ensuring each machine delivers exceptional machining accuracy and stability. Meanwhile, flexible customization options enable customers to improve production efficiency and cost-effectiveness simultaneously.
