The difference between servo turret and power turret of CNC lathe？

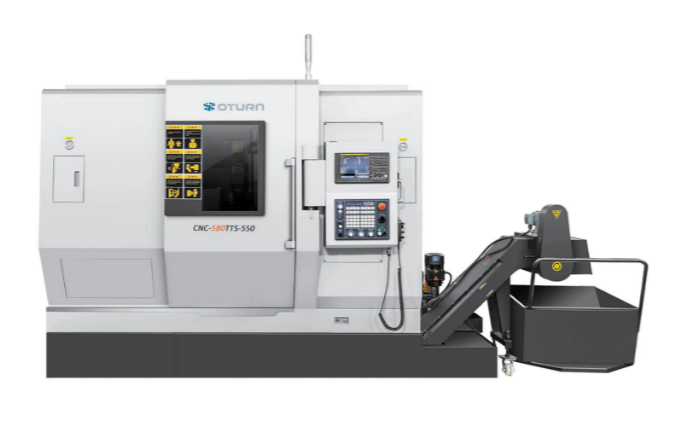

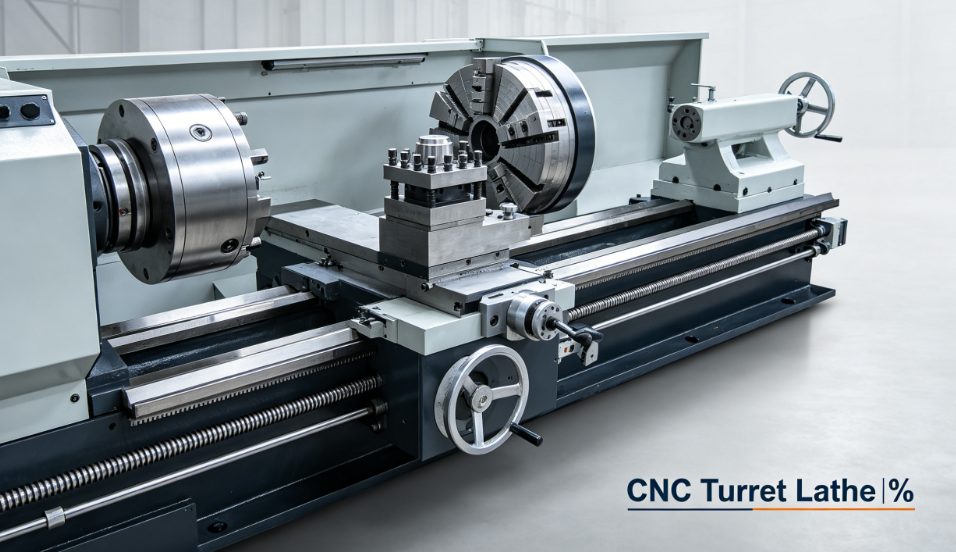

In the modern manufacturing landscape, the CNC Turret Lathe has evolved into a highly sophisticated machine capable of complex geometries and high-precision outputs. One of the most critical decisions for machine tool buyers and factory managers is selecting the right tool carrier system. The turret is the heart of the lathe, responsible for holding, indexing, and sometimes powering the cutting tools that shape the workpiece.

The primary difference between a servo turret and a power turret lies in their functionality: a servo turret uses a servo motor solely for high-speed, high-precision tool indexing (rotation), while a power turret (also known as a live tool turret) incorporates an additional drive system to rotate the cutting tools themselves, enabling milling, drilling, and tapping operations directly on the lathe.

Choosing between these two technologies requires a deep understanding of your production needs. While both aim to improve efficiency, they serve different strategic purposes in a machine shop. A servo turret focuses on reducing non-cutting time through rapid tool changes, whereas a power turret transforms a standard lathe into a multi-tasking turning center. This article will provide a comprehensive breakdown of these components, their advantages, and how to determine which is best for your specific application.

What is a Power Turret?

A power turret, frequently referred to as a live tooling turret, is a specialized tool carrier on a CNC Turret Lathe that features an internal drive motor and gear system to provide rotational power to individual tool holders.

The power turret is a game-changer for integrated manufacturing. Unlike traditional turrets that only hold stationary tools for turning, the power turret allows the machine to perform secondary operations like off-center drilling, keyway milling, and transverse tapping. This functionality is achieved through a complex internal mechanism where a drive shaft engages with the tool holder once it is indexed into the working position.

By using a power turret, a CNC Double Spindle Double Turret Lathe can complete a part in a single setup. This "Done-in-One" philosophy significantly reduces the need for moving parts between different machines, such as a separate machining center, which minimizes human error and maintains better concentricity between turned and milled features.

Furthermore, power turrets often utilize standardized interfaces like BMT (Base Mount Tooling) or VDI (Verein Deutscher Ingenieure). BMT is particularly popular in heavy-duty applications due to its superior rigidity and alignment accuracy. The integration of power tooling requires the lathe to have a "C-axis" on the spindle, allowing for precise rotational positioning of the workpiece to sync with the rotating tool.

What is a Servo Turret?

A servo turret is a tool indexing system that utilizes a dedicated servo motor to drive the rotation of the turret disk, ensuring extremely fast tool changes and high-precision positioning without the use of hydraulic or pneumatic indexing pins.

The transition from traditional hydraulic turrets to servo-driven systems represented a massive leap in CNC efficiency. In a servo turret, the motor is connected via a high-precision gear set (often a Three-piece Curvic Coupling) to the tool disk. Because servo motors provide absolute feedback, the turret can index to any station in either direction via the shortest path, drastically reducing idle time.

One of the most important maintenance aspects for these high-precision components is ensuring the center height adjustment for lathe turrets is perfectly calibrated. Even the fastest servo motor cannot compensate for a tool that is not aligned with the spindle centerline, which would result in poor surface finish and dimensional inaccuracies.

Modern servo turrets are designed for high-duty cycles. They offer "non-stop" indexing where the turret unclamping, rotation, and re-clamping happen in a fraction of a second. This speed is vital for high-volume production environments where saving 0.5 seconds per tool change can translate into hundreds of additional parts produced over a week's shift.

Advantages of the Servo Turret

The advantages of the servo turret center on its remarkable speed, positioning accuracy, and simplified mechanical design, which collectively enhance the overall productivity and reliability of a CNC Turret Lathe.

1. High-Speed Indexing and Reduced Cycle Times

   The most immediate benefit is the speed of tool selection. Traditional turrets might take 1-2 seconds to index between distant stations. A servo turret can often achieve a station-to-station index in less than 0.2 seconds. This is crucial for complex parts requiring multiple tool changes.

2. Superior Accuracy and Repeatability

   Using a servo motor combined with a high-precision Curvic coupling ensures that the tool returns to the exact same position every time. This repeatability is essential for maintaining tight tolerances in aerospace and medical device manufacturing. For those seeking maximum precision, utilizing a Double Spindle Double Turret setup allows for simultaneous machining, doubling the output without sacrificing the accuracy provided by the servo drive.

3. Low Maintenance and High Reliability

   Unlike hydraulic turrets, which are prone to leaks and require complex valve maintenance, servo turrets are largely "dry" systems. This reduces the risk of contamination and simplifies the machine's internal architecture. Furthermore, the ability to perform precise turret center height alignment ensures that the mechanical components are not subjected to unnecessary stress during heavy cutting.

4. Bi-directional Random Indexing

   A servo turret doesn't need to rotate in one direction or return to a "home" position before selecting the next tool. It calculates the shortest path to the target tool station, whether clockwise or counter-clockwise, optimizing the movement logic.

How to distinguish the difference between servo turret and power turret?

Distinguishing between a servo turret and a power turret involves identifying whether the turret disk only rotates to change tools (Servo) or if the tools themselves can spin to perform machining operations (Power).

The differences can be categorized into four main areas:

1. Functional Scope

A servo turret is strictly for turning operations. It holds the tool stationary while the workpiece rotates. A power turret, however, adds milling and drilling capabilities. If you see a tool spinning on the turret while the main spindle is locked or indexing slowly (C-axis), it is a power turret.

2. Internal Drive Mechanism

3. Tool Holder Interface

Look at the tool stations. A power turret will have a drive coupling (often a tang or gear interface) visible inside the tool pocket. This coupling engages with the live tool holder to transmit torque. A standard servo turret pocket is simply a mounting block for static shank tools.

4. Integration with Machine Axes

A power turret almost always requires the lathe to have a C-axis (controlled spindle rotation) and often a Y-axis (vertical movement of the turret). A standard CNC Turret Lathe with only a servo turret typically operates on X and Z axes only.

What distinguishes a single-start thread from a multi-start thread?

A single-start thread consists of one continuous ridge wrapped around a cylinder, where the lead equals the pitch, whereas a multi-start thread consists of two or more intertwined ridges, allowing for a much faster linear advancement per revolution.

In the context of a CNC Turret Lathe, the ability to cut these threads depends heavily on the synchronization between the spindle and the turret's Z-axis movement.

1. Lead vs. Pitch Dynamics

   In a single-start thread, if the pitch is 2mm, the nut moves 2mm in one full turn. In a double-start thread with the same 2mm pitch, the "lead" is actually 4mm. This means the Z-axis must move twice as fast during the threading cycle. High-speed servo turrets are essential here to ensure the tool is positioned rapidly for each successive pass of the multi-start thread.

2. Applications of Multi-start Threads

   Multi-start threads are used when quick assembly is needed (like bottle caps) or in power transmission where high linear speed is required without a coarse, deep thread profile. Machining these requires extreme precision in the turret center height settings, as any deviation will cause the multiple thread starts to be asymmetrical, leading to a failed part.

3. Machining Considerations

   Cutting multi-start threads requires the CNC controller to offset the start point for each thread. For example, a triple-start thread requires three separate threading cycles starting at 0, 120, and 240 degrees. The stability of the turret during these high-speed Z-axis reversals is a testament to the build quality of modern CNC systems.

Conclusion

Understanding the difference between a servo turret and a power turret is fundamental to optimizing your CNC machining strategy. The servo turret offers the pinnacle of speed and reliability for traditional turning, making it the workhorse of mass production. In contrast, the power turret provides the versatility needed for complex, low-to-medium volume parts that require secondary milling operations.

By integrating technologies such as the CNC Turret Lathe into your facility, you gain the ability to handle a wider variety of customer demands. Whether you are focusing on the rapid indexing of a servo system or the multi-tasking prowess of a power turret, ensuring proper maintenance and setup remains the key to longevity and precision.
