As a vital piece of equipment in modern manufacturing, CNC turning centers are widely used in aerospace, automotive, medical, and other industries due to their high precision and multifunctional machining capabilities. This article will explore their structure, types, suitable materials, and advantages to help you gain a comprehensive understanding of this advanced CNC machine tool.
· A CNC turning center is a multifunctional, high-precision CNC machine primarily used for machining cylindrical and complex parts.
· Its core components include the spindle, tool turret, CNC system, and other key parts, supporting multi-axis simultaneous.
· The main types are horizontal and vertical turning centers, suitable for different workpiece shapes and machining needs.
· It can machine metals, plastics, and some composite materials, widely used in aerospace, automotive, medical, and other industries.
· Using CNC turning centers significantly improves machining accuracy, efficiency, and automation levels while reducing labor costs.

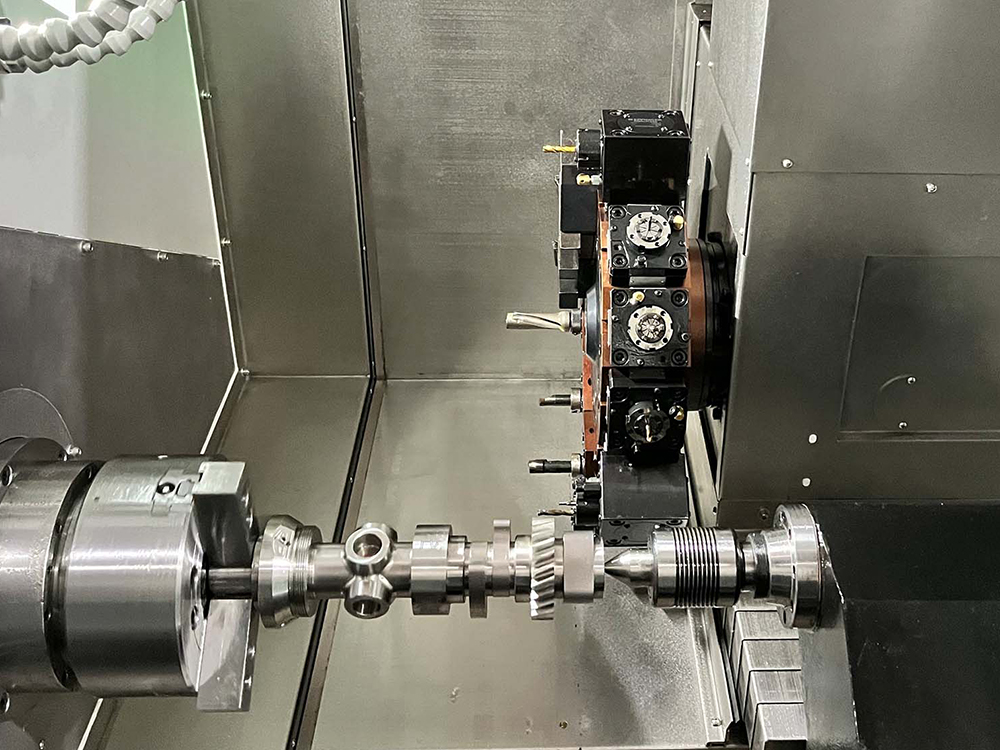

A CNC turning center is a machine tool controlled by a computer numerical control system, primarily used for turning operations where the workpiece rotates and the turning tool shapes it. Compared to ordinary CNC lathes, CNC turning centers usually have multi-axis functions (such as 3-axis, 4-axis, or even 5-axis), and can perform milling, drilling, tapping, and other machining operations besides turning. This multifunctionality enables efficient and high-precision machining of complex cylindrical and rotational parts.
Understanding the main parts helps grasp its machining capabilities:
· CNC Control Panel: The brain of the machine where operators input programs and precisely control the machining process.
· Spindle: Holds and rotates the workpiece; spindle speed control directly affects machining accuracy.
· Headstock and Tailstock: Support the workpiece to ensure stability and precision during machining.
· Tool Turret: Holds multiple turning tools, enabling rapid tool changes and supporting various machining operations automatically.
· Chuck and Collet: Firmly clamp the workpiece to prevent movement during machining.
· Machine Bed: The foundational structure supporting all components and maintaining rigidity and precision.
· Carriage/Tool Slide: Precisely moves the turning tool to perform machining on the workpiece.
CNC turning center mainly fall into two categories:
· CNC Horizontal Turning Center: The spindle axis is horizontal, suitable for machining longer workpieces and allowing easy chip removal; the most common type.
· CNC Vertical Turning Center: The spindle axis is vertical, ideal for large, heavy, or irregularly shaped workpieces, often integrating milling and drilling functions.
Some advanced turning centers feature sub-spindles and Y-axis movement to enable multi-axis simultaneous machining, completing multi-face machining of complex parts in a single setup.
CNC turning centers can machine a wide variety of materials, including aluminum alloys, steel, stainless steel, titanium alloys, brass, copper, and superalloys. The choice of material depends on specific application requirements, precision demands, and machining parameters.
· Aerospace: Manufacturing engine components, impellers, shafts, and structural parts requiring high precision.
· Automotive: Producing cylinder blocks, gears, bearings, and custom parts.
· Medical: Machining surgical instruments, implants, and prosthetics with stringent precision.
· Electronics: Fabricating precision housings, connectors, and miniature components.
· Oil & Gas: Machining valves, pistons, and durable parts.
· General Manufacturing: Producing threaded parts, fasteners, bushings, and various components.
· High Precision and Repeatability: CNC control ensures consistent quality across batches.
· Multifunctional Integration: Turning, milling, drilling, tapping, and other operations completed in one setup reduce errors.
· Improved Productivity: Automatic tool changes and multi-axis simultaneous shorten machining cycles.
· Capability to Machine Complex Parts: Able to produce geometries difficult or impossible on conventional lathes.
· Wide Material Compatibility: Optimized turning parameters for diverse materials.
· Reduced Labor Costs: High automation reduces reliance on skilled manual operators.
CNC turning centers are essential equipment for modern manufacturing of cylindrical and complex parts. Understanding their structure, types, suitable materials, applications, and advantages helps enterprises make informed selections to enhance production efficiency and product quality.
