Choosing gang tooling or a turret for a CNC lathe

Choosing between gang tooling and a turret for a CNC lathe depends primarily on your production volume and part complexity. Gang tooling offers unmatched speed and simplicity for small, high-precision parts with fewer tool requirements, while a CNC turret lathe provides the versatility and tool capacity necessary for complex geometries and larger workpieces.

In the following guide, we will analyze the structural differences, performance metrics, and cost implications of both systems. Whether you are setting up a boutique machine shop or a large-scale industrial production line, this comprehensive comparison will help you align your machinery choice with your long-term business goals.

Content Summary

1. Understanding Gang Tooling Systems

Gang tooling refers to a configuration where all cutting tools are mounted in a fixed, linear row on a large cross-slide, allowing the CNC turret lathe alternative to move rapidly between tools without the need for a rotational indexing delay.

Gang tooling is the hallmark of efficiency for small-diameter parts. Because the tools are always "ready," the machine only needs to move the slide to align the next tool with the workpiece. This eliminates the 0.5 to 2.0 seconds typically wasted during a turret rotation. In high-volume production where every second counts, these micro-savings accumulate into significant daily output increases.

Furthermore, gang tool lathes are known for their mechanical simplicity. Without the complex internal gears, hydraulics, or servo motors required to rotate a turret, there are fewer moving parts to wear out. This simplicity often results in a more rigid setup, as the tools are bolted directly to the slide, minimizing the leverage effect that can cause vibration in some turret designs.

However, the primary limitation of gang tooling is space. There is a physical limit to how many tools you can fit across the slide without them interfering with the workpiece or the chuck. This makes gang tooling ideal for parts requiring 3 to 6 tools, but less effective for highly intricate components that demand a wider variety of specialized cutters.

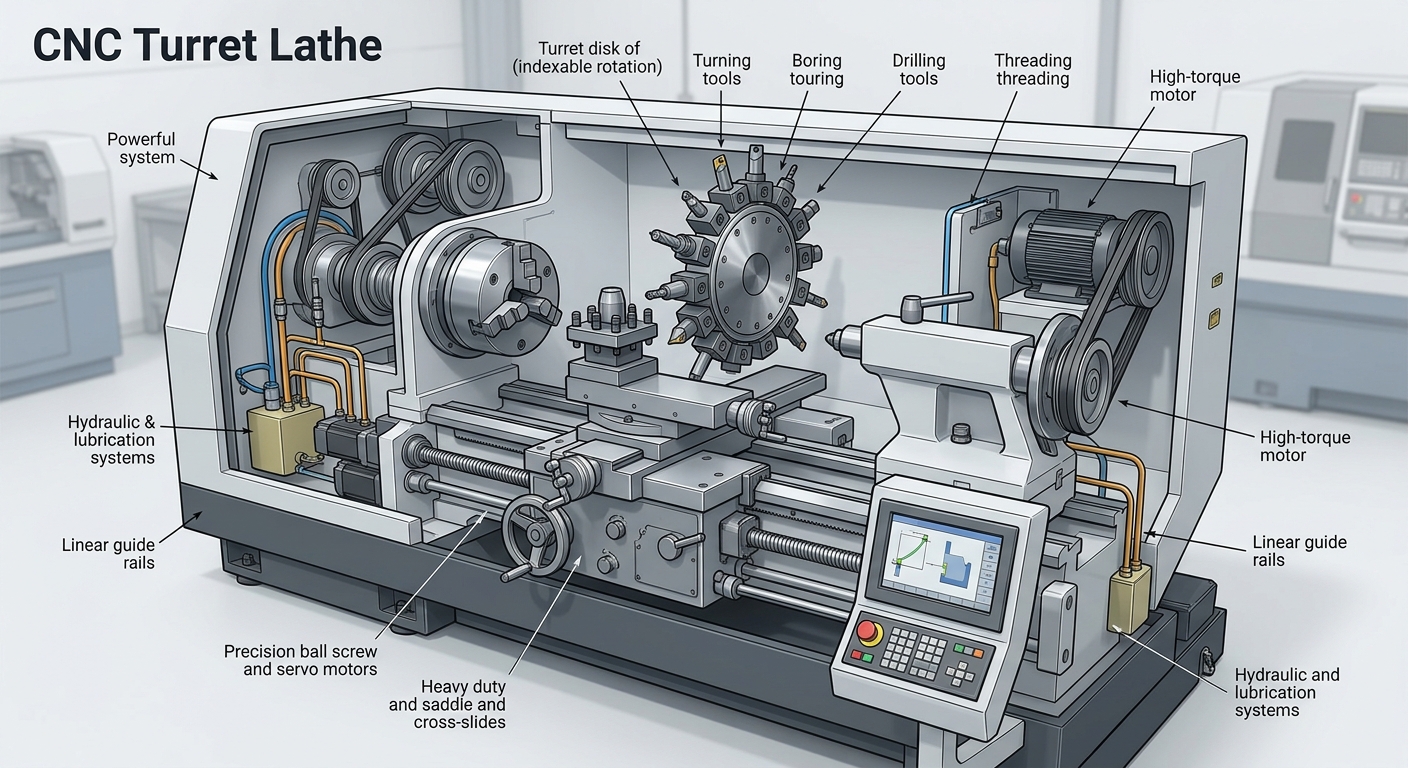

2. The Mechanics of a CNC Turret Lathe

A CNC turret lathe utilizes a rotating tool carrier that can hold a vast array of tools, indexing them into position as needed, which provides the flexibility to handle complex parts and larger diameters that gang tooling cannot accommodate.

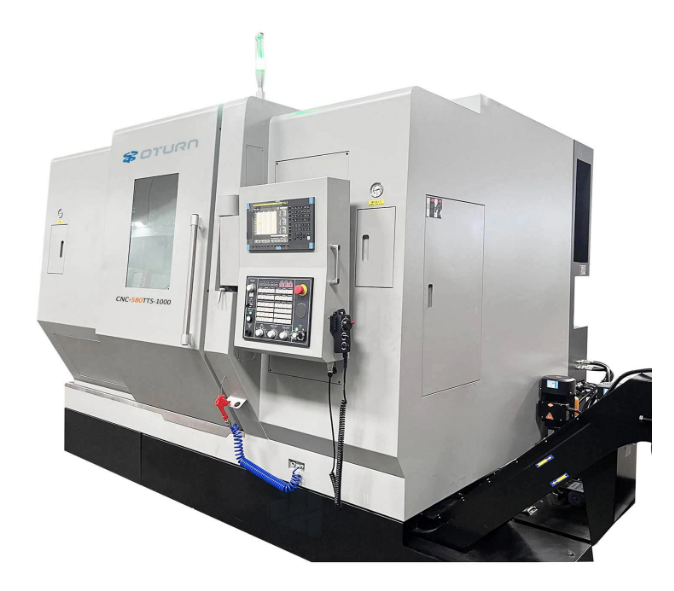

The versatility of the turret system is its greatest strength. Modern turrets can hold 8, 12, or even 24 tools at once. This high tool density allows a single setup to perform turning, facing, threading, boring, and even "live tool" operations like milling or drilling if the turret is powered. For businesses handling diverse client needs, a CNC Double Spindle Double Turret Lathe provides the ultimate platform for completing finished parts in a single cycle.

Mechanically, the turret is a marvel of engineering. When a tool change is commanded, the turret unclamps, rotates to the programmed station, and reclamps with high precision. This allows for a much larger "swing" area, meaning the machine can process workpieces with significantly larger diameters compared to the crowded environment of a gang-tool slide.

The complexity of the turret does come with a trade-off in maintenance. The indexing mechanism involves intricate alignment procedures. To ensure the machine stays accurate, operators must understand the detailed methods for turret center height adjustment, as even a minor misalignment in a rotary system can result in tapered cuts or premature tool wear.

3. Speed vs. Versatility: The Core Conflict

The primary conflict between these two systems is the trade-off between the rapid chip-to-chip speed of gang tooling and the massive multi-functional versatility of a CNC turret lathe.

When analyzing speed, gang tooling wins the "sprint." Because the tools are positioned in a line, the transition from a roughing tool to a finishing tool involves a simple linear move. There is no "indexing time," only "travel time." This makes gang tool lathes the preferred choice for the medical and electronics industries, where small pins, screws, and connectors are produced by the millions.

On the other hand, the turret system wins the "marathon" of complexity. A turret allows the operator to keep a standard set of tools permanently loaded—drill, tap, turn, and part-off—while still having empty stations for specialized cutters. This reduces setup time between different jobs. If you are running a job shop where the parts change every two days, the versatility of a turret is far more valuable than the fractions of a second saved by gang tooling.

To bridge the gap between these two, some advanced manufacturers utilize a dual-turret configuration to perform simultaneous machining on both ends of a part. This combines the high tool count of a turret system with the parallel processing power needed to compete with the cycle times of gang-style machines.

Comparison of Performance Factors

4. Precision and Repeatability Standards

Precision in gang tooling is derived from its rigid, low-mass structure, whereas a CNC turret lathe maintains precision through heavy-duty clamping forces and sophisticated alignment compensation.

Gang tooling is often cited as having superior repeatability for extremely tight tolerances. Because the tool block is bolted directly to the cross-slide, there is no "play" or "backlash" that can sometimes develop in an indexing turret's gears over years of use. For parts with tolerances in the micron range, the thermal stability of a simple gang-tool plate is a significant advantage.

Turret lathes, however, have evolved to meet these challenges. Modern hydraulic and servo-driven turrets use Curvic couplings—precision-ground tooth gears—that lock the turret into place with incredible force. This ensures that every time the turret rotates, it returns to the exact same position within ten-thousandths of an inch. To maintain this level of precision, users must periodically perform a turret center height adjustment to counteract the effects of tool pressure and structural settling.

Vibration damping is another area where the two differ. A turret, being a larger mass, can often absorb more cutting vibration when machining tough materials like stainless steel or titanium. Gang tools, while rigid, are closer to the spindle, which can sometimes transmit more harmonic vibration if the machine base is not sufficiently heavy.

5. Cost Analysis and Maintenance Requirements

While gang tooling typically has a lower initial purchase price and lower maintenance costs due to fewer moving parts, a CNC turret lathe offers better long-term ROI for shops that require flexibility and the ability to take on diverse contracts.

Initial Investment and Operational Costs

1. Purchase Price: Gang tool lathes are generally more affordable. Their simple construction allows manufacturers to offer high-precision spindles on a lower-cost frame.

2. Maintenance: Turret systems require more frequent servicing. The cooling systems, lubrication for the indexing gears, and hydraulic seals all represent ongoing costs.

3. Tooling Costs: Turret lathes often require specialized tool holders (BMT or VDI), which can be more expensive than the simple square-shank tool posts used in gang setups.

Long-term profitability depends on your "uptime." If a turret crashes, it can be a costly and time-consuming repair involving realigning the entire indexing head. If a gang tool crashes, you usually just need to replace a tool holder or realign the block on the slide. However, the ability to perform complex operations on a high-performance turret system means you can charge more per part, often offsetting the higher maintenance costs.

6. Application Guide: Which One Fits Your Project?

The choice between these two systems should be dictated by the specific geometry of your parts, the material being cut, and your expected production volume.

When to Choose Gang Tooling

1. High Volume, Low Complexity: If you are making 50,000 units of a simple brass fitting, gang tooling is unbeatable.

2. Secondary Operations: For simple finishing work on parts that have already been cast or forged.

3. Micro-Machining: In industries like watchmaking or medical implants where the tools are tiny and the precision requirements are extreme.

When to Choose a Turret Lathe

1. Complex Part Geometries: When a part requires internal boring, external threading, and cross-drilling all in one setup.

2. Heavy-Duty Cutting: When removing large amounts of material from tough alloys where a heavy turret provides better damping.

3. Frequent Job Changes: For shops that run small batches (50-500 pieces) and need to change setups quickly without worrying about tool interference.

Regardless of the system you choose, the key to success lies in the details of the setup. Proper calibration, such as ensuring the proper turret center height, remains the most critical factor in achieving a high-quality surface finish and extending the life of your cutting tools.

Conclusion

In the debate of gang tooling versus turret systems, there is no universal "winner," only the right tool for the specific job. Gang tooling provides the raw speed and mechanical simplicity required for high-volume, small-part manufacturing. It is a specialized solution for those who prioritize cycle time and precision above all else.

Conversely, the CNC turret lathe stands as the workhorse of the modern machine shop. Its ability to hold a large library of tools and handle varied diameters makes it the most flexible investment for businesses looking to grow. By understanding the mechanical strengths and maintenance needs of each—and utilizing advanced options like double spindle turret lathes—manufacturers can ensure their production floor remains competitive in an increasingly demanding global market. Always remember that the foundation of CNC excellence is built on rigid setups and precise tool alignment, ensuring every part meets the highest standards of quality.
