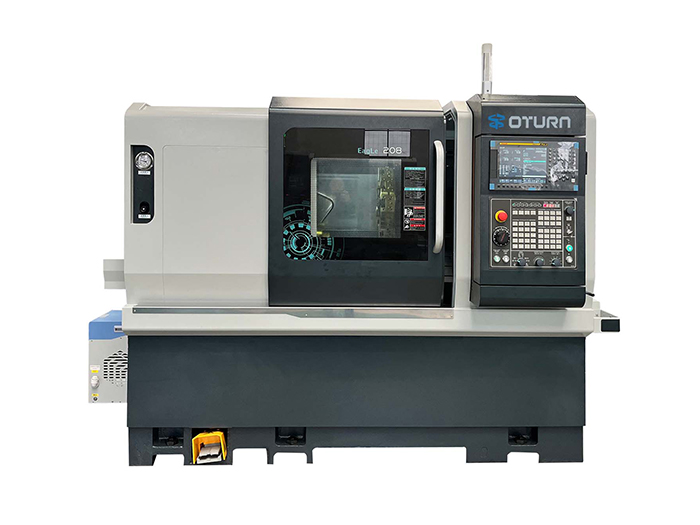

How To Repair Guideway Wear on Slant Bed CNC Lathe?

Slant guideway CNC lathes are key equipment in modern manufacturing, and their guideway wear directly affects the machine’s machining accuracy and service life. Guideway wear not only reduces machining quality but can also cause unstable machine operation, and in severe cases, lead to equipment failure. Therefore, timely and scientific repair of guideway wear is crucial to ensure machine performance and extend equipment life. This article will introduce several effective repair methods for guideway wear on slant guideway CNC lathes, combining traditional and modern techniques to help users choose suitable solutions and improve machine stability and machining efficiency.

I. Impact of Guideway Wear and Necessity of Repair

Guideway wear usually appears as surface scratches, pits, flattening, or even cracks. These defects cause a decline in guideway positioning accuracy and increased transmission resistance, which in turn affect machining precision and machine life. Severe wear may cause machine vibration, jamming, or damage to other critical components. Therefore, timely inspection and repair of guideway wear are fundamental to maintaining efficient and stable CNC machine operation.

II. Traditional Repair Methods

1. Arc Welding Repair

Arc welding is a common guideway repair technique that uses cast iron welding rods to fill worn areas. This method is cost-effective and suitable for non-machining surfaces or hidden areas. However, arc welding repairs tend to produce cracks and hard spots, and the weld color differs significantly from the base material, making subsequent machining difficult and limiting its application.

2. Surfacing Welding

Surfacing welding involves preheating the guideway surface, spraying welding powder, and heating it to form a smooth new layer. This method provides good machinability and repair quality but involves complex procedures, long preheating and heating times, and high thermal stress, which can cause cracks. The color difference with the base material is also notable, so careful selection of application scenarios is necessary.

III. Modern Repair Methods

1. Cold Welding Machine Repair

Cold welding machine repair is an advanced technology that welds guideways at room temperature, avoiding cracks, hard spots, and annealing effects. The repaired surface is smooth, color-matched with the base material, and suitable for machining. It can be used for both machining and non-machining surfaces. Its drawback is lower efficiency when repairing large-area defects.

2. Polymer Material Repair

Polymer material repair is a simpler method where special polymer materials are applied to worn areas, cured, then ground and finished to restore precision. This method requires no complex equipment or processes and is suitable for lightly worn CNC turning center guideways. However, its durability and load capacity are limited, making it unsuitable for severe wear.

IV. Preparations and Precautions Before Repair

Thoroughly clean the worn area, removing oil, dirt, and impurities to ensure repair material or welding quality.

Scientifically assess the wear degree and select appropriate repair technology and materials.

Strictly follow process specifications during repair to avoid secondary damage.

Conduct precision inspection and performance testing after repair to ensure the guideway meets design requirements and the machine operates normally.

In summary, there are various repair methods for worn inclined guideways on CNC lathe. The appropriate method should be chosen based on the specific situation to ensure the machine’s accuracy and service life.
