How Does Balanced Turning Increase CNC Lathe Productivity by 80%?

In the competitive landscape of precision machining, manufacturers are under constant pressure to deliver higher volumes with tighter tolerances. Historically, many machine shops have relied on traditional single-turret lathe setups, which, while reliable for simple geometries, often hit a ceiling regarding throughput and efficiency. As complexity in parts increases, the bottleneck frequently shifts from the machine's speed to the limitations of serial processing—where one tool must complete its task before the next can begin.

The realization of an 80% increase in productivity through balanced turning is not merely a theoretical claim but a practical outcome of optimizing machine utilization. By utilizing a CNC Double Turret Lathe to perform simultaneous cutting from both sides of a workpiece, shops can effectively eliminate the wasted motion of single-turret cycles, double the material removal rate, and significantly reduce overall cycle time.

This transition requires a shift in mindset from sequential machining to parallel processing. By leveraging the advanced capabilities of a high-performance dual-spindle, dual-turret turning center, manufacturers can unlock latent machine capacity. In the sections that follow, we will dissect the mechanical principles of balanced turning, the dramatic impact on cycle time, and the methods for maintaining precision even during high-load operations.

Why Do Most Shops Use Only One Turret on Twin-Turret Lathes?

Most machine shops default to using only one turret on twin-turret machines due to a lack of specialized training, concerns regarding programming complexity, and the historical reliance on legacy single-turret manufacturing processes.

The reluctance to fully utilize both turrets often stems from the perceived risk of a "crash" and the initial programming overhead. Operators are frequently accustomed to the predictability of single-turret operations, where tool path collisions are easier to visualize and manage. In a traditional shop environment, the primary goal is often to minimize setup time for small batches, leading to a "keep it simple" approach that inherently limits machine potential.

Furthermore, many facilities lack the CAM software capabilities or the process engineering depth required to synchronize two independent turrets successfully. Synchronized machining requires precise timing and coordination; if one turret is delayed, the other might remain idle, negating the benefits of dual-tooling. Without a clear understanding of the machine’s kinematic capabilities, shops often view the second turret as an "extra" to be used for specialized secondary operations rather than as a primary production tool.

However, as competition increases, the cost of running a machine at 50% capacity becomes unsustainable. The industry is seeing a shift toward advanced automation and dual-turret utilization, necessitated by the need to lower the "cost per part." When users master the basics—such as proper turret center height adjustment—the operational stability required for synchronized work becomes much more attainable, clearing the path for true high-productivity manufacturing.

What Is Balanced Turning and How Does It Work?

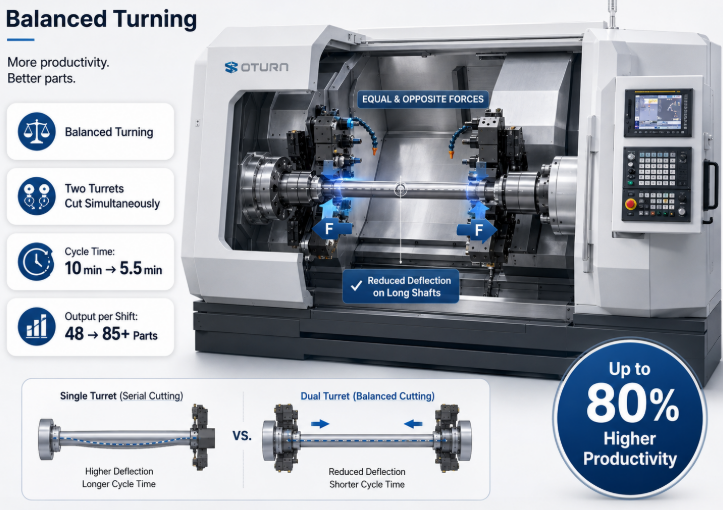

Balanced turning is a machining technique where two cutting tools act on a workpiece simultaneously, positioned directly opposite each other, to remove material while canceling out the radial cutting forces exerted on the spindle.

At its core, balanced turning turns the lathe into a force-neutral system. In a standard turning operation, a single tool pushes against the workpiece, causing it to deflect away from the tool. This deflection limits the depth of cut and feed rate, as excessive force results in dimensional inaccuracies or chatter. By placing a second tool at the same axial position on the opposite side of the part, the two tools exert equal and opposite forces against the workpiece.

The mechanics of this process are highly sophisticated. The CNC controller must synchronize the Z-axis and X-axis movements of both turrets to ensure that both tools follow the identical path at the exact same time. This synchronization effectively holds the workpiece in a state of "force equilibrium." Because the part is not being pushed against the chuck or the tailpiece with unbalanced force, it remains much more rigid, allowing for significantly more aggressive material removal.

The advantages of this approach include:

• Substantial reduction in tool pressure, which preserves tool life.

• Improved surface finish due to the reduction of resonant vibration (chatter).

• Faster material removal rates, as the combined engagement of two tools allows for greater depth of cut.

How Does Simultaneous Roughing Reduce Cycle Time Without Extra Hours?

Simultaneous roughing reduces cycle time by allowing two tools to engage the material at the same time, effectively halving the time required for bulk material removal compared to serial single-turret cycles.

When a shop implements balanced turning, they are fundamentally altering the "math" of the cycle. In a single-turret setup, the machine is constrained by the maximum depth of cut the material and tool can handle before deflection or heat becomes an issue. By splitting the load between two tools on a CNC Double Turret Lathe, the machine can handle larger depths of cut without exceeding the force limits of either tool.

The reduction in cycle time is not just additive; it is multiplicative. For instance, if a complex roughing profile takes 10 minutes on a single-turret lathe, a balanced turning setup can theoretically perform that same operation in approximately 5 to 6 minutes, accounting for minor ramp-up and synchronization overhead. Over the course of an 8-hour shift, this leads to a massive increase in the number of parts produced:

• Single Turret: 48 parts per shift (at 10 mins/part).

• Balanced Turning: 85+ parts per shift (at 5.5 mins/part).

This 80% improvement is critical for companies looking to maximize ROI on expensive capital equipment. By optimizing the turret center height adjustment, operators ensure that both tools are cutting exactly at the centerline, providing the geometric accuracy needed to support these high-speed roughing cycles without sacrificing part quality.

How Can You Control Deflection on Long Shafts Using Balanced Turning?

Balanced turning controls deflection on long, slender shafts by neutralizing the radial forces that typically cause the part to bend, essentially creating a "self-centering" effect during the cut.

When machining long shafts, the "length-to-diameter ratio" is the primary enemy of precision. As a single tool moves down the length of the shaft, the part acts like a cantilevered beam, bending away from the tool and causing the diameter to taper or oscillate. Usually, this requires the use of a steady rest or a follow rest, which adds setup time and physical interference issues.

Balanced turning eliminates the need for external supports in many cases because the two opposing tools act as a floating support system. As the tools progress along the Z-axis, they clamp the material between them with equal force. This effectively prevents the shaft from pushing away. The result is a consistent diameter across the entire length of the shaft, even at high feed rates.

Key considerations for controlling long shaft deflection include:

1. Tool lead angles must be identical to ensure forces are truly balanced.

2. Spindle RPM must be coordinated with the feed rates to manage harmonic vibrations.

3. Initial tool offset calibration must be verified to ensure force symmetry.

By mastering this technique, shops can take on long-shaft turning jobs that competitors might decline or struggle to produce, providing a significant market advantage.

Conclusion

Balanced turning is the definitive bridge between traditional machining and high-output, automated production. While many shops remain tethered to single-turret methodologies, the leap to utilizing both turrets on a CNC lathe provides an undeniable competitive edge. By neutralizing cutting forces, reducing cycle times through simultaneous processing, and improving the precision of long-part machining, manufacturers can achieve the 80% productivity gain necessary to thrive in today's market. As programming software advances and operator expertise grows, adopting balanced turning is no longer an optional upgrade; it is the new benchmark for excellence in the machining industry.
